H-beam connecting rod for Honda B16A VTEC 1.6L ,134.37mm lengthH-beam connecting rod for Honda B16A VTEC 1.6L ,134.37mm lengthH-beam connecting rod for Honda B16A VTEC 1.6L ,134.37mm length

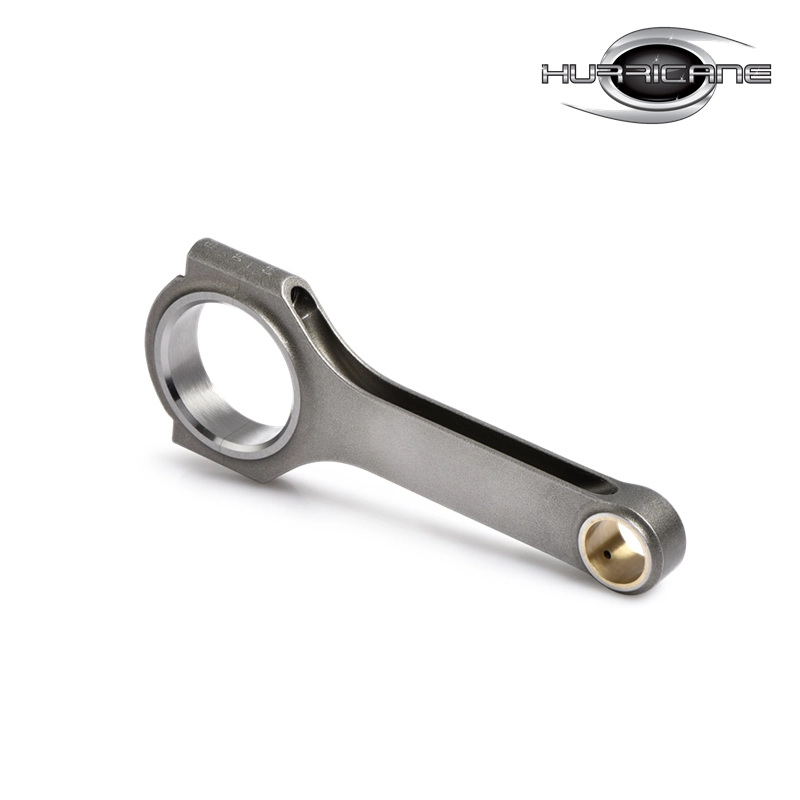

H-beam connecting rod for Honda B16A VTEC 1.6L ,134.37mm length

  • Competitive Price
  • Quality Assurance
  • 100% CNC machine
  • H beam Design
  • MOQ:100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords: Honda B16A Forged Conrods
  •           4340 Forged Steel B16A Connecting Rods
  •           Honda B16A H-beam Forged Steel Con Rods
  •           Honda/Acura B16A Engine Connecting Rods (H Beam)
  •           Forged Steel Connecting Rod Manufacturer in China
Brand: Hurricane
Engine: Honda B16A VTEC 1.6L
Part Type: Connecting Rods
Center to Center Length: 134.37mm/5.290"
Big End Bore Diameter: 48.01mm/1.890"
Big End Width: 23.75mm/0.935"
Small End Bore Diameter: 21.02mm /0.828"
Small End Width: 21.00mm/0.827"
Beam Style: H-beam
Quantity :4 piece per set

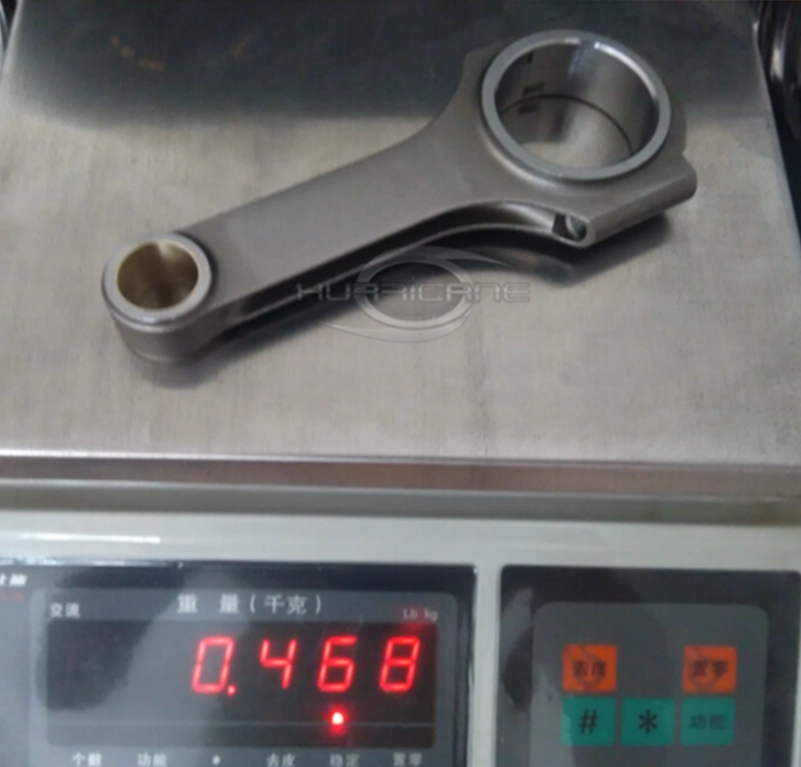

Approximate Connecting Rod Weight: 468g/piece
Advertised Horsepower Rating: 750hp
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Honda B16A Forged Conrods Additional Description: 

1). These H-beam forged connecting rod fits for Honda B16A engine, forged from 4340 chromoly steel , all surface are fully machined by advanced CNC machine .

2).Each rod is heat-treated, X-rayed, sonic-tested, magnafluxed, polished, shot-peened and honed.

3). Packaged in balanced per set: end to end +/- 1 gram

4). H-beam design combines weight saving and high strength

5). Dimensionally inspected to ensure extreme reliability

6). CNC machining for superior tight tolerances

We provide the widest selection of connecting rods for the Honda cars , you are welcome to click the link to visit more details :

 HONDA Prelude H22 VTEC 2.2L  H-beam  Forged H beam Honda Prelude H22 connecting rods set, 22mm pin hole
 Honda D16L  H-beam  Connecting rod H-beam for Honda D16L
 HONDA / ACURA S2000 F22C  X-beam  HONDA / ACURA S2000 F22C Rods
 Honda Prelude H22 VTEC 2.2L  I-beam  Honda Prelude H22 VTEC 2.2L 5.636" I beam connecting rods
 Honda L15A FIT/JAZZ  H-beam  H Beam Forged 4340 Conrods For Honda L15 L15a Connecting Rod
 Honda Integra LS CRV B18A B18B B20  X-beam  X Beam Rods Honda Integra LS CRV B18A B18B B20 5.394
 Honda S2000 F22C  H-beam  4340 Chrome Moly Connecting Rods for HONDA F22C, 2.2L S2000, Set of 4
 HONDA / ACURA B16  H-beam  Honda B16 H beam 4340 steel connecting rods,136mm length,20mm pin
 Honda Civic Si B16 B16A B16A2  H-beam  Hurricane H-Beam Rod Honda Civic Si B16 B16A B16A2
 Honda Acura K24  H-beam  Honda Acura K24 H-beam connecting rods
 Honda F20B  H-beam  H-beam Honda F20B Engine Connecting Rods Set , 5.709 length 145mm conrod
 Honda D16Z6  H-beam  Honda D16Z6 connecting rods H-beam forged 4340 steel
 Honda K24 K24A  I-beam  Honda / Acura K Series K24 TSX K24A K24Z Element CRV CONNECTING RODS
 Honda Jazz  I-beam  Hurricane Customs Honda Jazz Rods and Honda FIT Connecting Rods on Sale
 Honda D16A  H-beam  4340 Connecting rod H-beam for Honda D16A
 Honda K20A3  H-beam  Steel forged Connecting Rod Honda K20A3 138.51mm /5.453" rod length
 HONDA F22/H23  H-beam  4340 H-beam Honda F22/H23 connecting rods with 22mm pin, set of 4

FAQ:

Q: Do you offer OVERSIZED RODS ?

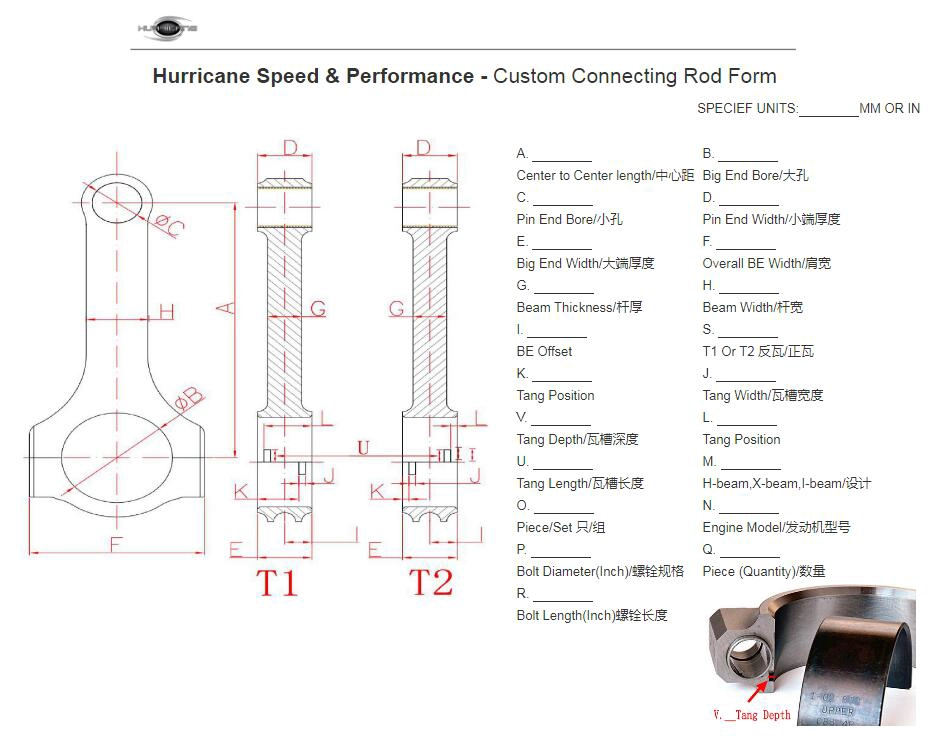

A: Yes, Rods, Those are larger than our forging either in length or width, can develop a new die to suit your requirements, or also can be made from billet material. Oversized rods are quoted per order and must be paid in advance. Welcome to leave message to our skilled staff. Besides oversized conencting rods, Hurricane also accept custom connecting rods order, if you are interested in custom rods, please feel free send detailed drawing, sample or detailed dimensions to us. Our custom connecting rod form as below: 


Q: Could you provide logo printing(private label) service on connecting rods ?

Yes , we can laser logo on the rods, please don't hesitate to tell our skilled staff your request on lasering once order placed.
