H beam Honda Acura RSX 2.0 VTEC K20 K20A K20A2 connecting rods

H beam Honda Acura RSX 2.0 VTEC K20 K20A K20A2 connecting rods

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Honda K20 Connecting Rods
  •               Honda Acura RSX K20 K20A connecting rods
  •               Connecting Rods For Honda K20
  •               H-Beam Rods Honda K20
  •               Honda K20 139mm Connecting Rod

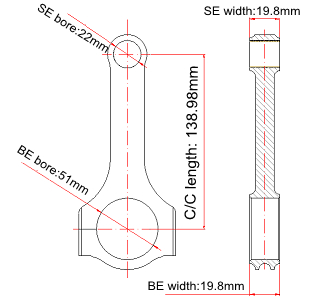

Honda K20 Connecting Rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 138.98mm/5.472"
 Big End Bore Diameter: 51mm/2.008"
 Big End Width: 19.8mm/0.7795"
 Small End Bore Diameter: 22mm /0.8661"
 Small End Width: 19.8mm/0.7795"
 Beam Style: H-beam

Honda K20 Connecting Rods Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  560g
 Advertised Horsepower Rating  550hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Honda K20 Connecting Rods Description


Connecting rods for Honda K20 made from 1-piece forgings, Each forging is x-rayed and magnafluxed to insure quality.

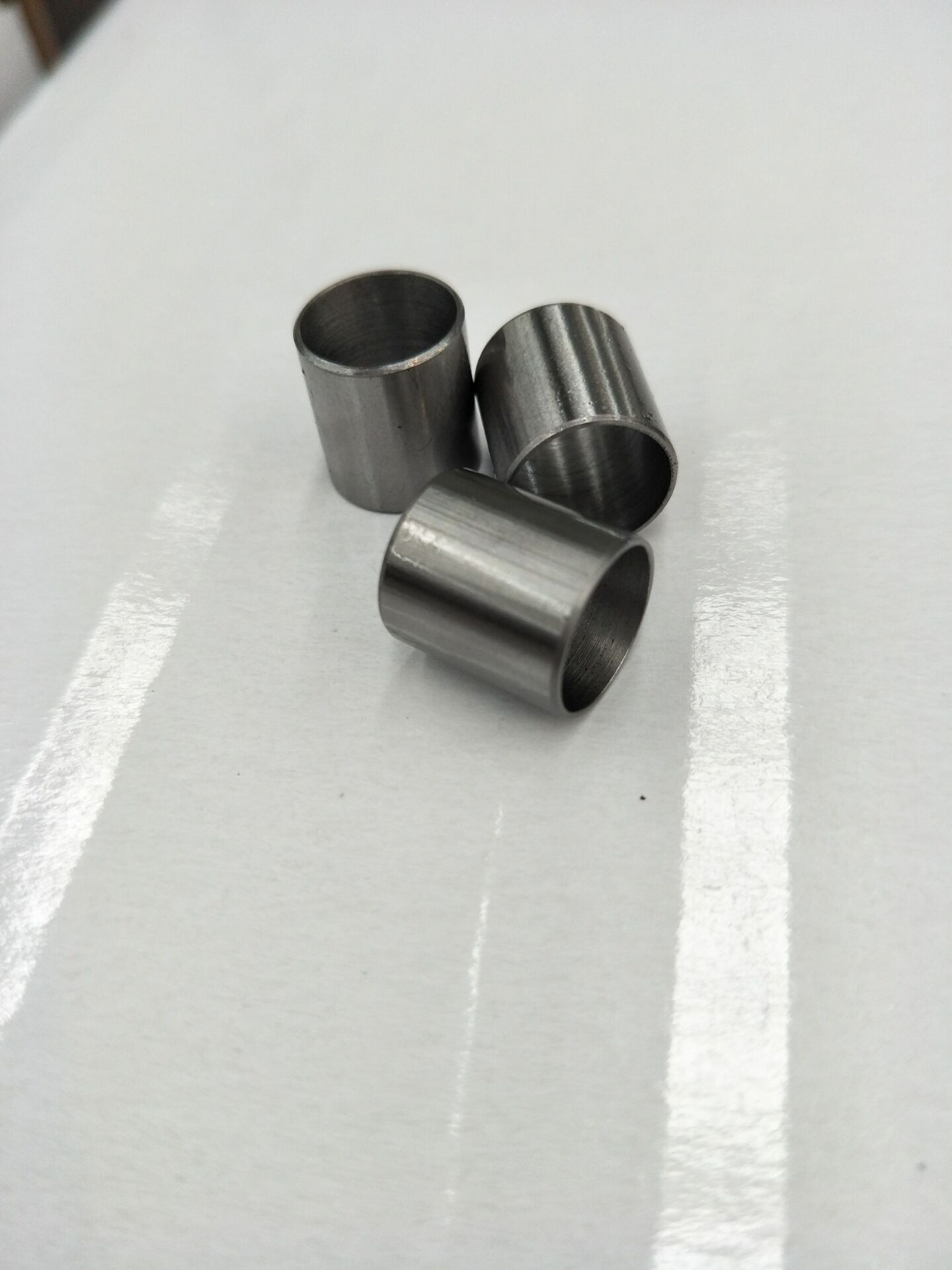

Precision alignment

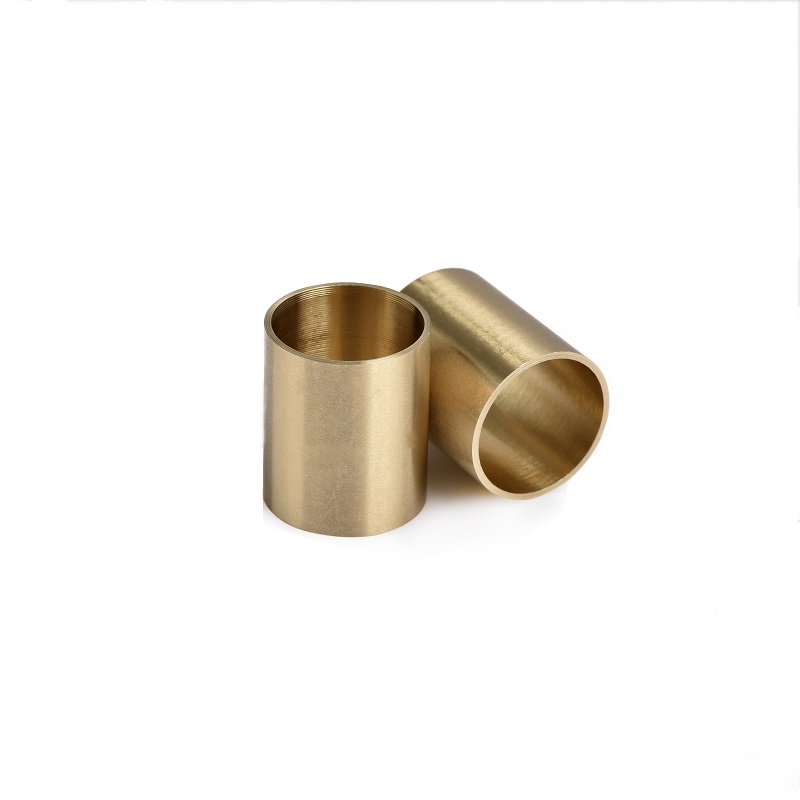

sleeves dowel are used to connect cap with rods, also for durability and precise cap location. All conrods including a wear resistant Bronze
wrist pin bushings for long wrist pin life. Each Sets are weight matched to +/- 1g.




H-Beam Rods Honda K20 Round shoulder design improving clearance.
For other design, please click Hurricane Connecting Rod Shoulder Design




Honda Acura RSX K20 K20A connecting rods H beam design provides higher compressive strength, horsepower around 550HP. If you want
I beam design for this engine application, please visit Honda Acura RSX 2.0 VTEC K20A2/K20A I-beam connecting rods,Set of 4
Hurricane offer so many performance connecting rods for Honda racing engines, like B,D,K,H,F and so on. you can click
Acura & Honda Rods catalogue to view each Honda connecting rods details, or click Hurricane_Rods_catalog.pdf to check all Honda connecting rods dimensions.

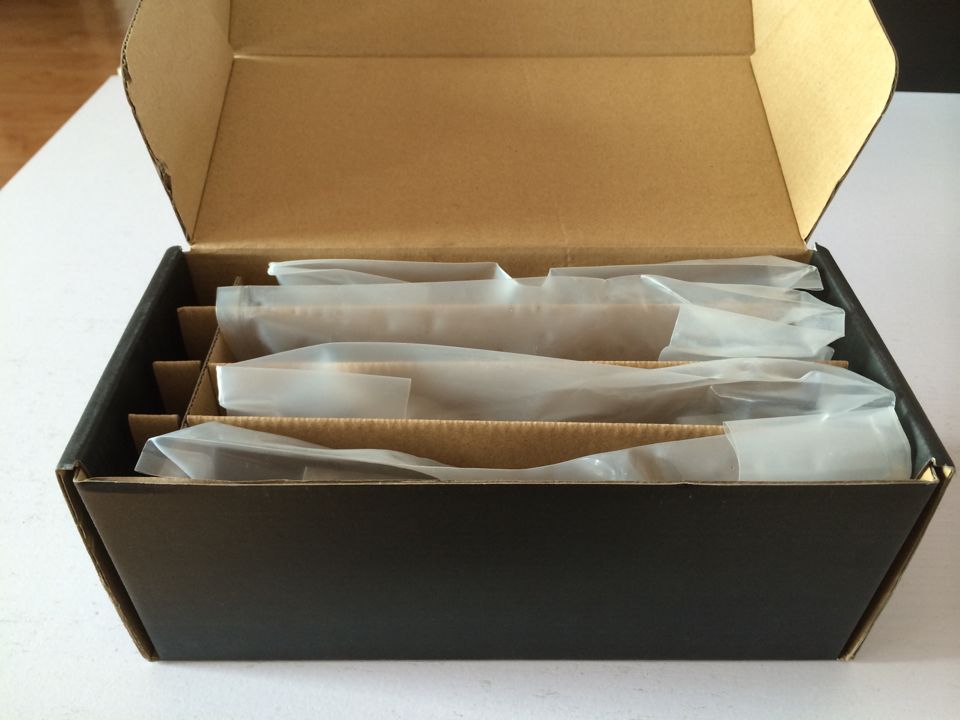

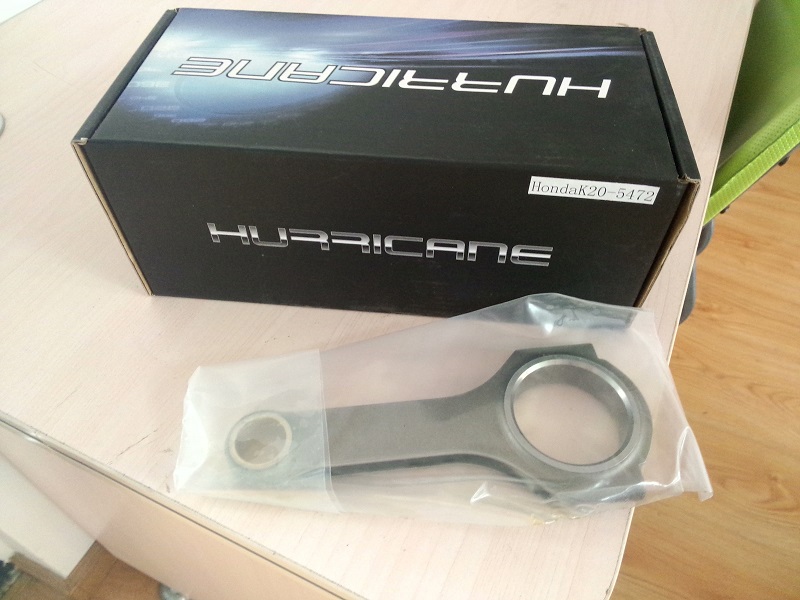

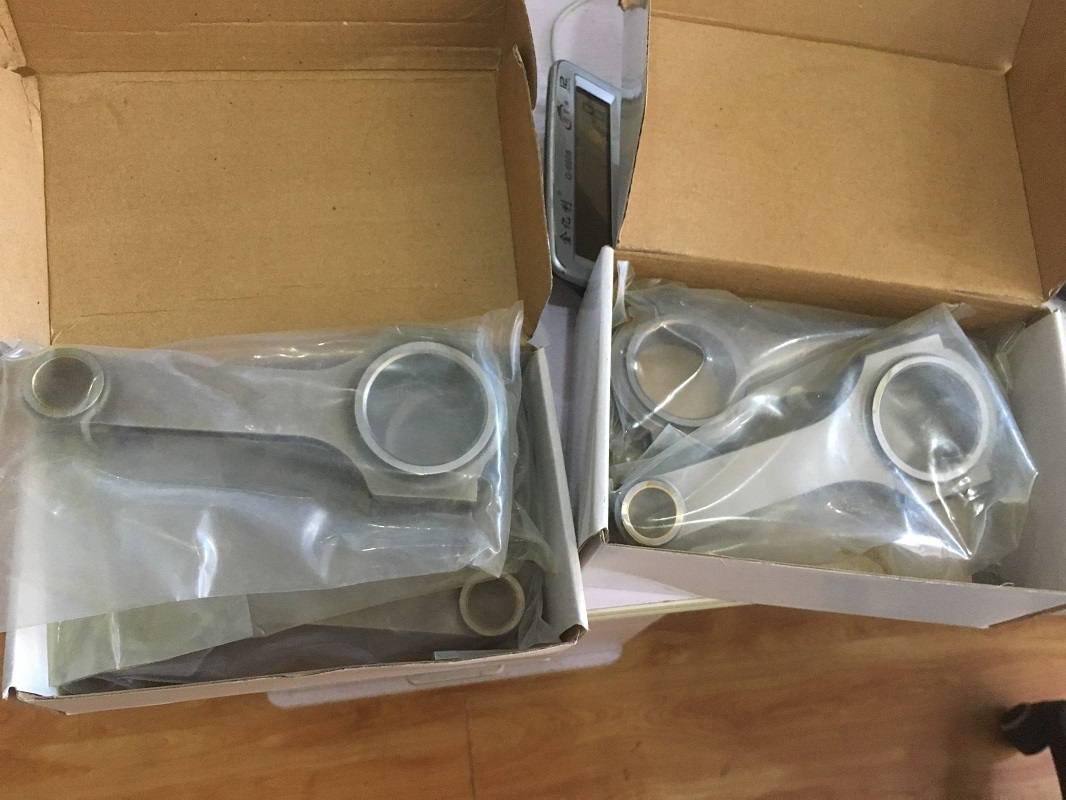

Honda K20 Connecting Rods Package

Retail order are accpetable at Hurricane Speed&Performance, if you are looking for performance rods for your own Honda K20 engine, then this set of rods will be a good choice for you.  leave us message here, contact our staff to confirm stock for you.

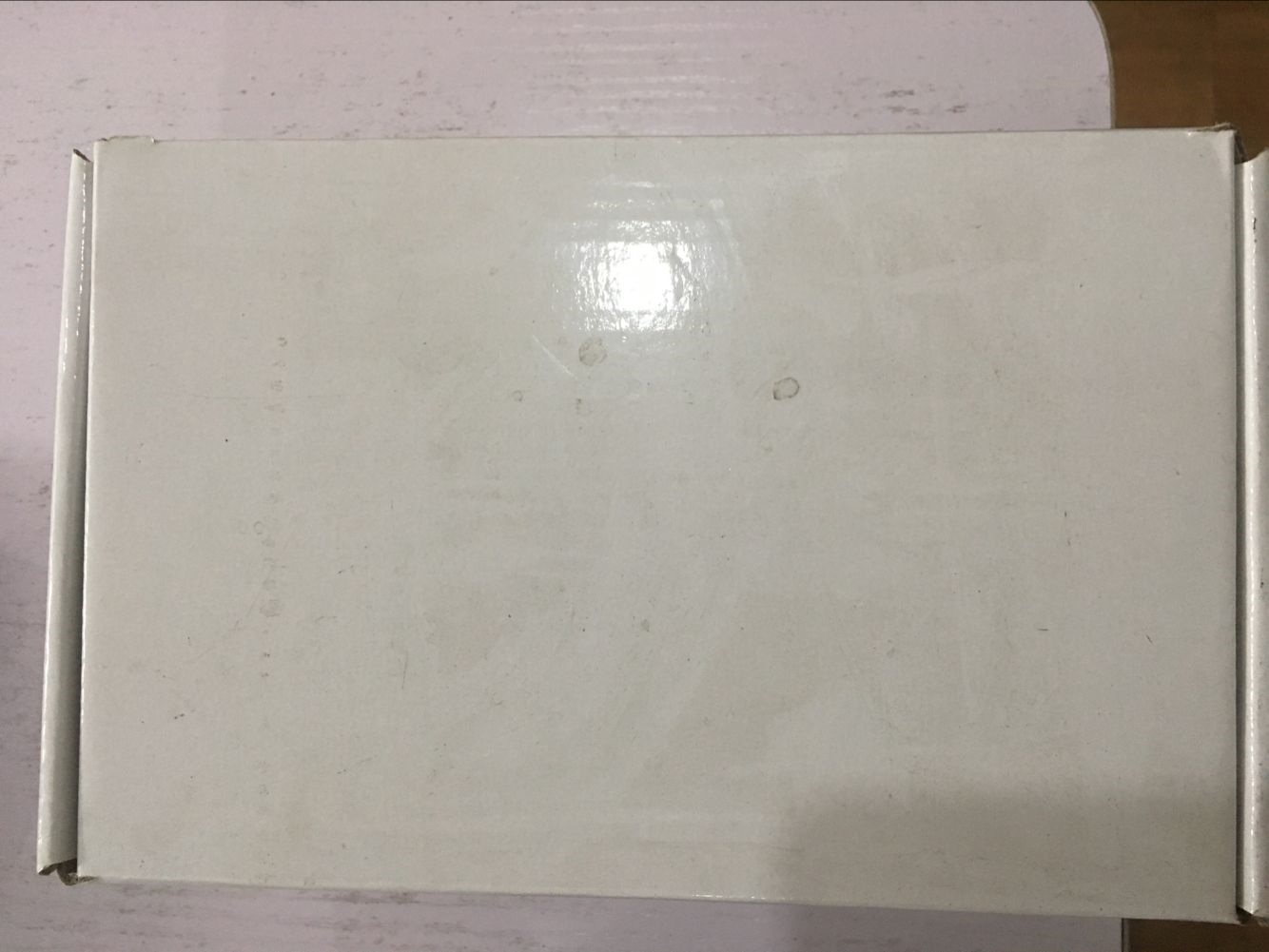

For batch orders, Hurricane will use normal white box to package your rods.




For any questions, please feel free to drop us message, we would love to hear from you. If you want to custom design the Honda K20 connecting rods, please fill in the Custom Connecting Rod Form
