Steel forged Connecting Rod Honda K20A3 138.51mm /5.453" rod length

  • Competitive Price
  • Quality Assurance
  • MOQ：100 pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Key Words:  K20A3 H-beam forged 4340 connecting rod
  •             4340 EN24 forged steel H-beam connecting rods k20a3
  •             5.453" length connecting rods Chinese factory
  •             Honda K20A3 5.453" forged connecting rods
  •             Honda K20A3 H beam connecting rods
  • Product Details
Brand: Hurricane
Engine: Honda K20A3
Part Type: Connecting Rods
Center to Center Length: 138.51mm/5.453"
Big End Bore Diameter: 48.01mm/1.890"
Big End Width: 19.81mm/0.780"
Small End Bore Diameter: 22.02mm /0.867"
Small End Width: 22.86mm/0.900"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Quantity: 4 pieces per set
Approximate Connecting Rod Weight: 460g/piece
Advertised Horsepower Rating: 750hp
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

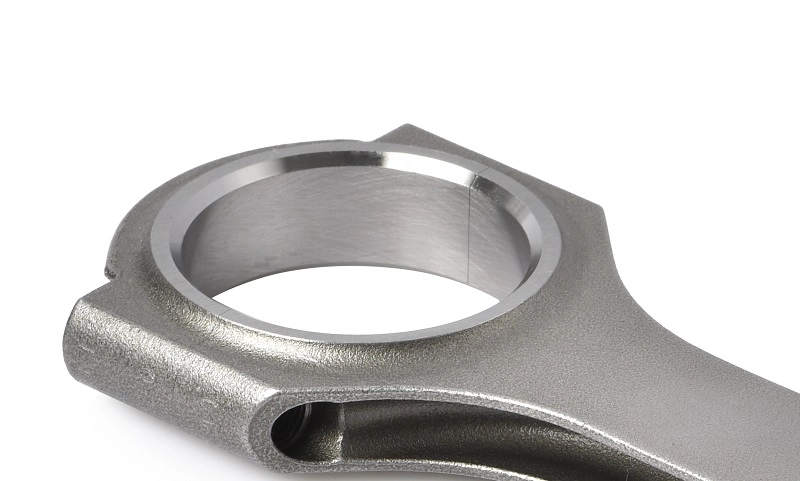

Honda K20A3 5.453" forged connecting rods Description

These Honda K20A3 forged connecting rods are created from high strength 4340 (EN24) steel and machined to accurate tolerances, it highly suits for 750hp performance engine , and all the surfaces are machined by special CNC machine , so it looks smooth and beautiful.

H-Beam Rods Honda K20 Round shoulder design improving clearance. For other design, please click Hurricane Connecting Rod Shoulder Design



Hurricane produce connecting rods for verious Honda performance engines , include HONDA Prelude H22 VTEC 2.2L, Honda D16A, Honda F23 Accord 2.0 , Honda Acura Integra GSR 1.8 VTEC B18C, Honda B16A VTEC 1.6L, Honda F20C/S2000 , Honda L15A FIT/JAZZ , HONDA / ACURA J35 ,Honda K24 , Honda F20B , Honda B18 etc . If you can not find the model or the design you need , please don’t hesitate to contact us , custom conrod can be made as your requirements .

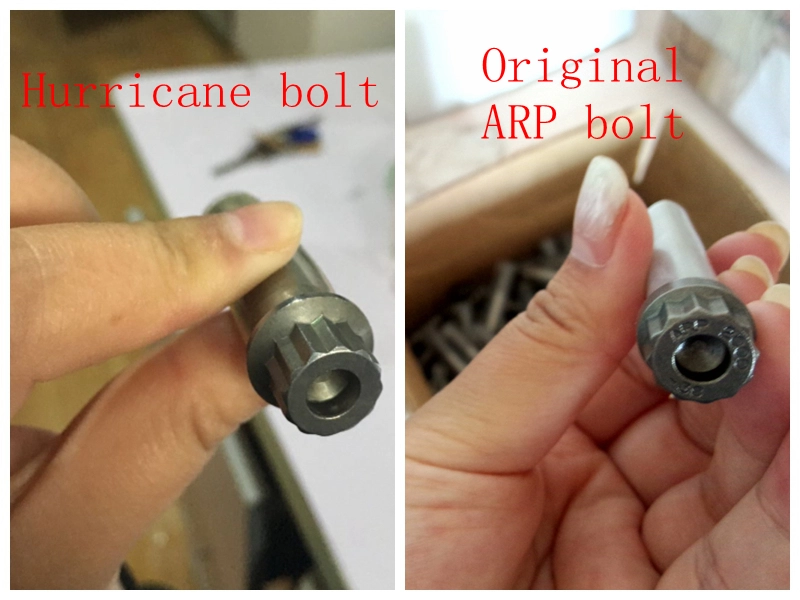

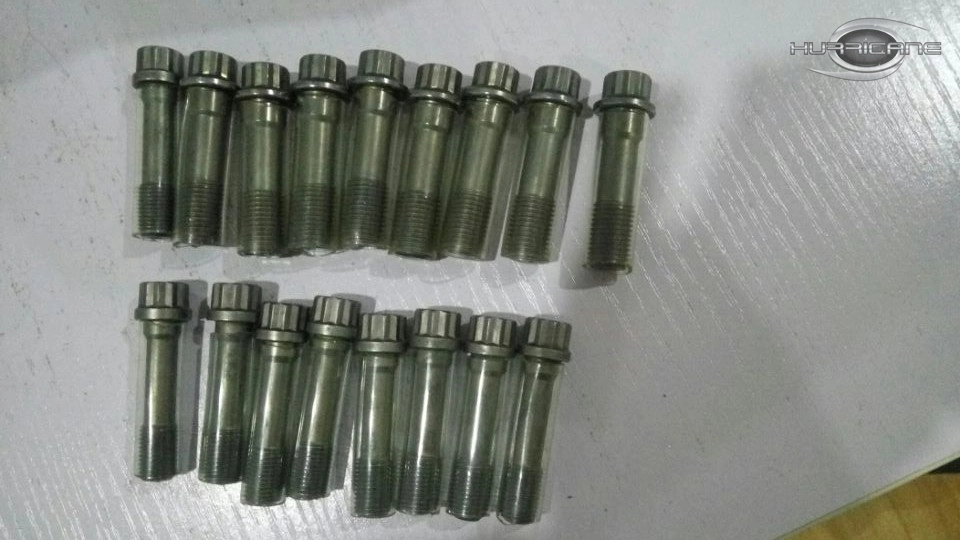

For bolts, Hurricane usually supply Copy ARP2000 bolts which can hold 200000-211829 psi , but the Copy bolts without "ARP" font , some pictures attached for reference as below :



3/8" and 7/16 "                                                       5/16"                                            

 

Please contact our experienced staff to learn about more details if you are interested in bolts .
