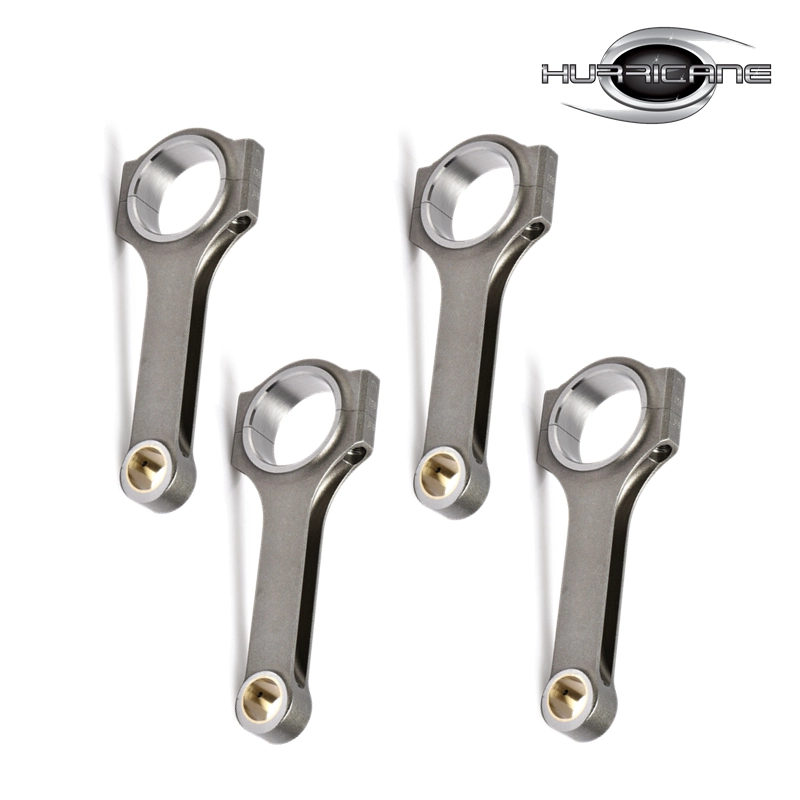

H Beam Forged 4340 Conrods For Honda L15 L15a Connecting Rod
- Forged 4340 steel
- Fully CNC Machine
- Competitive Price
- MOQ: 100pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords: Supply Honda connecting rods for Honda L15A FIT/JAZZ
- Honda L15A 1.5 Ltr 16V connecting rods
- L15A Fit/Jazz H beam Connecting Rods
- Honda L15A Fit/Jazz 139mm H-beam Connecting Rods
- High Performance Honda L15A rod set 4340 forged H-beam rods

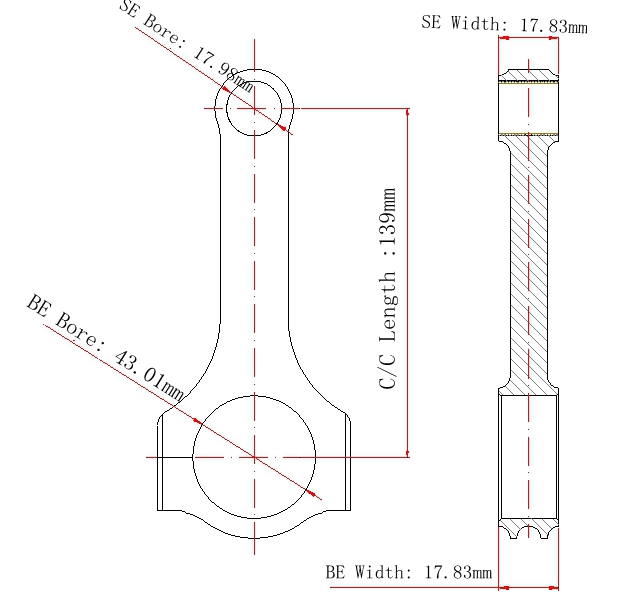

Honda L15A Connecting Rods Main Sizes
|Center to Center Length: 139mm/5.472"|
|Big End Bore Diameter: 43.01mm/1.693"|
|Big End Width: 17.83mm/0.702"|
|Small End Bore Diameter: 17.98mm /0.708"|
|Small End Width:17.83mm/0.702"|
|Beam Style: H-beam|
Honda L15A Fit/Jazz Connecting Rods Features
|Connecting Rod Bolt Diameter||3/8 "|
|Approximate Connecting Rod Weight||XXX|
|Advertised Horsepower Rating||550hp|
|Quantity||Sold as 4 pieces /set|
|Material||Forged 4340 steel|
|Connecting Rod Finish||Shot-peened, Polished|
|Pin||Bronze wrist pin bushings|
|Wrist Pin Style||Floating|
|Cap Retention Style||Cap screw|
|Weight Matched Set||Yes, Balanced +/- 1g|
|Private Label||Yes, available|
|Custom Design||Yes, accept|
Honda L15A 139mm H beam Connecting Rods Description

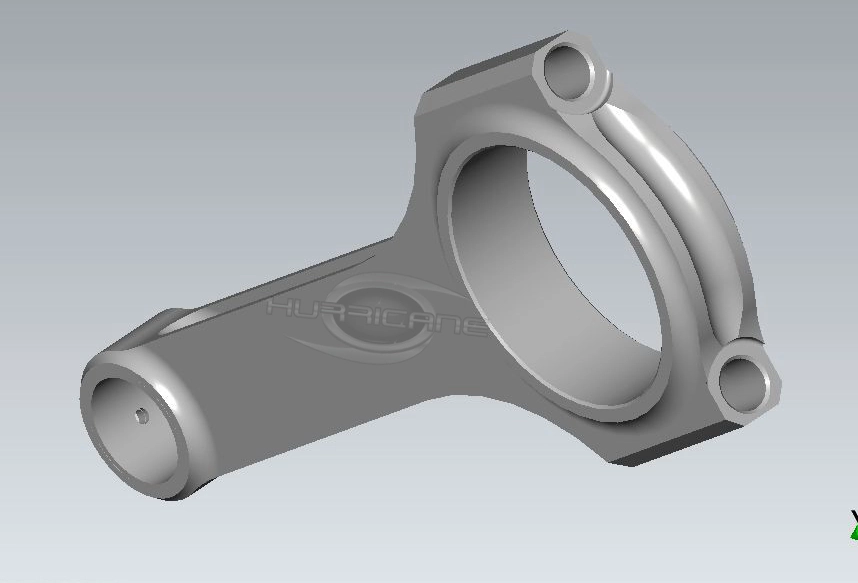

All Hurricane connecting rods designed by CAD software before production and engineers made use of FEA (Finite Element Analysis) to determine high-stress points and implemented features for wear reducing and strength improved .

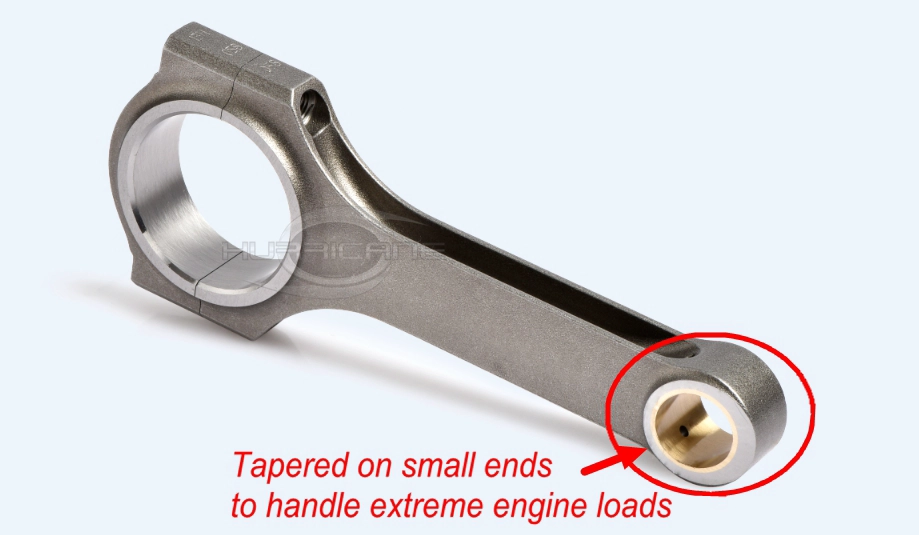

Same with other Hurricane rods, Honda L15A connecting rods are forged from 4340 (En24) steel too, and machined to H-beam shape for weight saving and higher strength . Each rod heat treated to HRC 34-38 and then shot peened for high fatigue life. Besides , all the small ends are bronze bushed for floating pins and big ends are fitted with high quality ARP fasteners with different specification bolts available. Also , each rod tapered on small ends to handle extreme engine loads and give increased clearance for fully boxed pistons.
Hurricane also produce H-beam shape connecting rods for Honda L15A FIT/JAZZ engines , welcome to send us inquiry if any interest .
Tag: honda forged rods ,honda h beam connecting rod ,HUR8-001Y5815 Honda L15A rod set ,connecting rod for honda
