Hurricane 4340 Chrome Moly Connecting Rods for HONDA F22C, 2.2L S2000, Set of 4
- Engine Model: Honda S2000 F22C
- Forged 4340 steel
- Fully CNC Machine
- Competitive Price
- Quality Assurance
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords : Honda F22C Connecting Rod
- F22C 4340 Forged Connecting Rods
- Honda F22C H-Beam Connecting Rods
- Honda Connecting Rods

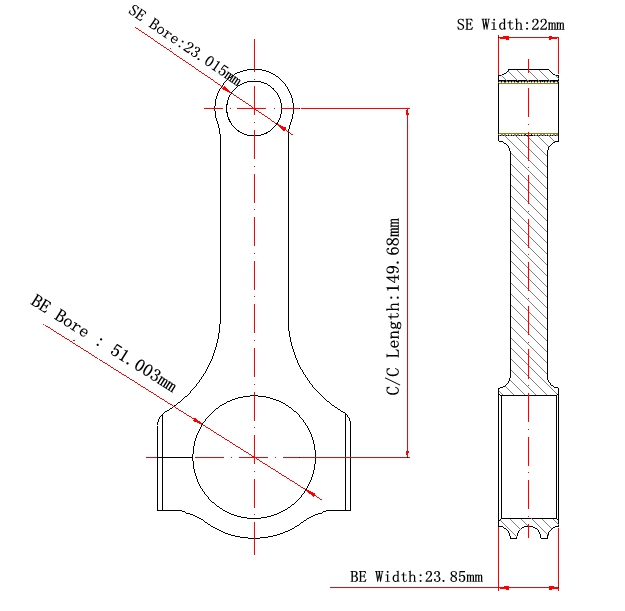

Honda F22C Connecting Rods Main Sizes
Brand: Hurricane
Center to Center Length: 149.68mm/5.893"
Big End Bore Diameter: 51.003mm/2.008"
Big End Width: 23.85mm/0.939"
Small End Bore Diameter: 23.015mm/0.906"
Small End Width: 22mm/0.866"
Beam Style: H-beam
F22C 4340 Forged Connecting Rods Features
Connecting Rod Bolt Diameter
3/8"
Approximate Connecting Rod Weight
XXX
Advertised Horsepower Rating
550hp
Quantity
Sold as 4 pieces per set
Material
Forged 4340 steel
Connecting Rod Finish
Shot-peened, Polished
Pin
Bronze wrist pin bushings
Wrist Pin Style
Floating
Cap Retention Style
Cap screw
Weight Matched Set
Yes, Balanced +/- 1g
Magnafluxed
Yes
Private Label
Yes, available
Custom design
Yes, accept
Honda F22C H-Beam Connecting Rods Description
1. CNC machined from 4340 EN24 aircraft chrome moly forged steel
2. H beam Design for weight saving
3. Multi-stage heat treated for maximum strength and fatigue life.
4. X-rayed, sonic tested and magnafluxed
5. Fully Machined and Shot Peened to relieve stress
6. Fitted with the bronzed bushing suitable for the floating piston pin
7.Optimal balancing for weight matched sets ± 1gram
Honda F22C Connecting Rod Applications:
2004–2009 Honda S2000 (F22C1) (North America)
2006–2009 Honda S2000 (Japan)

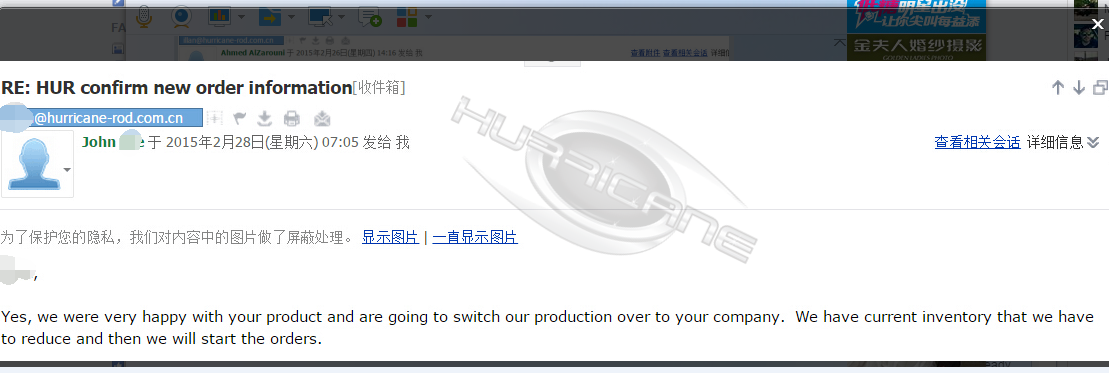

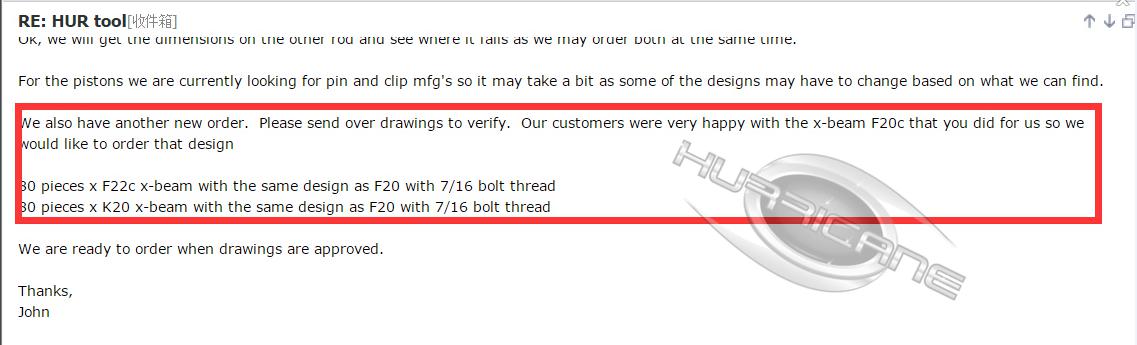

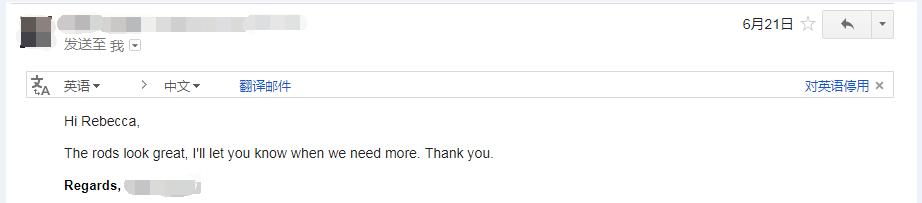

Customer Feedback For Hurricane Honda Rods
Hurricane Honda Series Conencting Rods
1.Honda / Acura K Series (K20 & K24) Connecting Rods - Custom conneting rods
2.H beam Honda Acura RSX 2.0 VTEC K20 K20A K20A2 connecting rods
3.4340 Chrome-Moly H-beam Connecting Rods Honda H23
4.H-beam Honda F20B Engine Connecting Rods Set , 5.709 length 145mm conrod
5.Hurricane Speed&Performance Honda D16Z6 connecting rods H-beam forged 4340 steel
6.Hurricane Customs Honda Jazz Rods and Honda FIT Connecting Rods on Sale
Hurricane factory produced high performance conrods for Honda B, D, F, H, J, K, L series engines. Welcome to gets details by views more connecting rods for Honda engines , if you can not find what you want on our website, please feel free mail to marketing@hurricane-rod.com.cn
2005 Honda S2000 F22C1 Engine
Note: picture from Wikipedia.
