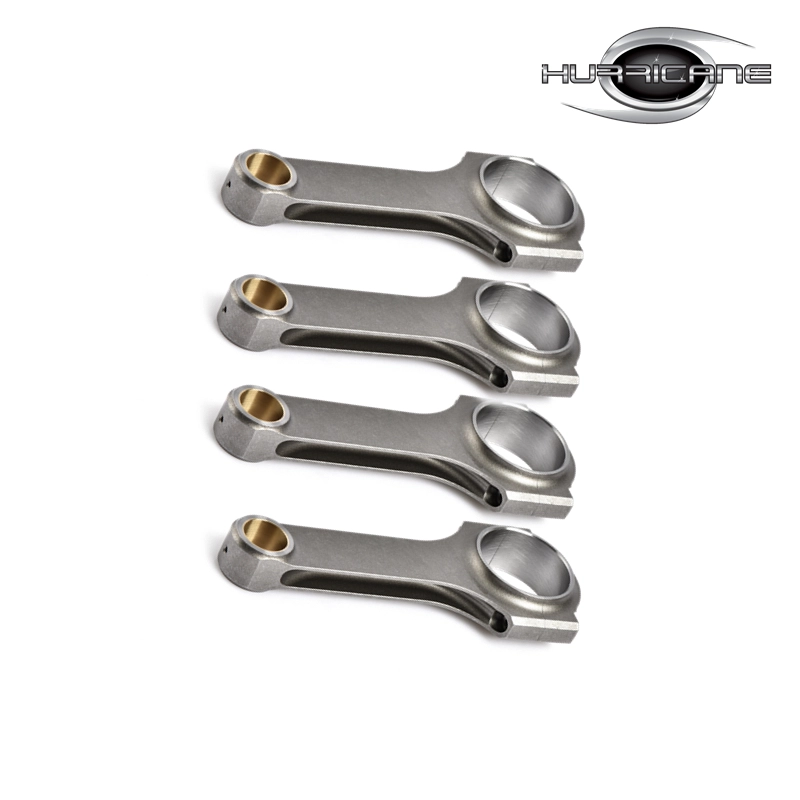

4340 H-beam Honda F22/H23 connecting rods with 22mm pin, set of 4

  • Competitive Price
  • Quality Assurance
  • MOQ：100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords:H-beam Connecting Rods For Honda F22 H23 Engine
  •          High Performance Honda Accord F22 H23 Engine Rods
  •          Honda forged 4340 steel connecting rods
  •          Honda F22/H23 H Beam Connecting Rods
  •          Honda Prelude, Accord H23 F22 connecting rods
  • Product Details
Brand: Hurricane
Engine: HONDA F22/H23
Part Type: Connecting Rods
Center to Center Length: 142mm/5.591"
Big End Bore Diameter: 51mm/2.008"
Big End Width: 23.75mm/0.935"
Small End Bore Diameter: 22mm /0.8661"
Small End Width: 23.88mm/0.9402"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 560g/piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept


Honda F22/H23 H Beam Connecting Rods Description

The connecting rod connects the piston to the camshaft, performing an incredibly important part of an internal combustion engine's overall process. Set of 4 forged 4340 Chrome Moly Connecting Rods for HONDA F22/H23 are designed to support 550 horsepower. Honda F22/H23 H Beam Connecting Rods fits for 1.4L I4 Honda Prelude, Accord and Rover.

High Performance Honda Accord F22 Engine Rods Festures:

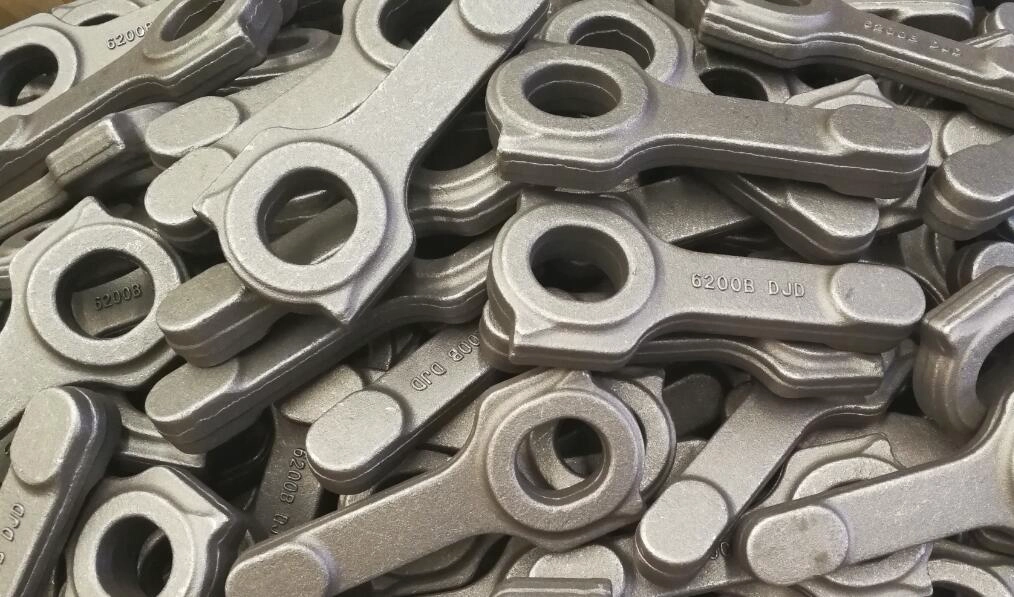

● Machined from One Piece 4340 Steel Raw Forgings to ensure maximum strength and durability.

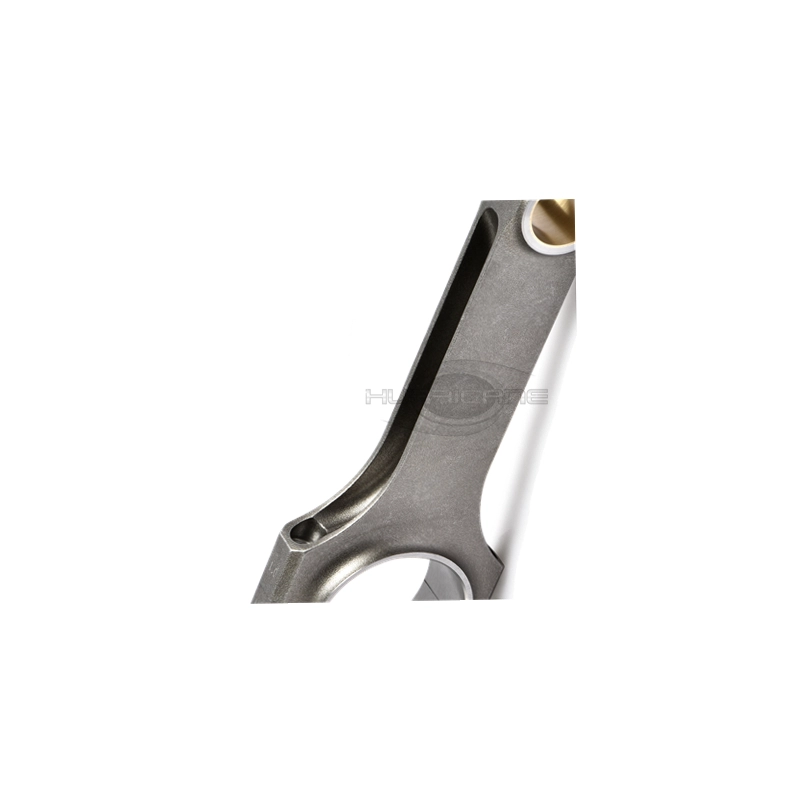

● Design: H-Beam design providing extended rigidity under vertical load. The best selling option when it comes to forged connecting rods.

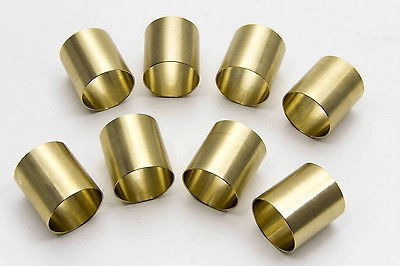

● Alum/Sil Bronze Bushing
All rod bushings are made from Aluminum-silicon-bronze alloy providing integrity and reliability, manufactured from QAL10-3-1.5, main chemistry:
Al (Aluminum): 8.5-10.0
MN (Manganese): 1 -2,0
Fe (IRON): 2.0-4.0
Cu (bronze)



Hurricane factory produced various kinds of performance honda connecting rods, like Honda B series, D series, F series, H series, J series, K series and more. Please kindly check the Acura and Honda Rod Page for general information. You may also find The Rod FAQ and Rod Info pages helpful.

1996 Honda Prelude Si Car 


Note: Picture from Wikipedia
