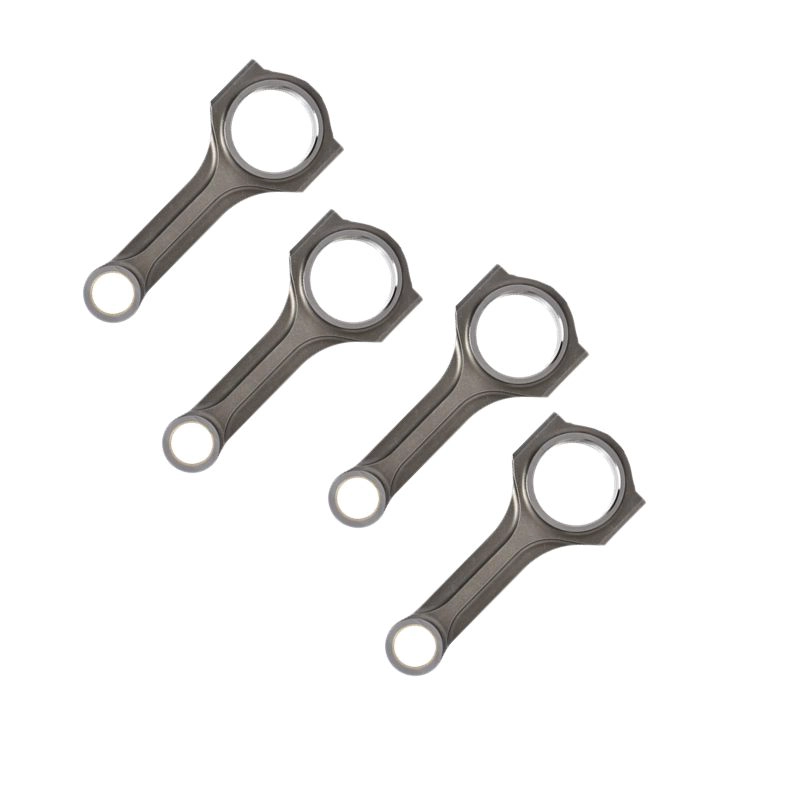

Toyota 3TC X-Beam connecting rods Hurricane Rods

Toyota 3TC X-Beam connecting rods Hurricane Rods

  • Material : Forged 4340 Steel
  • Bolts Threads : 3/8"
  • Beam Style: X-beam
  • For Race Engine
  • MOQ: 100 pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 80-90 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  Toyota 3TC Forged 4340 Conrods
  •             X-Beam Connecting Rods Toyota 3TC
  •             Toyota 3TC X-beam Connecting Rods

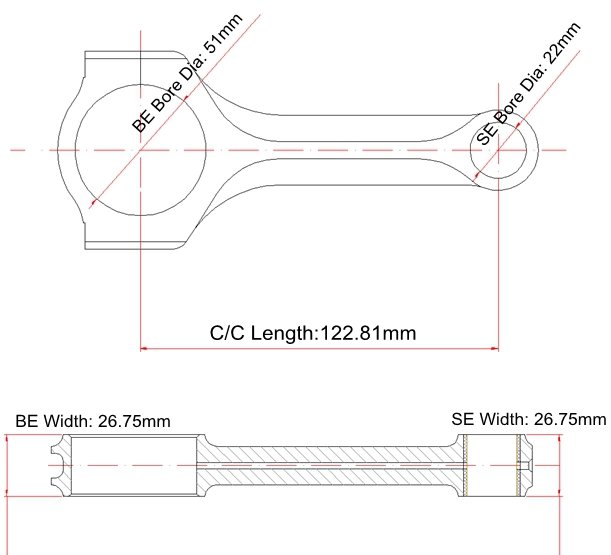

Toyota 3TC Forged 4340 Conrods Main Sizes


 Brand: Hurricane*
 Center to Center Length: 122.81mm/4.835"
 Big End Bore Diameter: 51.00mm/2.008"
 Big End Width: 26.75mm/1.053"
 Small End Bore Diameter: 22mm /0.866"
 Small End Width: 26.75mm/1.053"
 Beam Style: X-beam


Toyota 3TC X-beam Connecting Rods Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  600hp
 Quantity  Sold as 4 pieces per set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes, Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes, available
 Custom design  Yes, accept



X-Beam Connecting Rods Toyota 3TC Additional Description :

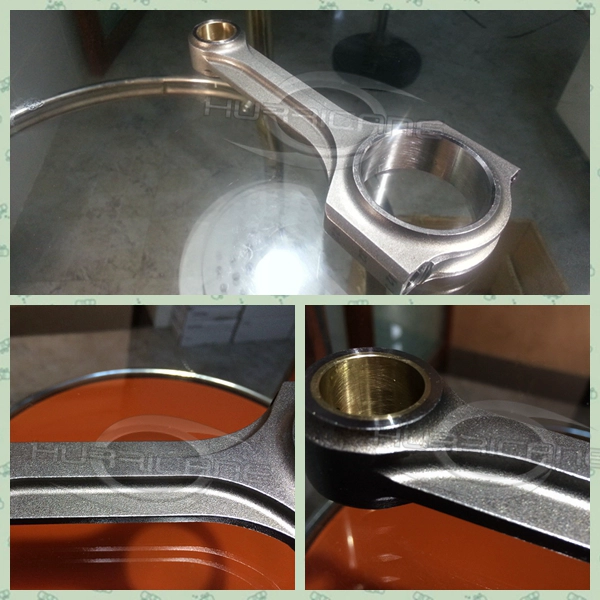

The Toyota 3TC X-Beam connecting rod is made from high quality forged aircraft 4340 steel. They are fully machined, heat treated with 34-38HRC, fully stress relieved, shot peened and magnafluxed. They can hold high load , it very suits for your high performance race engines .



The burrs and knives removed fully, every area is smooth and finished with high quality standard . 

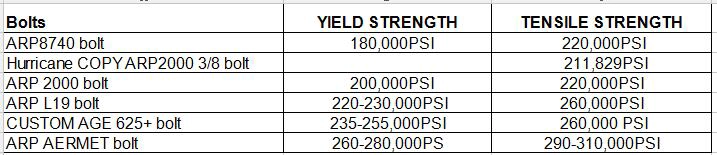

Hurricane supply copy ARP2000 bolts, the difference between Hurricane Copy ARP2000 bolts and Original ARP bolts as below :

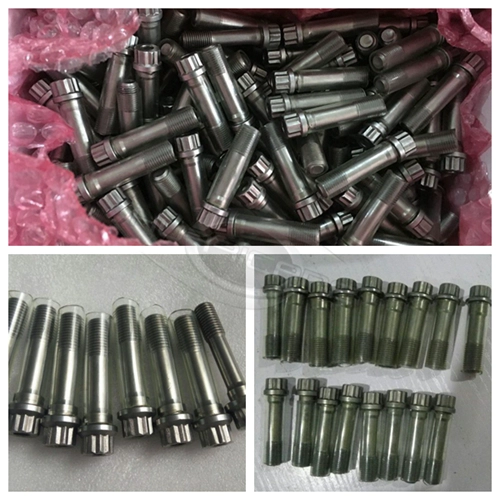

Hurricane copy ARP2000 bolts picture:



Hurricane also prodives high performance 4340 forged connecting rods for other Toyota racing applications , Such as :

Toyota 2JZGTE , H-beam , I-beam , X-beam

Toyota / Scion 1NZFE, H-beam , I-beam , X-beam

Toyota 1/2/3 UZFE, H-beam , I-beam , X-beam

Toyota 1KD 3.0L, H-beam , I-beam , X-beam

Toyota Scion FRS, H-beam

Toyota 1HD , H-beam , I-beam , X-beam



If you are interested in this connecting rod, please contact us online or send email tomarketing@hurricane-rod.com.cn . our team will guide you how to place the order.
