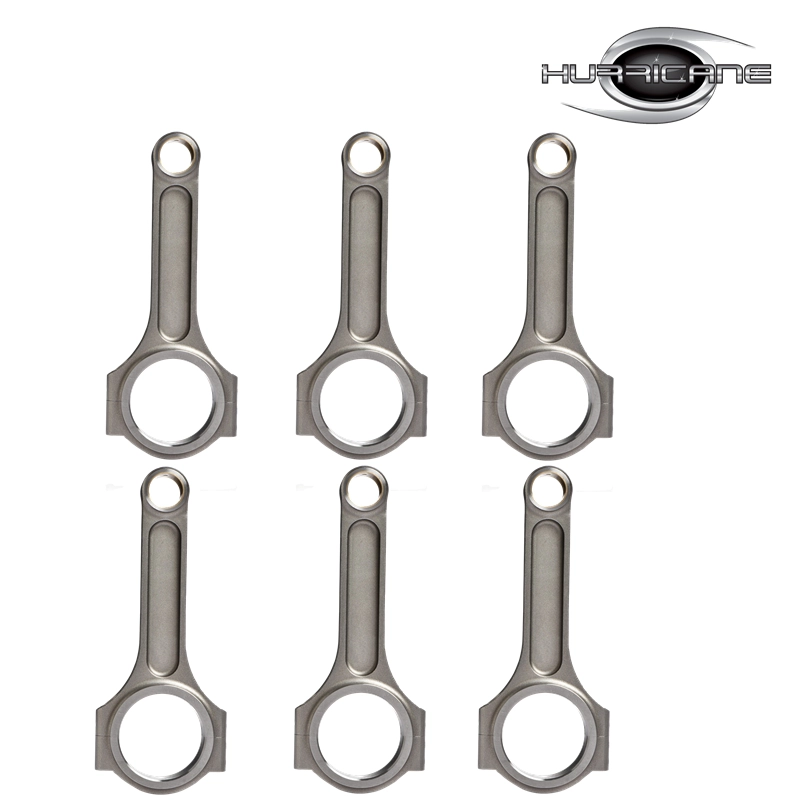

Toyota 1HD 147.2mm CC Length I-beam Diesel Conrods

Toyota 1HD 147.2mm CC Length I-beam Diesel Conrods

  • Toyota 1HD
  • Material : 4340 Steel
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Toyota 1HD 4340 Forged Connecting Rods
  •            Toyota 1HD I-beam Steel Connecting Rods
  •            Toyota 1HD 147.2mm Length Connecting Rod Rods Conrods

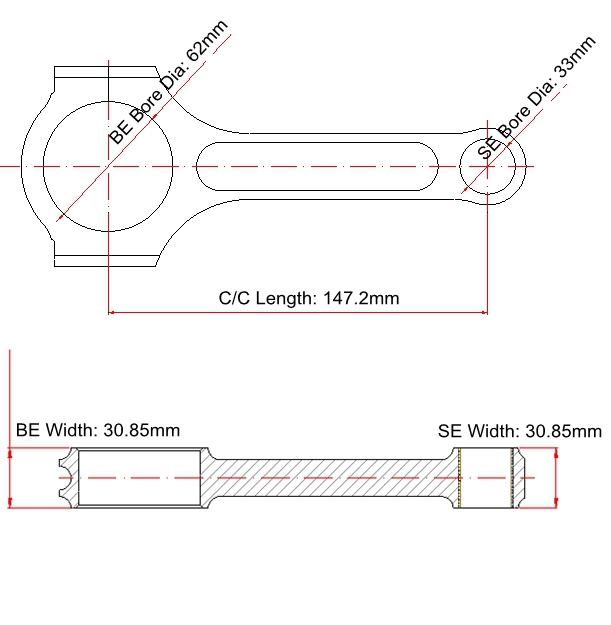

Toyota 1HD 5.795" I-beam Conrods Main Dimensions

 Brand: Hurricane
 Center to Center Length: 147.2mm/5.795"
 Big End Bore Diameter: 62mm/2.441"
 Big End Width: 30.85mm/1.215"
 Small End Bore Diameter: 33mm /1.299"
 Small End Width: 30.85mm/1.215"
 Beam Style: I-beam

Toyota 1HD 5.795" I-beam Conrods Features

 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating 900hp
 Quantity  Sold as 6 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Additional Description :

1). MOQ: 100pcs per model

2). Hardness: 34-38HRC

3). X-rayed, sonic tested and magnafluxed

4). Fully CNC machined on all surfaces

5). Come with high quality bronzed bushing

6). Shot Peened

7). I-Beam Shape for increased strength

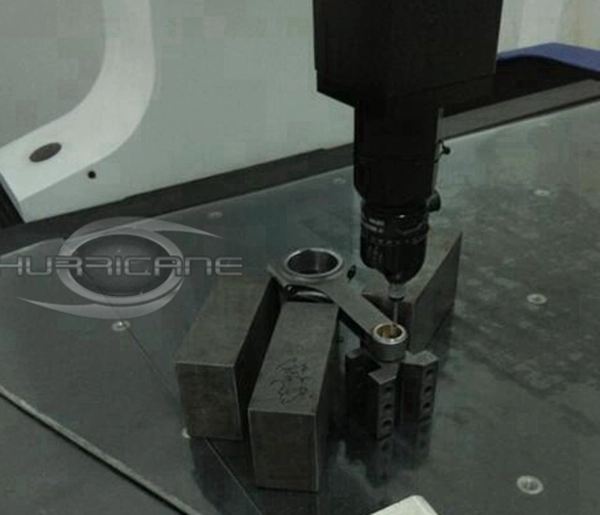

8). Dimensionally Inspected

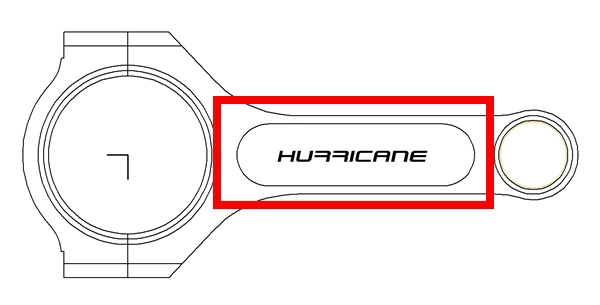

9). Logo printing avaivable

10). Packing Picture :

Hurricane makes 4340 billet and forged connecting rods for popular racing applications since 2000, providing over 200 different connecting rod models and designfora lot of differentAutomotiveandMotorcycleapplications, include Subaru , Honda, Nissan , Mitsubishi , Toyota , Benz,VW/Audi , Opel , BMW, GM LS , Ford , Dodge, Pontiac ,Chrysler,Isuzu,GMDuramax,Cummins, Volvo , Porsche , Harley-DivisionandYamahaetc.


Welcome to contact us if you can not find the one which you are looking for on our website .
