China Toyota Lexus Yaris Echo Vios Scion XB 1NZ 1NZFE 1.5L X Beam Forged Connecting Rods manufacturer

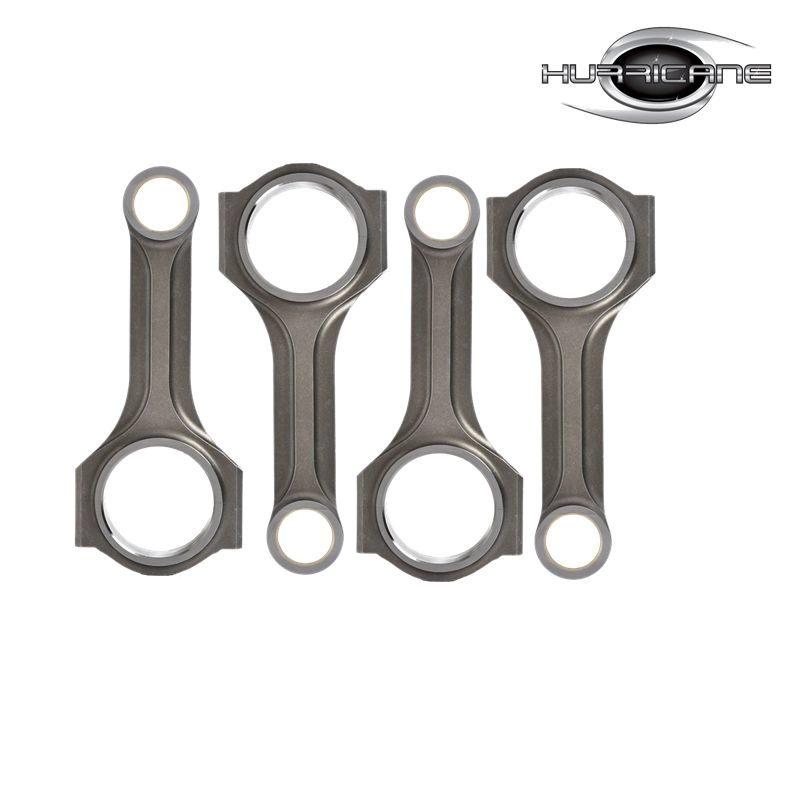

Toyota Lexus Yaris Echo Vios Scion XB 1NZ 1NZFE 1.5L X Beam Forged Connecting Rods

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 100 pieces, 25 sets
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  Toyota 1nz connecting rods
  •             Toyota 1NZ FE connecting rod set
  •             Toyota X beam connecting rods for 1NZ engine
  •             Toyota 1.5L VVT-I 1NZ 1NZ-FXE 1NZ-FE Connecting Rods
  •             Forged Connecting Rods for Toyota Lexus Yaris Echo Vios Scion XB 1NZFE 1.5L
  • Product Details

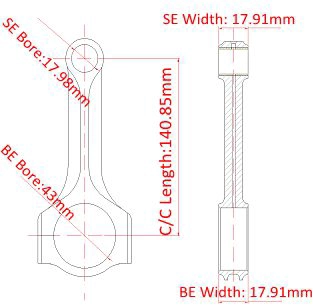

Toyota 1NZ Connecting Rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 140.85mm/5.545"
 Big End Bore Diameter: 43mm/1.693"
 Big End Width: 17.91mm/0.705"
 Small End Bore Diameter: 17.98mm /0.708"
 Small End Width: 17.91mm/0.705"
 Beam Style: X-beam


Toyota 1NZ FE Connecting Rod Set Engine Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  XXXg
 Advertised Horsepower Rating  700hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Toyota X beam Connecting Rods For 1NZ Engine Description

Toyota X beam connecting rods for 1NZ engine is designed for lightness and strength. Because the rod is made by CNC machine completely, it can design in the form with no futile, and can manufacture in suitable weight which does not need balancing each rods.



Forged Connecting Rods for Toyota Lexus Yaris Echo Vios Scion XB 1NZFE 1.5L are made from forged 4340 chrome moly steel, heat treated to increase tensile strength and are shot peened to increase fatigue life. Toyota 1.5L VVT-I 1NZ 1NZ-FXE 1NZ-FE Connecting Rods have a wear resistant bronze bushing for long wrist pin life and feature Hurricane 3/8 fasteners.

Toyota 1NZ FE Connecting Rod Set Application

 Engine   Vehicle Model
 1NZ-FXE  Toyota Prius (XW10 & XW20)
 Toyota Prius c/Toyota Aqua
 Toyota Yaris
 Toyota Corolla (Axio/Fielder)
 Toyota Sienta (2nd generation)
 1NZ-FXP  Toyota JPN Taxi (AP10)
 1NZ-FE  Toyota Vios/Belta
 Toyota Yaris/Echo
 Scion xA/Toyota ist
 Scion xB (1st generation)/Toyota bB (1st generation)
 Toyota Raum
 Toyota Porte
 Toyota Platz
 Toyota Auris
 Toyota Fun Cargo
 Toyota Premio
 Toyota Allion
 Toyota Corolla (Axio/Fielder, RunX, Allex)
 Toyota Sienta
 WiLL VS
 Toyota Probox
 Toyota Ractis
 Geely CK (Produced under license)
 Geely MK (Produced under license)
 Great Wall C10
 1NZ-FTE  Toyota Vios Turbo (Thailand)
 Toyota Vitz RS Turbo (Japan)
 Toyota Corolla Axio GT (Japan)

If you did not find the Toyota connecting rods you need, please contact us for assistance.

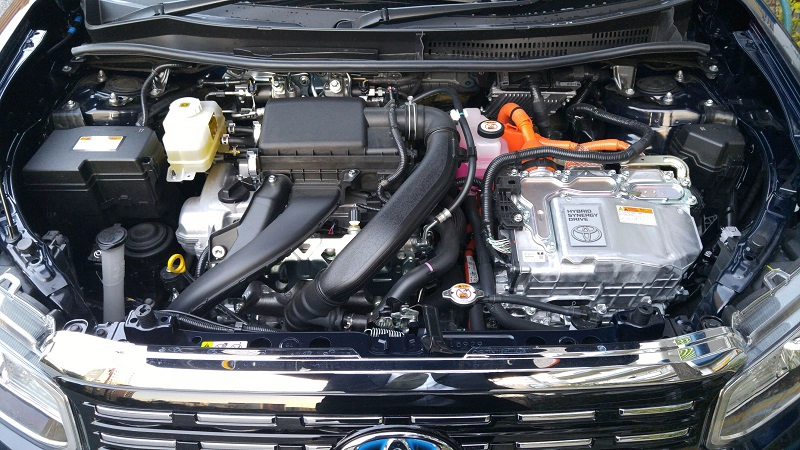

Toyota 1NZ-FXP Engine


Note: Picture from Wikipedia.
Hot Tags : forged 4340 steel connecting rod for toyota engine toyota rod HUR33-001H5545 Toyota SCION 1NZFE connecting rods Hurricane X beam connecting rods
