Set of 4,H beam connecting rods for Toyota / Scion 1NZFESet of 4,H beam connecting rods for Toyota / Scion 1NZFESet of 4,H beam connecting rods for Toyota / Scion 1NZFE

Set of 4,H beam connecting rods for Toyota / Scion 1NZFE

  • Competitive Price
  • Quality Assurance
  • MOQ:80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: Toyota YARIS 1NZ-FE 1.5L / Scion XB
Part Type: Connecting Rods
Center to Center Length: 140.84mm/5.545"
Big End Bore Diameter: 43mm/1.693"
Big End Width: 17.91mm/0.705"
Small End Bore Diameter: 17.98mm /0.708"
Small End Width: 17.91mm/0.705"
Beam Style: H-beam
Connecting Rod Bolt Diameter:3/8"
Approximate Connecting Rod Weight: ~g/piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

4pcs Connecting Rods for Toyota Corolla Vios Belta Yaris Echo 1NZFE 1NZ-FE engine Review

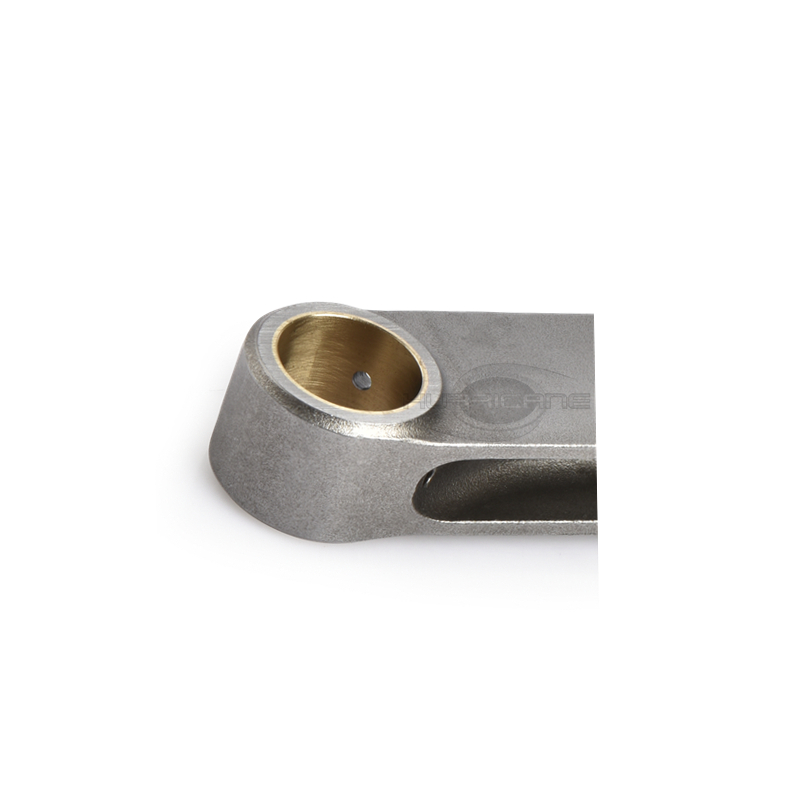

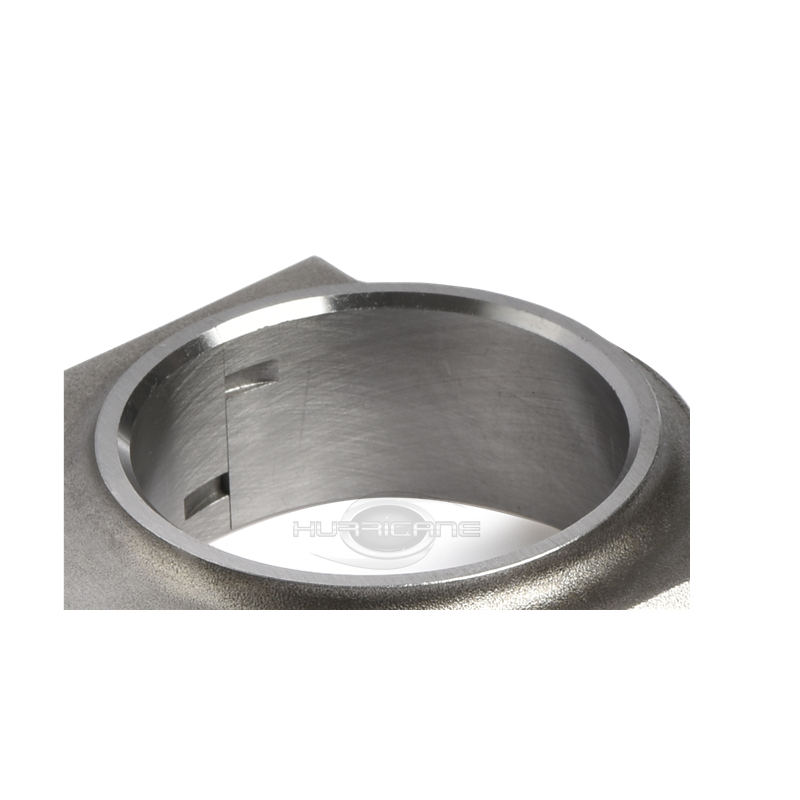

Hurricane China Toyota 1nz engine connecting rods are made from 4340 forged chrome moly steel, heat treated to increase tensile strength and are shot peened to increase fatigue life. All rods have a wear resistant bronze bushing for long wrist pin life and Connecting rods bolts hole match ARP2000 fasteners. special custom design requirements acceptable. If you do not find what you want through our catalog, please fill in Custom Connecting Rod Form, Hurricane have the ability to manufacture A-Z engine rods, and our skilled staff will contact you shortly.

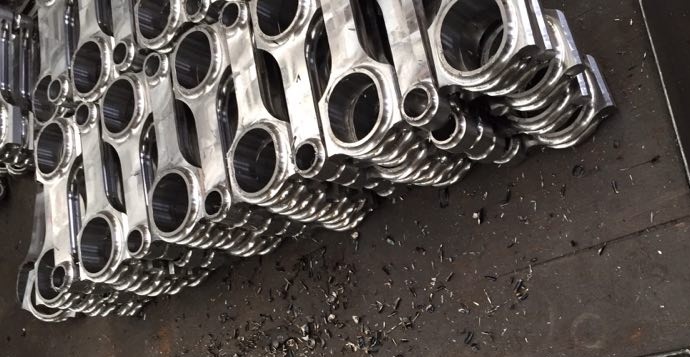

4pcs Connecting Rods for Toyota Corolla Vios Belta Yaris Echo 1NZFE 1NZ-FE engine are all CNC machined, We Follow a strict procedure for each progress to ensure a high level of quality is delivered. To check more hurricane factory made forged 4340 steel connecting rod for toyota, please click our toyota connecting rods catalog for more detailed information.

Toyota YARIS 1NZ-FE 1.5L Scion XB H-Beam Connecting Rods Applications ( 1.5L 1NZ-FE):
Toyota Yaris/Echo
Scion xA/ist
Scion xB (1st generation)/Toyota bB (1st generation)
Toyota Vios
Toyota Belta
Toyota Raum
Toyota Porte
Toyota Platz
Toyota Ist
Toyota Auris
Toyota Fun Cargo
Toyota Premio
Toyota Allion
Toyota Sienta
WiLL VS
Toyota Probox
Toyota Ractis
Toyota Corolla (Axio/Fielder, RunX, Allex)

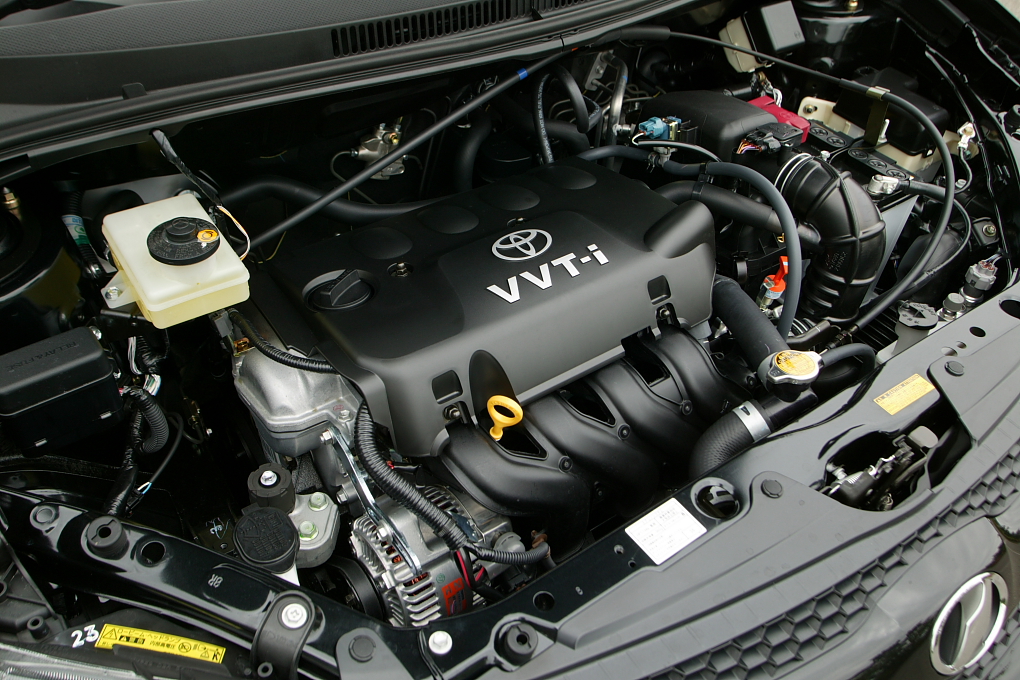

Toyota 1NZ Engine Car Picture



Note: Picture from Wikipedia.

Toyota YARIS Race Car Picture
