I-Beam Connecting Rods for Toyota 1UZ 1UZFE 146mm Rod Length

I-Beam Connecting Rods for Toyota 1UZ 1UZFE 146mm Rod Length

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8" ,1.6" Length
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Toyota 1UZFE forged rods
  •           4340 Steel Rod Set for 1UZ V8 engines
  •           146mm Engine Connecting Rod
  •           I-Beam Connecting Rods for Toyota 1UZFE 146mm Rod Length , 22mm Pin

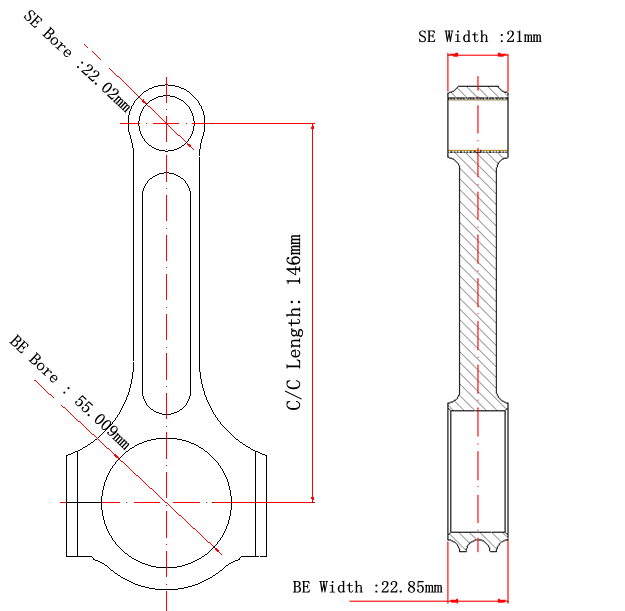

Toyota 1UZFE Connecting Rods Main Sizes

 Brand: Hurricane
 Center to Center Length: 146mm/5.748"
 Big End Bore Diameter: 55.009mm/2.166"
 Big End Width: 22.85mm/0.899"
 Small End Bore Diameter: 22.02mm /0.867"
 Small End Width: 21mm/0.827"
 Beam Style: I-beam

Toyota 1UZFE Connecting Rods Features

 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  492g/piece
 Advertised Horsepower Rating  1200hp
 Quantity  Sold as 8 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes,available
 Custom design  Yes, accept

Toyota 1UZFE Connecting Rods Description

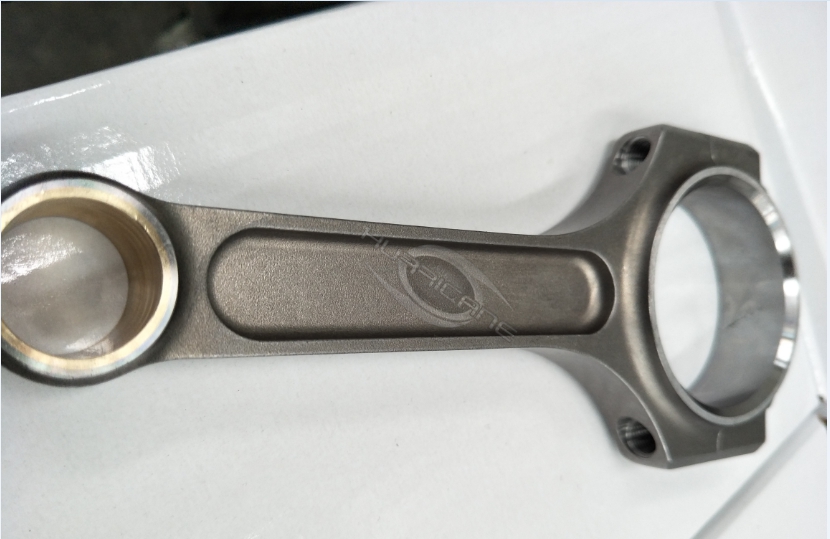

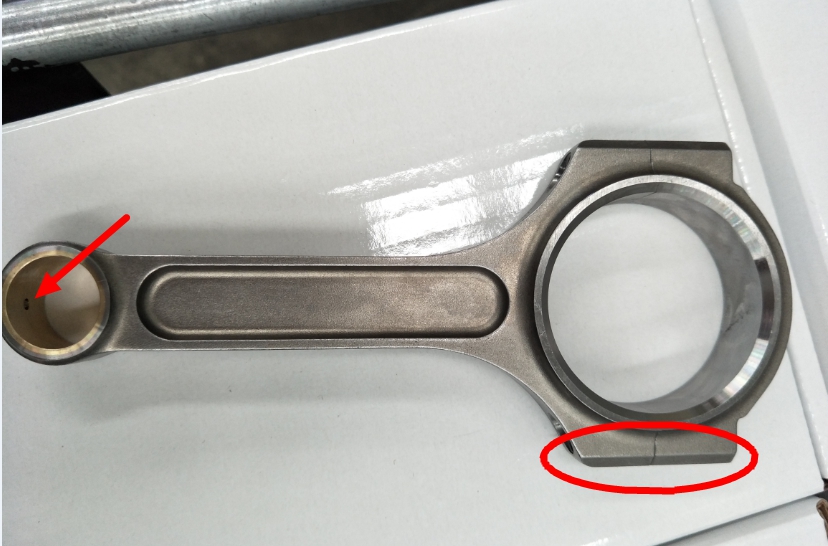

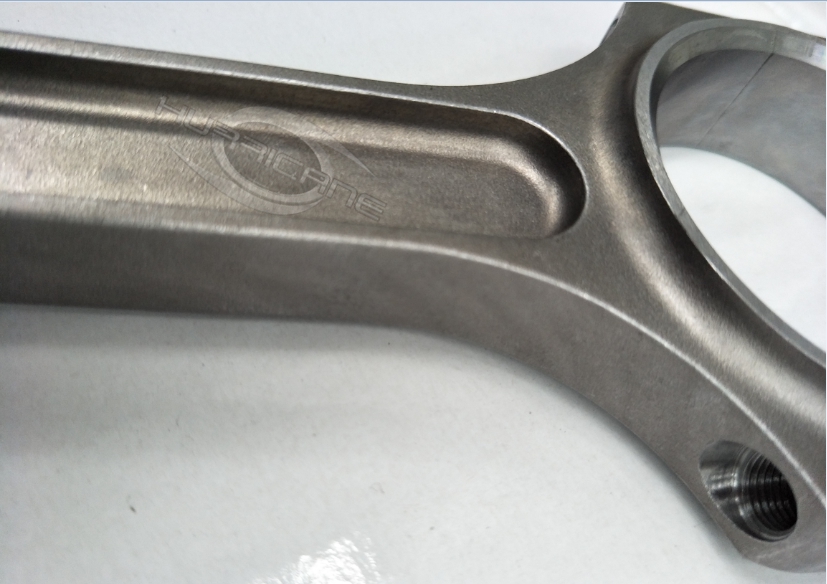

Hurricane 4340 I-Beam connecting rods, Made for Toyota V8 1UZFE engines, set of 8, CNC-machined from high performance 4340 forgings for superior strength. Each rod is heat-treated to 34-38HRC and then polished and fully shotpeened. All these rods balance weighted in sets and are available to come standard with ARP 2000 bolts rated at 220000 psi tensile strength. In addition , each 1uzfe I-beam rod machined with 3x45°shounder designs to make the rods looks better, also one oil hole at their small ends to provide additional lubrication and cooling. You can look at some 1uzfe rods pictures as below:

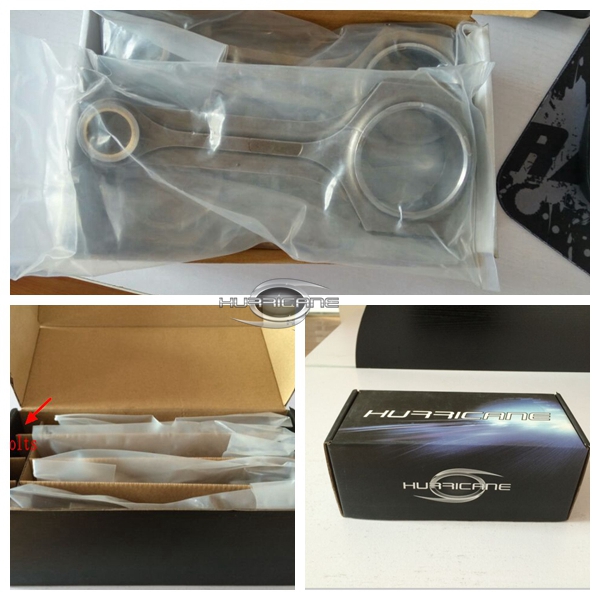

How do you package the rods ?

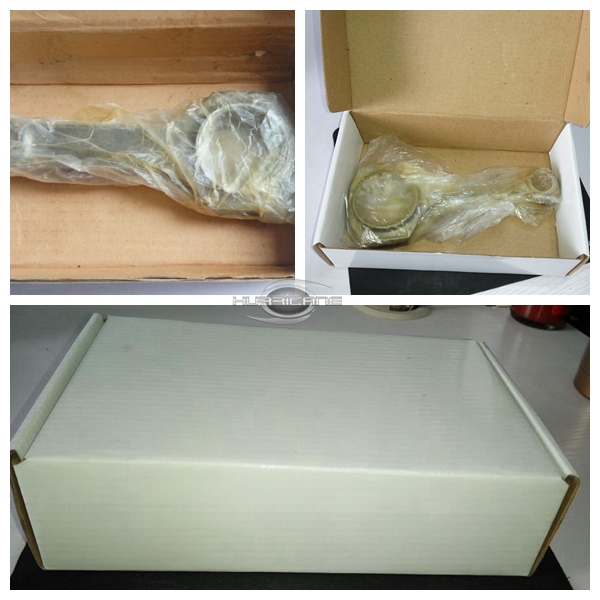

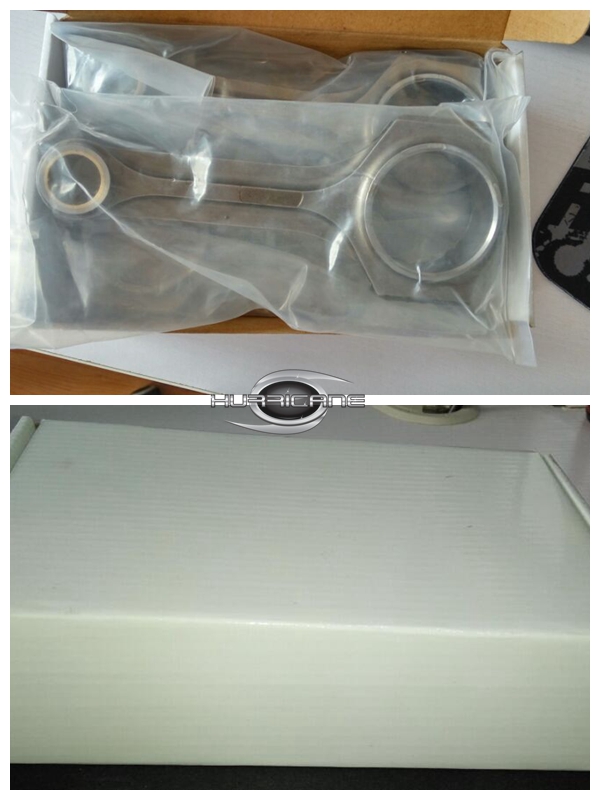

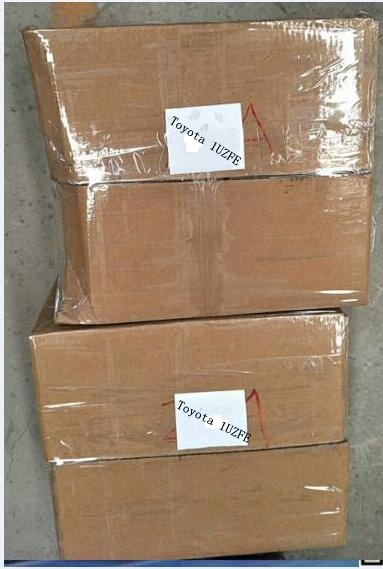

When the rods shipped by sea , we usually use iron box ; When the rods shipped by airexpress , we can offer 3 different packagings , please look at following pictures :


            Packaging 1                                            Packaging 2                                              Packaging 3



Hurricane also can make customize boxes , welcome to contact us to learn about more details .
