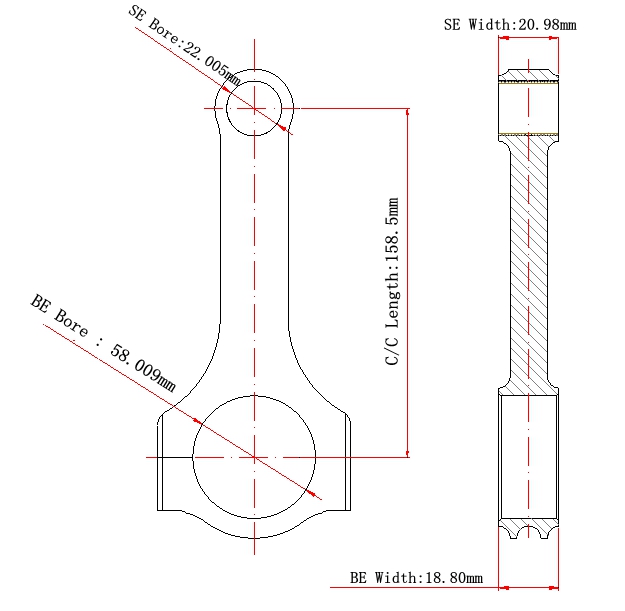

Honda J35 Connecting Rods Main Sizes
| Brand: Hurricane |  |
| Center to Center Length: 158.5mm/6.240" | |
| Big End Bore Diameter: 58.009mm/2.284" | |
| Big End Width:18.80mm/0.740" | |
| Small End Bore Diameter:22.005mm/0.866" | |
| Small End Width: 20.98mm/0.826" | |
| Beam Style: H-beam |
Honda J35 Connecting Rods Features
Connecting Rod Bolt Diameter
3/8"
Approximate Connecting Rod Weight
XXX
Advertised Horsepower Rating
800hp
Quantity
Sold as 6 pieces /set
Material
Forged 4340 steel
Connecting Rod Finish
Shot-peened, Polished
Pin
Bronze wrist pin bushings
Wrist Pin Style
Floating
Cap Retention Style
Cap screw
Weight Matched Set
Yes ,Balanced +/- 1g
Magnafluxed
Yes
Private Label
Yes ,available
Custom design
Custom design Yes, accept
Honda J35 Connecting Rods Description
1.Manufactured from high strength 4340 Chrome Moly Steel
2.Designed and fully processed by CNC machine
3.H-beam style for weight saving
4.100% X-rayed, sonic tested and magnafluxed to insure quality
5. All big and small ends are finished with SUNNEN honing machine
6. Small ends came with the bronzed bushing suitable for the floating piston pin
7. All surfaces shot peened and stress relieved
8.Packaged in balanced per set: end to end +/- 1 gram
Hurricane Connecting Rods FAQ
1. When would the product finish if i place order?
For Custom and Batch orders, if mould and blank avaliable,Connecting rod lead time: 60-70 days,Piston lead time:45-60 days, Forged half finish machine crankshaft lead time: 80-85 days, Billet finish machine crankshaft lead time: 90-95 days.
If not, then Developing New Mould: 1month for rods, cranks, pistons. Shipping by Air: 3-10 days,Shipping by Sea: 15-25 days
2. Will you do inspection on CNC machining processes?
Yes, For connecting rod, we will do blank dimension Inspection, Tolerance Inspection, Machining Precision Inspection and Balance Weight Inspection etc .
For pistons, we will do blank dimension Inspection, Tolerance Inspection, Machining Precision Inspection, Ellipticity Inspection and Piston Balance Weight Inspection etc.
