Forged 4340 Chromoly Connecting Rod Set, VW Journal 5.700 rod lengthForged 4340 Chromoly Connecting Rod Set, VW Journal 5.700 rod lengthForged 4340 Chromoly Connecting Rod Set, VW Journal 5.700 rod length

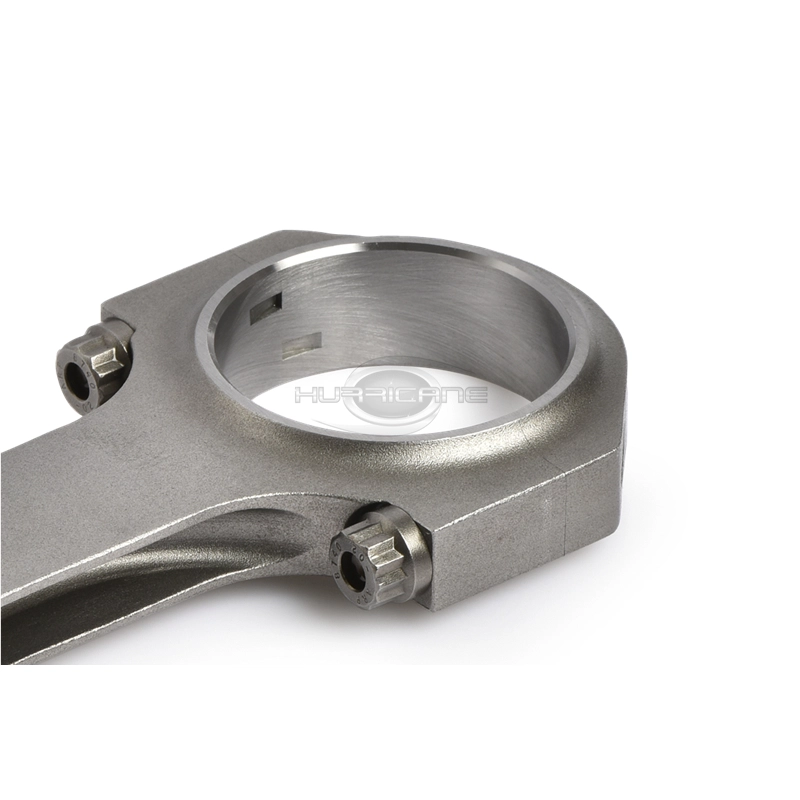

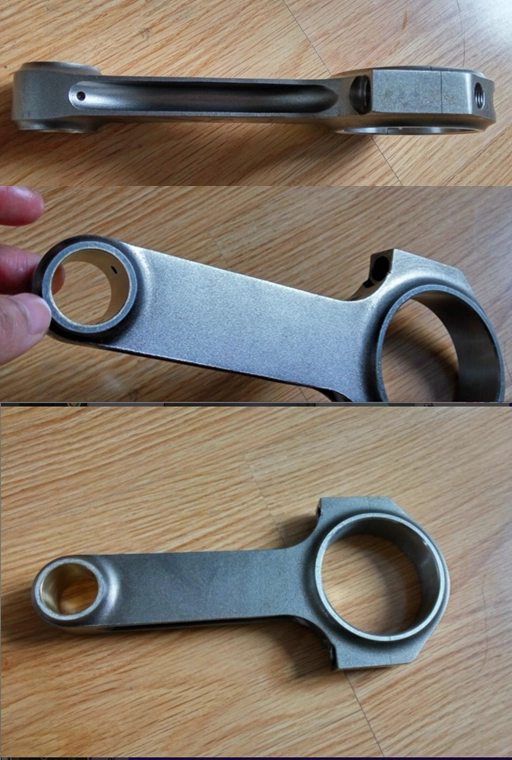

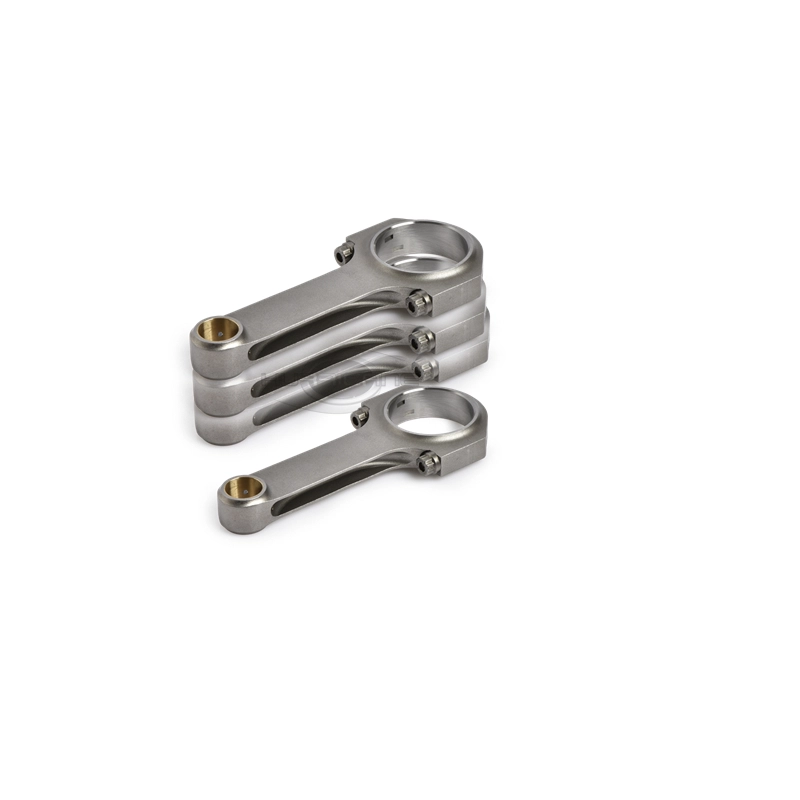

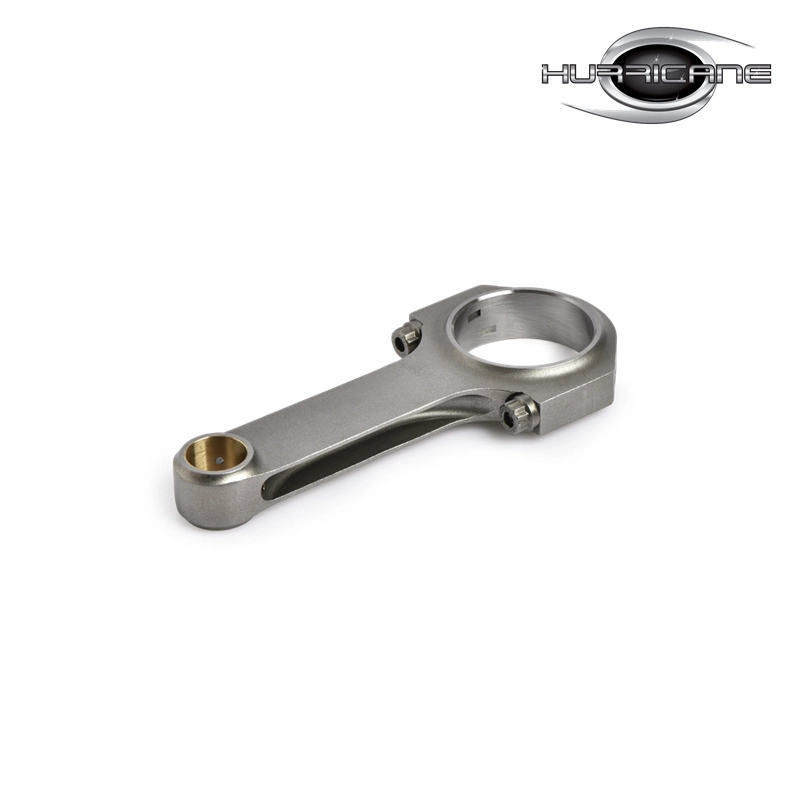

Forged 4340 Chromoly Connecting Rod Set, VW Journal 5.700 rod length

  • Since 2000
  • Forged 4340 Steel
  • Full CNC machine
  • Competitive Price
  • Quality Assurance
  • MOQ:80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords:air cooled vw connecting rods
  •          air cooled vw parts
  •          air cooled vw performance parts
  •          performance vw parts
  •          5.700 vw connecting rods
  •
Brand: Hurricane
Engine: VW Air Cooled,VW journal
Part Type: Connecting Rods
Center to Center Length: 144.78mm/5.700"
Big End Bore Diameter: 57.805mm /2.2758"
Big End Width: 22.65mm/0.8917"
Small End Bore Diameter: 22.005mm/0.8663"
Small End Width: 24.7mm/0.9724"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8 "
Approximate Connecting Rod Weight: 550g/piece
Advertised Horsepower Rating: 750hp
Quantity: Sold as 4pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available

Air cooled vw connecting rods, 5.700 VW journal
Hurricane H Beam Connecting Rods for the VW Air Cooled Engine with Chevy Journals. These are high quality finished by forged 4340 Chromoly steel and 100% CNC machined. These rods are a great upgrade over stock VW air cooled rods and will work great in a stroker engine. Hurricane copy ARP2000 3/8 high quality connecting rod bolt can be provided together with 5.700 VW inversion connecting rods.

5.700 VW connecting rods Features:
1. Forged 4340 steel
2. Design:H-beam
3. Double oil in small end



At present, 5.394", 5.400", 5.500" , 5.600" and  5.700 rods can be provided for you. Short rods, or long rods? The choice is yours, but modern engine builders know that longer rods make more power by reducing side load on the pistons. Long rods move the power band up the RPM scale because longer rods cause the piston to "dwell" longer in the vicinity of top dead center. This produces a cleaner burn of the air/fuel mixture, and there is actually a longer period of time for the pressure created to press against the top of the piston. Rod ratios are an important part of engine design. The key factor is that pure-bred racing engines are equipped with the longest rods possible.

If you have any questions, contact us online or leave an message:marketing@hurricane-rod.com.cn, we will reply you at once.
