5.600" H-Beam Connecting Rods, Type 1 Journals, Balanced, Set of 4

5.600" H-Beam Connecting Rods, Type 1 Journals, Balanced, Set of 4

  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Hurricane vw bug H-beam connecting rods
  •            Hurricane vw beetle H-beam connecting rods
  •            Race connecting rods
  •            Forged 4340 steel performance rods
  •            VW custom conrods
  •            vw parts
  •            volkswagen parts
  •            Hurricane vw parts
  •            classic volkswagen part


5.600" H-Beam Connecting Rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 142.24mm/5.600"
 Big End Bore Diameter: 53.975mm/2.125"
 Big End Width: 22.65mm/0.892"
 Small End Bore Diameter: 22mm /0.866"
 Small End Width: 24.7mm/0.972"
 Beam Style: H-beam

Type 1 Journals, Balanced, Set of 4, 5.600" Connecting Rods Features


 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXXg
 Advertised Horsepower Rating  600hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


Hurricane vw beetle H-beam 5.600" connecting rods Description


5.600" H-Beam Connecting Rods, Type 1 Journals, Balanced, Set of 4 begin as new chromoly forgings instead of used stock rod cores. These are clearanced for stroker use, minimizing your expense and elbow grease required for installation! These are a fantastic rod

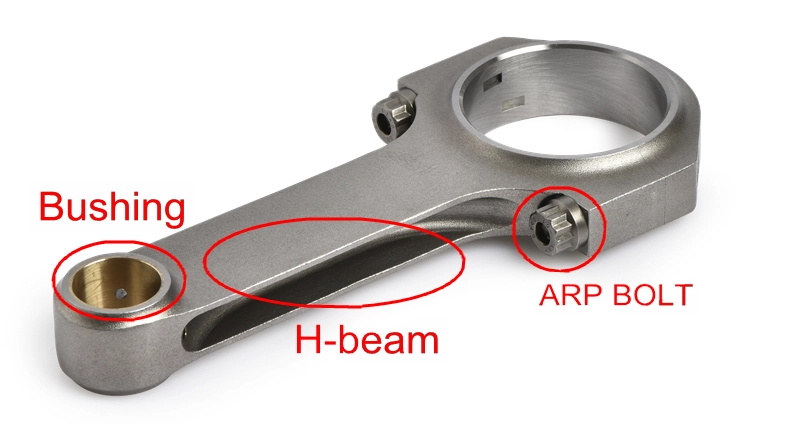

Technical Specifications:
1. Design:H-beam
2. Forged 4340 steel
3. Bushingcopper bush:QAL10-3-1.5
4. Dowel:40Cr,HRC40-42
5. Bolt torque:3/8-75N*M
6. Packing:4pcs/set
7. Balance weight within +/-1g


With ARP2000 bolt

Rod bolts - 3/8" Specifications:
 3/8
1) Thread Size:5/16"
2) UHL:1.500"
3) Thread Length:0.550"
4) Grip Length:0.100"
5) Head Height:0.348"
6) Wrench Size:3/8"
7) Collar Dia.:0.526"
Rod bolts-5/16" Specifications:
5/16
1) Thread Size:5/16"
2) UHL:1.500"
3) Thread Length:0.550"
4) Grip Length:0.150"
5) Head Height:0.348"
6) Wrench Size:3/8"
7) Collar Dia.:0.526"




Race connecting rods for Drag racing

Besides standard rods that can be machined and provided directly, custom rods can be provided for you also. Then three ways to start:
1. Used sample to us directly, address:Middle Ring Shuangjing Rd Chengdu Sichuan 610081 China
2. Full drawing to our email: marketing@hurricane-rod.com.cn
3. Custom Form online
