H-beam 4340 Forged Connecting Rods for Chevy Small Block V8 6.100" Center Length

H-beam 4340 Forged Connecting Rods for Chevy Small Block V8 6.100" Center Length

  • Competitive Price
  • High Performance
  • MOQ: 100 pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords:  GM SBC 6.100" Connecting Rods
  •            Chevy Small Block V8 H Beam Rods
  •            Chevy LS 6.100" Connecting Rods
  •            Chevy SBC 4340 Steel Connecting Rods Factory in China
  •            Supply high performance connecting rods for Chevrolet engines

GM SBC 6.100" Connecting Rods Main Sizes

 Brand: Hurricane
 Center to Center Length: 154.94mm/6.100"
 Big End Bore Diameter: 56.512mm/2.225"
 Big End Width: 23.86mm/0.939"
 Small End Bore Diameter: 23.561mm /0.928"
 Small End Width: 26.95mm/1.061"
 Beam Style: H-beam

Chevy Small Block V8 H Beam Rods Features

 Connecting Rod Bolt Diameter  7/16 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  1000hp
 Quantity  Sold as 8 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes, Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes, available
 Custom design  Yes, accept

Chevy LS 6.100" Connecting Rods Description

Hurricane make different center to center length connecting rods for Chevy small block V8 engines. Each Chevy SBC 4340 Steel Connecting Rods is manufactured from 4340 forged steel, using an H-beam design to increases twisting strength and rod reliability. Per rod’s dimensions inspected fully to ensure extreme reliability, much more, all these Chevy Small Block V8 H beam rods are fully machined and shot peened to meet high quality level.

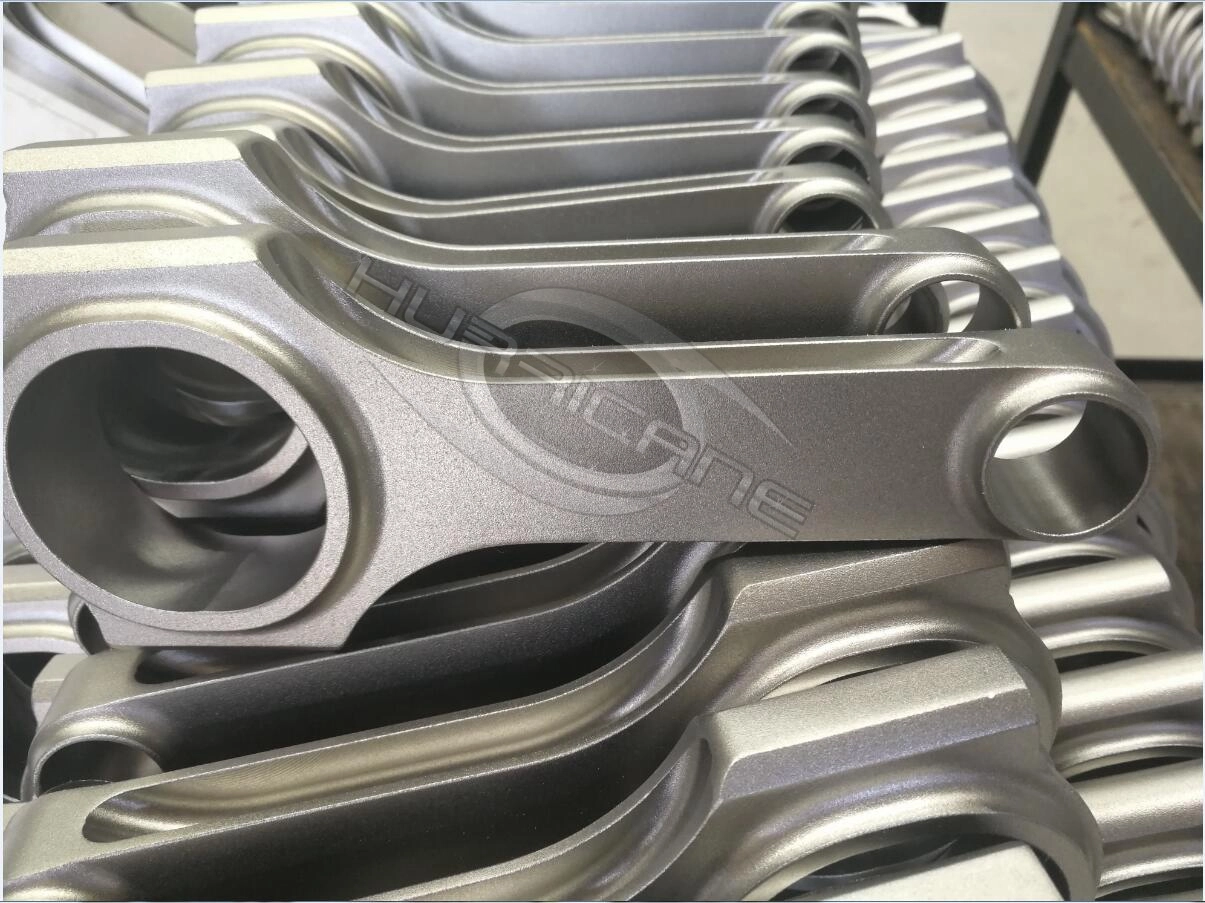

After shot peened, you can see the rods’ appearance is very smooth though following picture, Shot peening is a process to prevent fatigue failures that originate on the surface of the part and induce compressive stresses, primarily used to increase fatigue life by bombarding the surface of the parts with uniform small steel balls .

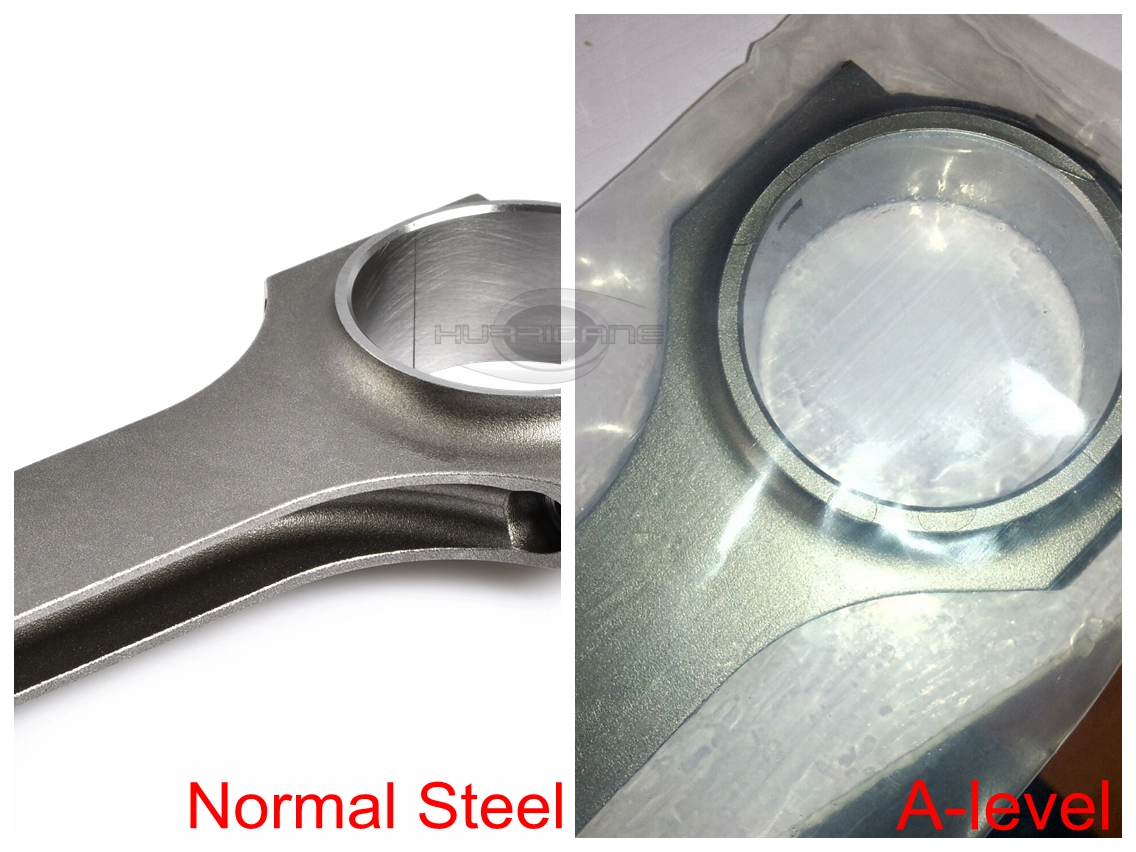

Hurricane also can provide forged connecting rods with better appearance ( A-level ) , the A level finish is more brighter than normal connecting rods , and it is more beautiful . You can learn about more details to click a article in here - Connecting rods Shot Peening and Mirco-Polishing, Special A-level appearance .



If you have any further question for the connecting rods’ more appearance finish, please don’t hesitate to contact our experienced staff .

Hurricane also supply high performance connecting rods for all kinds of Chevrolet engines, such as:
...
If you can not find the ones you are looking for on our website, please feel free send inquiry tomarketing@hurricane-rod.com.cn or contact us online.
