BBC Chevy 454 Forged Steel 6.535" Rods Set of 8pcs
- Competitive Price
- Quality Assurance
- High Performance
- MOQ：80pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: Chevy 396/454/502
Part type: Connecting Rods
Center to center length: 165.99mm/6.535"
Big End bore Diameter: 59.047mm/2.325"
Big end Width: 25.17mm/0.991 "
Small end bore Diameter: 25.146mm/0.990"
Small end width: 28.70mm/1.130"
Beam style: H-Beam
Connecting rod bolt Diameter: 7/16 "
Quantity: 8pcs/Set
Approximate connecting rod Weight: 800g/Piece
Advertised horsepower rating: 1000hp
Material: Forged 4340 Steel
Connecting rod finish: Shot-peened, polished
Pin: Bronze Wrist pine Bushings
Wrist pin Style: floating
Cape Town retention style: Cap Screw
Weight matched set: Yes, balanced +/-1 g
Magnafluxed: Yes
Private Label: Yes, available
Custom design: Yes, accept
These H-Beam style rods engineered for Big Block Chevy performance engines, manufactured from 4340 steel forgings. Each rod is heat treated, shot peened and stress relieved , 100% magnafluxed ,designed for marine engines up to 1000 horsepower, fully CNC machined for high strength, weight matched sets +/- 1gram.
Engine: Chevy 396/454/502
Part type: Connecting Rods
Center to center length: 165.99mm/6.535"
Big End bore Diameter: 59.047mm/2.325"
Big end Width: 25.17mm/0.991 "
Small end bore Diameter: 25.146mm/0.990"
Small end width: 28.70mm/1.130"
Beam style: H-Beam
Connecting rod bolt Diameter: 7/16 "
Quantity: 8pcs/Set
Approximate connecting rod Weight: 800g/Piece
Advertised horsepower rating: 1000hp
Material: Forged 4340 Steel
Connecting rod finish: Shot-peened, polished
Pin: Bronze Wrist pine Bushings
Wrist pin Style: floating
Cape Town retention style: Cap Screw
Weight matched set: Yes, balanced +/-1 g
Magnafluxed: Yes
Private Label: Yes, available
Custom design: Yes, accept
These H-Beam style rods engineered for Big Block Chevy performance engines, manufactured from 4340 steel forgings. Each rod is heat treated, shot peened and stress relieved , 100% magnafluxed ,designed for marine engines up to 1000 horsepower, fully CNC machined for high strength, weight matched sets +/- 1gram.

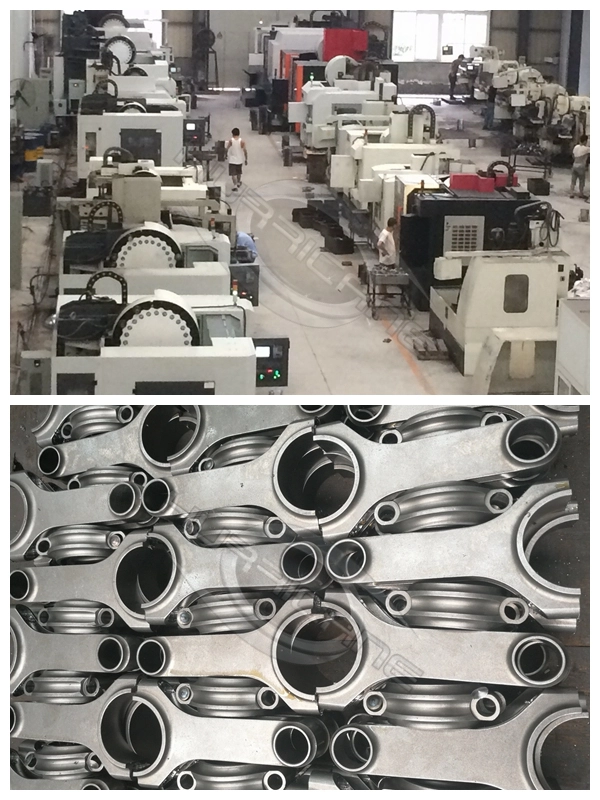

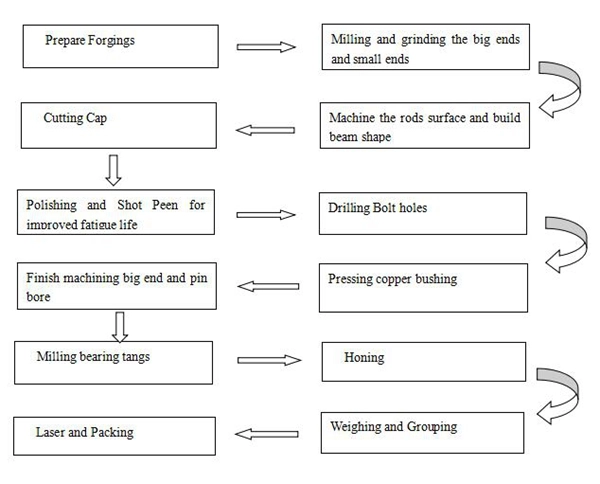

Hurricane Connecting Rods Manufacturing Process
Hurricane produce all kinds of connecting rods for various high performance racing applications , if you can not find the rods which you are looking for on our web, please send inquiry to us online or via email .
