Suzuki GSXR 1300 Hayabusa 4.705" H-beam 4340 Forged Connecting Rods
- Competitive Price
- Forged 4340 Steel
- MOQ:80pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 70-85 days .
- Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane*
Engine: Suzuki GSXR 1300 Hayabusa 99-07
Part Type: Connecting Rods
Center to Center Length: 119.5mm/4.705"
Big End Bore Diameter: 41mm/1.614"
Big End Width: 20.98mm/0.826"
Small End Bore Diameter: 20mm /0.787"
Small End Width: 20.96mm/0.825"
Beam Style: H-beam
Connecting Rod Bolt Diameter:~
Approximate Connecting Rod Weight: ~g/piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
Engine: Suzuki GSXR 1300 Hayabusa 99-07
Part Type: Connecting Rods
Center to Center Length: 119.5mm/4.705"
Big End Bore Diameter: 41mm/1.614"
Big End Width: 20.98mm/0.826"
Small End Bore Diameter: 20mm /0.787"
Small End Width: 20.96mm/0.825"
Beam Style: H-beam
Connecting Rod Bolt Diameter:~
Approximate Connecting Rod Weight: ~g/piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

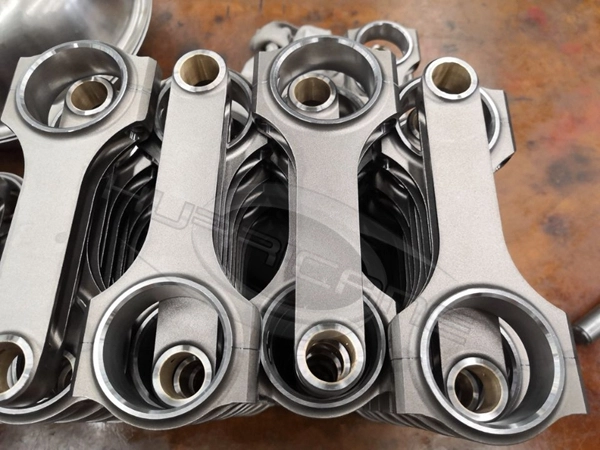

Suzuki GSXR 1300 Hayabusa 99-07 H beam connecting rods made from 1-piece chromoly 4340 steel material to ensure maximum strength. Per rod finished 2 oil holes at pin end to provide additional lubrication and cooling, bronze wrist pin bushings are fitted to each rod for increased wear resistance. Per rod fully polished and shot peed at Hurricane factory for longest fatigue life . They are weight matched sets +/- 1 gram , and sold as 4pcs per set , they can hold 550 hp per cylinder . Dimensions inspected, pin end bore and big end bore honed for tight tolerance to meet high quality standard .
Hurricane have 20+ years experience on manufacturing high performance racing connecting rods, per rod can be designed and customized as your specified and private request .
If you did not find the performance rods you need, please don't hesitate to fill in Custom Connecting Rod Form or contact us for assistance .
