Audi TTRS RS3 2.5 20V TFSI 5Cyl connecting rods

Audi TTRS RS3 2.5 20V TFSI 5Cyl connecting rods

  • Material: forged 4340 Steel
  • Fully CNC Machine
  • Quality Assurance
  • Competitive Price
  • Valid lead time
  • MOQ: 100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Audi Rods - RS3/TTRS 2.5 TFSI 5cyl
  •            Engine build parts - connecting rods for Audi RS3 TTRS
  •            Hurricane steel connecting rods RS3 144MM/22MM
  •            2.5L TFSI H-Beam Steel Connecting Rods for Audi RS3 and Audi TT RS
  •            High-strength steel connecting rods for 2.5L TFSI engines

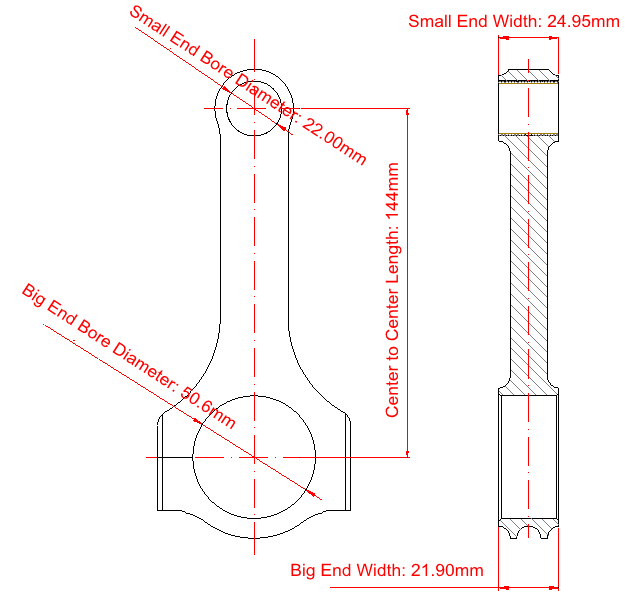

Audi Rods - RS3/TTRS 2.5 TFSI 5cyl Main Sizes

 Brand: Hurricane
 Center to Center Length: 144mm/5.670"
 Big End Bore Diameter: 50.6mm/1.992"
 Big End Width: 21.90mm/0.862"
 Small End Bore Diameter: 22.00mm /0.866"
 Small End Width: 24.95mm/0.982"
 Beam Style: H-beam

Engine build parts - connecting rods for Audi RS3 TTRS Features

 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXX
 Advertised Horsepower Rating  700hp
 Quantity  Sold as 5 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Hurricane steel connecting rods RS3 144MM/22MM Description

Hurricane steel H-beam connecting rods for  TTRS RS3 2.5 20V TFSI engines with high performance enhancement, the steel con-rods are made from 40CrNiMoA/4340/EN24 forgings for your 2.5L 5Cyl engine. The standard con-rods can meet your performance engine. With std H-beam design and low weight of con-rods, extra feature will be used to high stresses and extreme increases in performance.

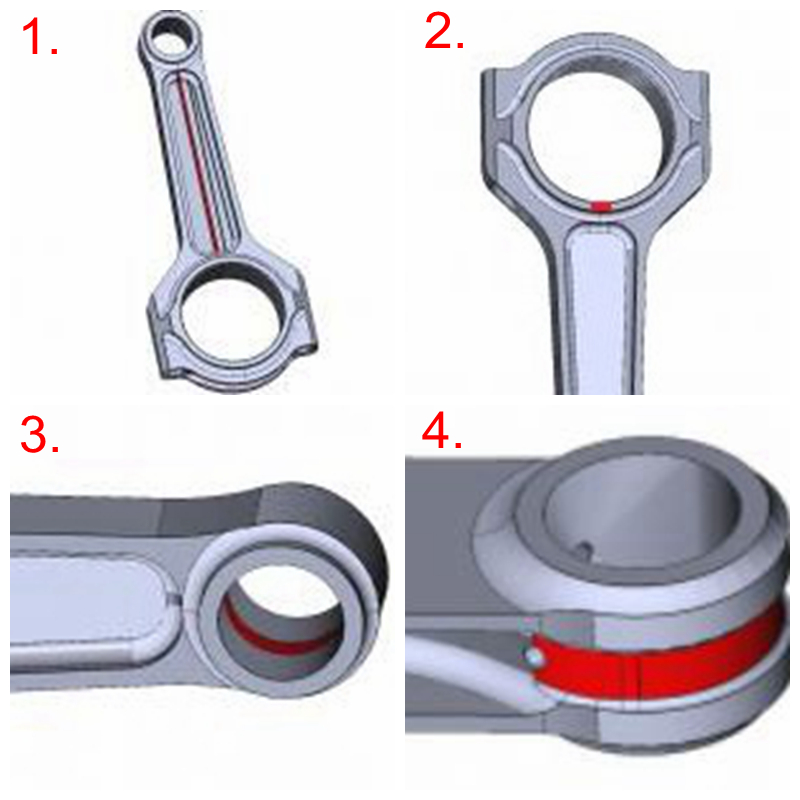

1. Rifle Drilled
This feature provides better pin oiling and cooling leading to increased longevity of the whole piston-rod set.
2. Groove in Thrust Face
All rods come with grooves in thrust face, feature that allows weight reduction and reduced friction.

3. Radial Groove Sleeve
Silicon aluminum bronze rod sleeves with radial groove for oil tank and best pin oiling.

4. Ribbed Pin End
Ribbed pin end helps to keep pin bore round and avoid PE distortion in high engine speed applications.


In a word, our  H-beam connecting rods is the best choice under the safe side. If you have any questions, please feel free to contact us online or by email: marketing@hurricane-rod.com.cn .
