Toyota Supra 2JZ 94mm stroke 4340 billet crankshafts

4340 Steel Billet
Competitive Price
Quality Assurance
Delivery time: If crank in stock, Delivery time within 1-3 days.
Payment term: T/T, Paypal, Western Union
Keywords : Toyota 2JZ billet crankshafts
Custom Billet Crankshafts
steel billet crank
94mm stroke 2jzgte crankshafts
Toyota 3.0L Supra 2JZGTE Billet Crankshaft

Brand: Hurricane
Engine Model: Toyota Supra 2JZ
Crankshaft Material: 4340 Billet
Engine Stroke: 94mm / 3.701"
Main Journal Diameter: 62mm / 2.441"
Rod Journal Diameter: 52mm / 2.047"
Weight: about 26kg
Crank reluctor Wheel include: NO
Engine Balance: Internal
Crankshaft Snout Style: Standard
Quantity: Sold individually

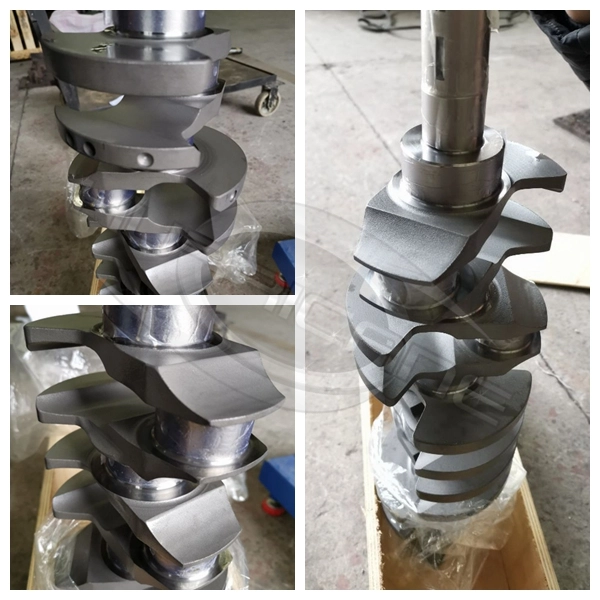

Toyota 2JZ billet crankshafts Description

This Billet crankshaft are finished at CNC machiney, stroke is 94mm, fits Toyota 3.0L Supra 2JZGTE engine. Toyota 2JZ billet crankshafts are process by finish grinding, nitriding and polishing. All the flank and outline have been machined. After shot peening, increasing the intensity effectively.

Please click our News page to know the "Differences Between 4340 Forged Steel Cranks and 4340 Billet Steel Cranks."

86mm 88mm 92mm and 94mm stroke 4340 billet crankshaft can be made for Toyota 2jzgte applications too , welcome to send inquiry for us if you have any interest .

Hurricane also provide performance H beam and I beam 4340 forged steel connecting rods for Toyota 2JZGTE engine, please view:

1. Toyota 2jzgte 4340 Forged Connecting Rods I-beam , Set of 6

2. Hurricane H-Beam Rods Toyota Supra MK4 2JZGTE 5.590
