Set of 8, FORD SMALL BLOCK-289/302/5.0L 5.090 H beam connecting rodsSet of 8, FORD SMALL BLOCK-289/302/5.0L 5.090 H beam connecting rodsSet of 8, FORD SMALL BLOCK-289/302/5.0L 5.090 H beam connecting rods

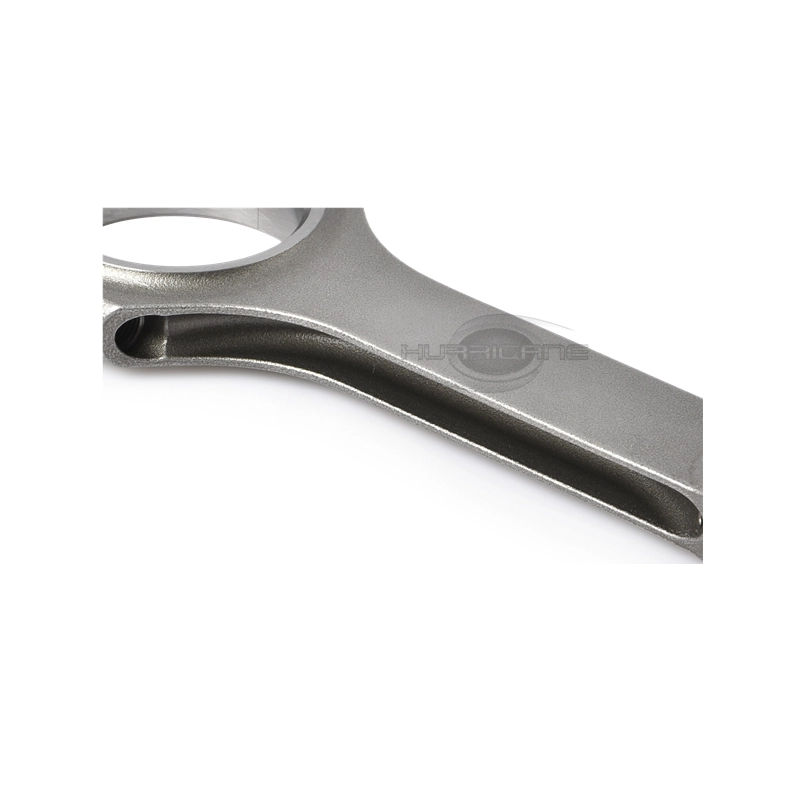

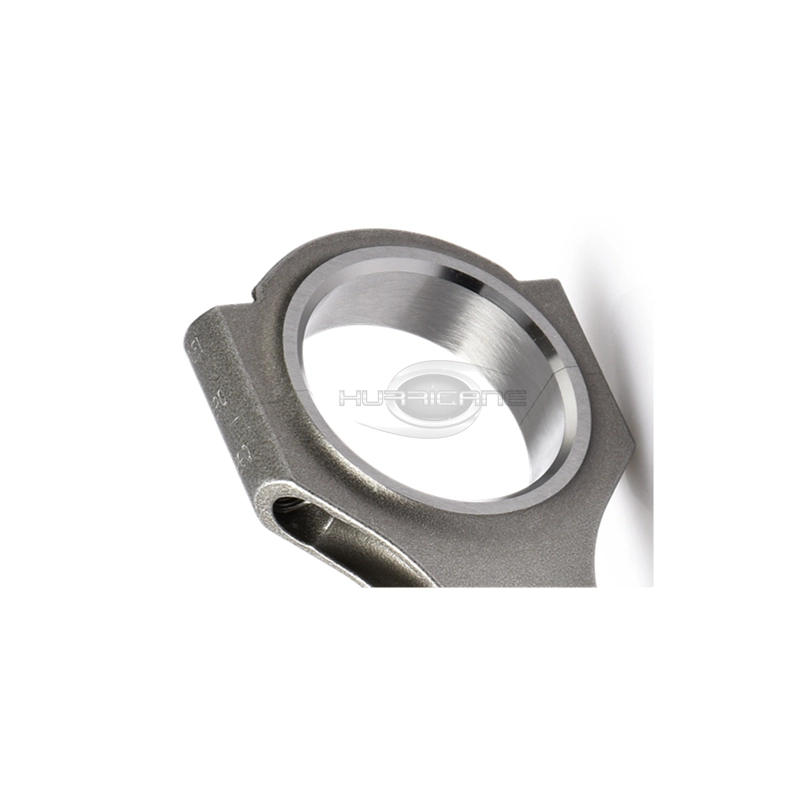

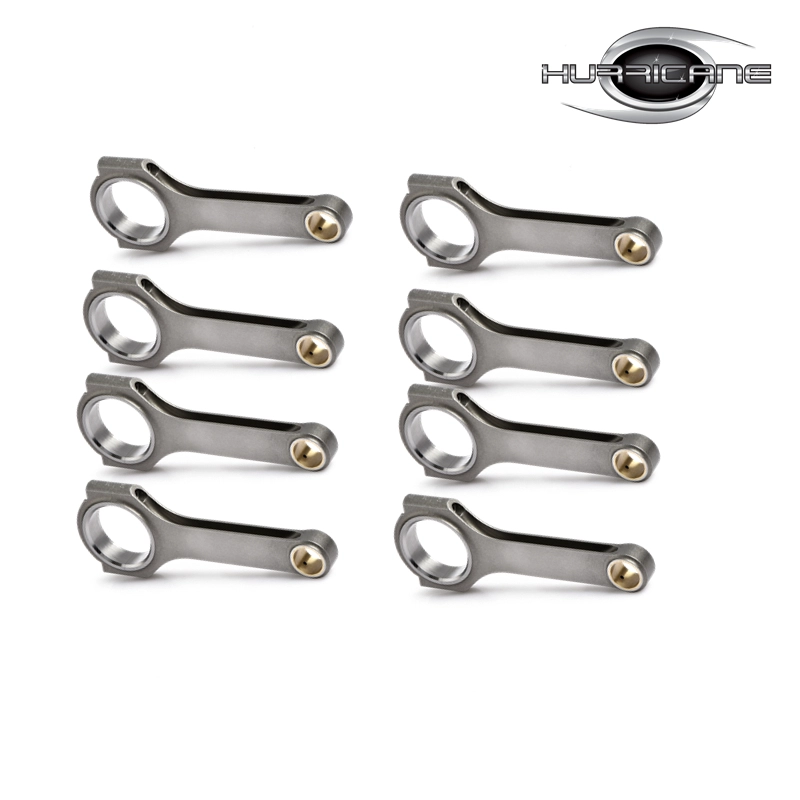

Set of 8, FORD SMALL BLOCK-289/302/5.0L 5.090 H beam connecting rods

  • Competitive Price
  • Quality Assurance
  • MOQ:80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: FORD SMALL BLOCK-289/302/5.0L
Part Type: Connecting Rods
Center to Center Length: 129.29mm/5.090"
Big End Bore Diameter: 56.87mm/2.239"
Big End Width: 21.12mm/0.832"
Small End Bore Diameter: 23.17mm /0.912"
Small End Width: 26.92mm/1.060"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16"
Approximate Connecting Rod Weight: 590g/piece
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Ford SBC 5.090 Connecting Rods Descripition

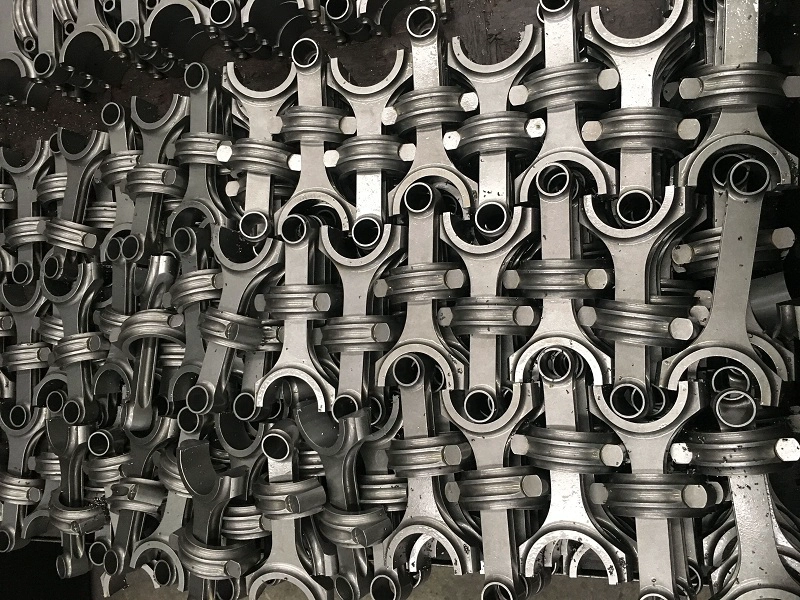

Those Small Block Ford Connecting Rods are all made from one piece 4340 steel forging, and we will cut cap after shot peened progress to insure rods strength, You can find  more useful information and production progress at our official Youtube Page.



Durable and affordable 4340 steel H beam connecting rods for Ford SBC 302 5.0L engine are sized and finished in Hurricane factory.  All rods have alignment sleeves to positively locate the rod cap, assuring big end bore size and eliminating cap walk. Rods are bushed for use with full floating pins. Sold in weight matched sets.

Hurricane also offer I beam design Ford 302 Connecting Rods 5.090" length,  please check:  Ford Small Block 5.090" I-beam 4340 Forged Connecting Rods

More performance Ford connecting rods at hurricane factory, We offer a complete line of small and big-block Ford and many more in both the I-Beam and H-Beam designs. please check our Ford Rods Catalog, If you do not find what you need through our webiste and or have custom design requirements, please fill in the Custom Connecting Rod Form and our skilled staff will get back to you shortly.  

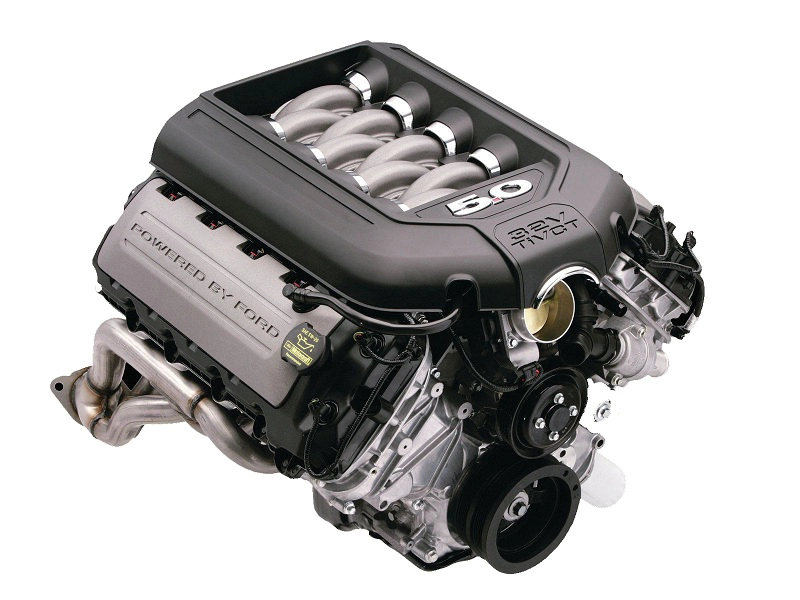

Ford 302 Coyote V8 5.0L Engine Picture
