Set of 6, 4340 Chrome Moly Connecting Rods for BMW M30B28 M30B30 M30B32 M30B35 engine

Home > Category > ConRod > BMW & Mini Rods  > Set of 6, 4340 Chrome Moly Connecting Rods for BMW M30B28 M30B30 M30B32 M30B35 engine

Browse Categories

Qualification Certificate

4340 material test report
connecting rod PSI test report
Hurricane Performance Replacement Connecting Rod Bolt Test Report
4032 piston material test report
300M connecting rods material

Latest Product

News

Hurricane Factory VW Air Cooled Forged Steel Crankshaft Info

Hurricane Factory VW Air Cooled Forged Steel Crankshaft Info

2019-07-12 09:16:56

Hurricane factory manufactured in a wide variety of strokes with either VW or Chevy journals to fit your exact engine configuration. All of hurricane ...

Hurricane Connecting Rod Features - Various Beam Designs

Hurricane Connecting Rod Features - Various Beam Designs

2017-10-08 13:11:22

With many years experience of designing, developing , engineering and manufacturing in the connecting rods fields, Hurricane has ability to handle different customers needs on connecting rods designs . Except connecting rods shoulder and small end, Hurricane also can build various connecting rods beam style .

Hurricane High Performance connecting rods - Process of machining rods

Hurricane High Performance connecting rods - Process of machining rods

2017-09-19 10:13:15

Main rods includes Chevy,Ford, Harley Davidson, VW & Audi, Opel, Honda, Nissan,Subaru, Mitsubishi, Toyota, Isuzu, Suzuki, Mazda, Buick, BMW, Chrysler & Dodge, Fiat
Here in the following process of pictures are the 13 major operations undertaken in the production of Hurricane Speed&Performance:

The difference of the connecting rod manufacturing process: Forged vs Billet

The difference of the connecting rod manufacturing process: Forged vs Billet

2017-05-30 22:40:17

Forging and billet as two different manufacturing processes to make high performance connecting rods, both can produce strong finished produc

Contact us

Hurricane Contact Information We believe the soul of a business is quality. Hurricane is a manufacturer of high performance automotive engine parts. W...
China Set of 6, 4340 Chrome Moly Connecting Rods for BMW M30B28 M30B30 M30B32 M30B35 engine manufacturer China Set of 6, 4340 Chrome Moly Connecting Rods for BMW M30B28 M30B30 M30B32 M30B35 engine manufacturer China Set of 6, 4340 Chrome Moly Connecting Rods for BMW M30B28 M30B30 M30B32 M30B35 engine manufacturer

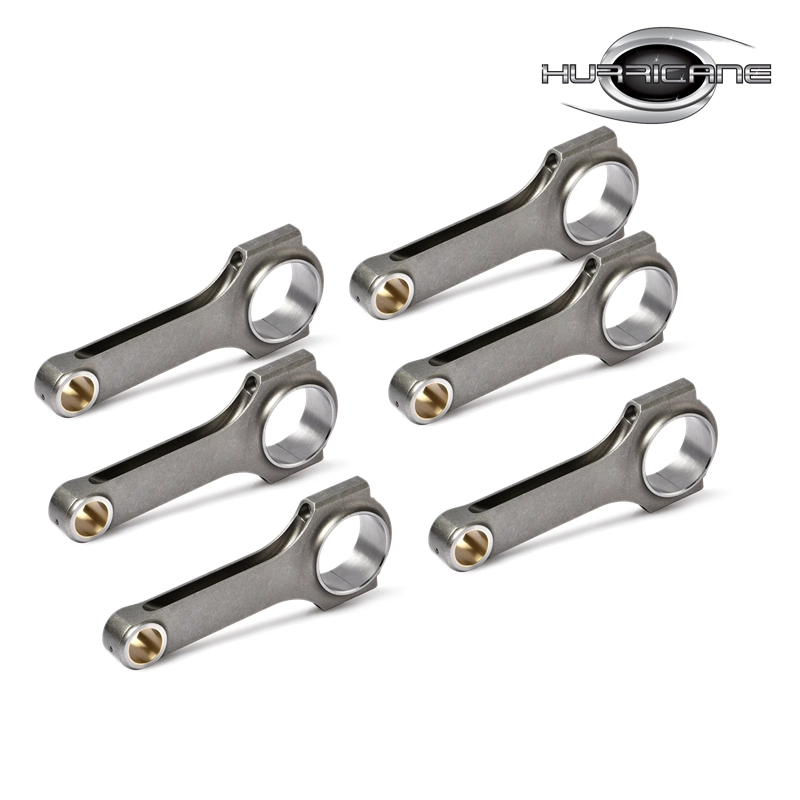

Set of 6, 4340 Chrome Moly Connecting Rods for BMW M30B28 M30B30 M30B32 M30B35 engine

  • Competitive Price
  • Quality Assurance
  • MOQ：80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywpords: BMW connecting rods
  •            BMW connecting rod specs
  •            BMW Performance Connecting Rods M30
  •            High Performance BMW M30 H-Beam Rods
  •            Forged PRO-H Beam Connecting Rods BMW
  • Product Details
Brand: Hurricane
Engine: BMW M30B28 M30B30 M30B32 M30B35
Part Type: Connecting Rods
Center to Center Length: 135mm/5.315"
Big End Bore Diameter: 52mm/2.047"
Big End Width: 23.9mm/0.941"
Small End Bore Diameter: 22mm /0.866"
Small End Width: 23.9mm/0.941"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 540g/piece
Advertised Horsepower Rating: 900hp
Quantity: Sold as 6 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

At present, BMW rods are among our best-selling list, there is a list that you could purchase anytime:
 Engine Model  Cylinder  Rod length(mm)  Big end bore(mm)  Big end width(mm)  Small end bore(mm)
M20  6 130
 48
  21.87
  22
M20  6 135   48 21.87   22
M20  6  140  48  21.87  22
S54 E46 M3 (S54B32)
  6 139   53 19.85   21
 M3 S54  6  139  53  19.8  21
 B30  6  142  53  21.85  21
 M5 /M6 S38 B36 3.5L  6  144  52  23.9  22
 E30 M3 S14  2.3L  4  144  52  23.9  22
 E36 M50B25  6  135  48  21.79  22
 M5 3.8L (S38B38)  6  142  52  23.9  22
 4.0/4.4L V8 (M60B40)  8  143  52  20.85  22
 M10 M30  6  135 52   23.9  22
 N54B30  6 145  53.6   20.86  22
M5/M6 S-88
 6 144 52 23.9 22
Please kindly explore as if you want. If not, welcome you to contact us directly

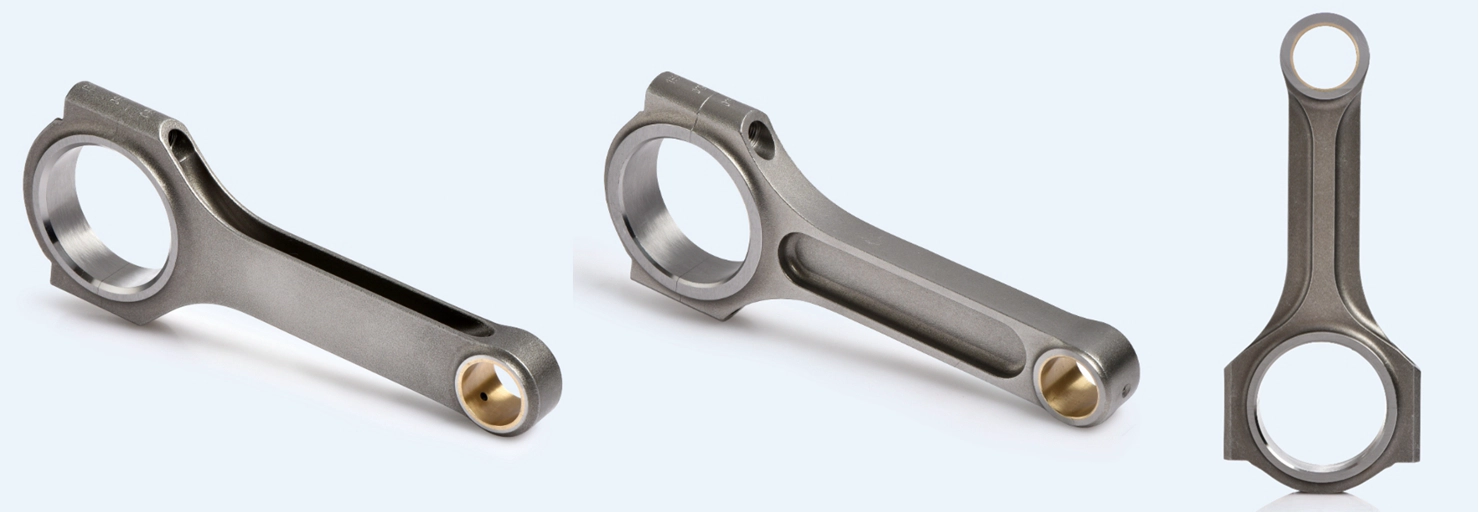

Set of 6, Hurricane Quality controled 4340 Chrome Moly Connecting Rods fits for BMW M30B28 M30B30 M30B32 M30B35 engines. Beside H-beam, X-beam, I-beam and custom rods could be produced and provided for you also

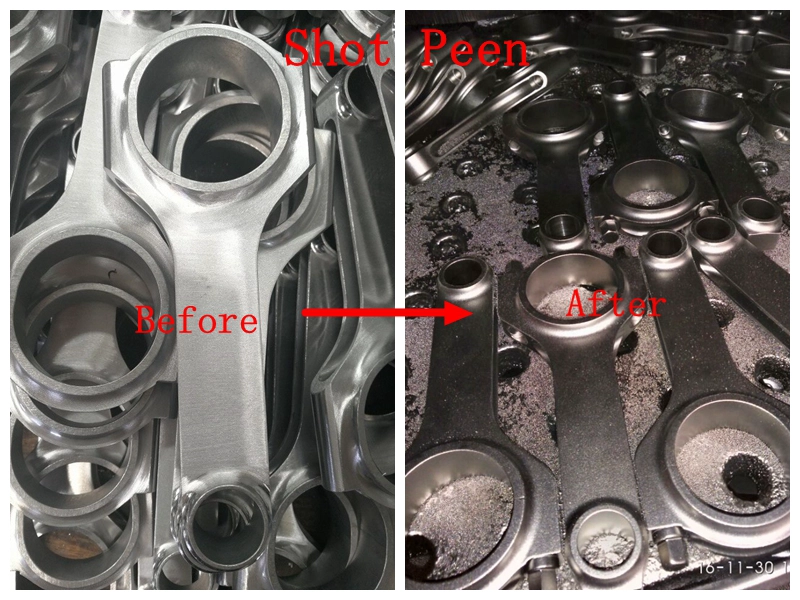

Shot penning the surface of the rod can relieve stress and improved fatigue life. H beam design provides higher compressive strength for high RPMs.

Note: more information about Shot Peening, please kindly explore "What is shot peening?"

If you have any comments, you can also find the helpful information at FAQ page.
Hot Tags : race rod HUR17-001H5315 BMW M30 connecting rod h beam connecting rod bmw 135mm bmw connecting rod h beam connecting rod for bmw BMW Connecting Rods
