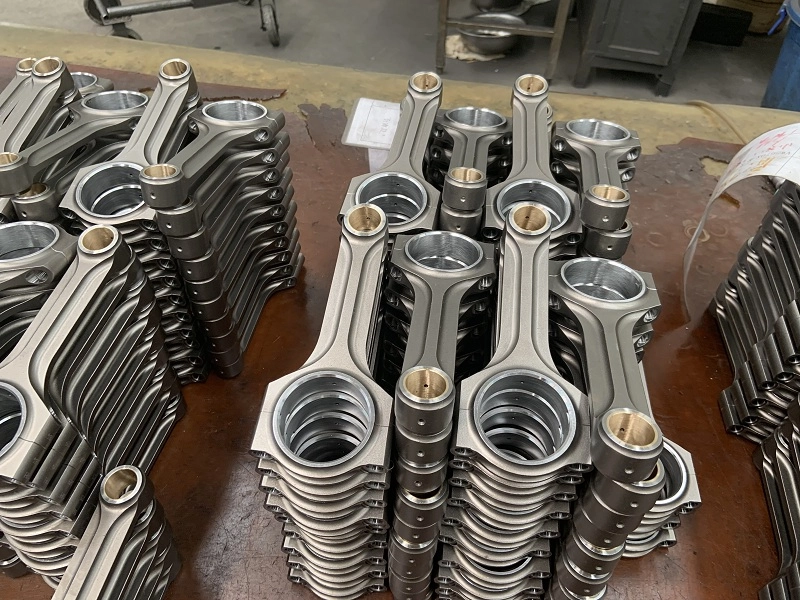

Set of 5 Audi TTRS RS3 2.5L TFSI  EA855 X beam Connecting Rods

Set of 5 Audi TTRS RS3 2.5L TFSI EA855 X beam Connecting Rods

  • Material: forged 4340 Steel
  • CNC Machine
  • Quality Assurance
  • Competitive Price
  • Valid lead time
  • MOQ: 100 pieces(20 sets)
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms : T/T , Paypal
  • Keywords: Audi RS3 X beam steel connecting rods
  •           Audi RS 3 2.5L TFSI EA855 connecting rods
  •           Forged Connecting Rods 144X22 VW & Audi RS3
  •           Audi RS3 TT RS 5 Cylinder 2.5L Connecting Rods
  •           Hurricane factory Audi Performance Connecting rods

Audi RS3 X beam steel connecting rods Main Sizes

 Brand: Hurricane      
 Center to Center Length: 144mm/5.670"
 Big End Bore Diameter: 50.6mm/1.992"
 Big End Width: 21.90mm/0.862"
 Small End Bore Diameter: 22.00mm /0.866"
 Small End Width: 24.95mm/0.982"
 Beam Style: X-beam

Forged Connecting Rods 144X22 VW & Audi RS3 Features

 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  545 gram
 Advertised Horsepower Rating  900hp
 Quantity  Sold as 5 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Audi RS 3 2.5L TFSI EA855 Connecting Rods Description

Audi RS3 X beam steel connecting rods are the perfect performance upgrade. Forged from 4340 aircraft quality vacuum degassed material, Fully CNC machined and Shot peened after machining to Mil specs. Each set of Audi RS3 TT RS 5 Cylinder 2.5L Connecting Rods are weight matched to +/- 1 grams and capable of handing 900 HP.

Forged Connecting Rods 144X22 VW & Audi RS3 are ready for packing. The rifle drilling application is available in all of hurricane 4340 steel connecting rods and they are sold separately, please contact us for more information if you are interested. And Audi RS3 X-beam rifle drilled connecting rods estimate weight is only 545 gram per piece.
Hurricane factory produced kinds of Audi performance connecting rods in various designs. We also have H-beam and I-beam designs connecting rods for Audi RS3 EA855 engine.
If you are interested, please feel free to contact us on Live Chat or By email to marketing@hurricane-rod.com.cn directly.

Related conrods:

Audi RS 3 2.5L TFSI EA855 connecting rods Fits for

  • Audi RS 3 (8PA) 2.5L TFSI EA855
  • Audi RS 3 (8VA) 2.5L TFSI EA855EVO
  • Audi TT RS (8J) 2.5L TFSI EA855
  • Audi TT RS (8S) 2.5L TFSI EA855EVO

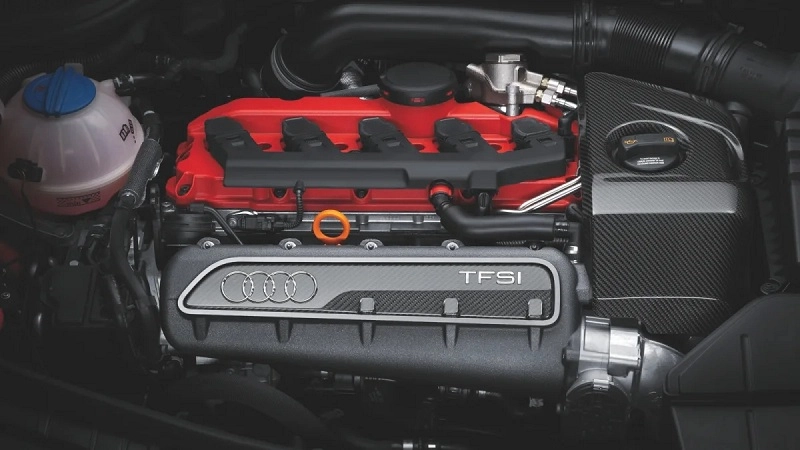

Audi 2.5 TFSI 5 Cylinder Engine

Note:Picture from Jalopnik.
