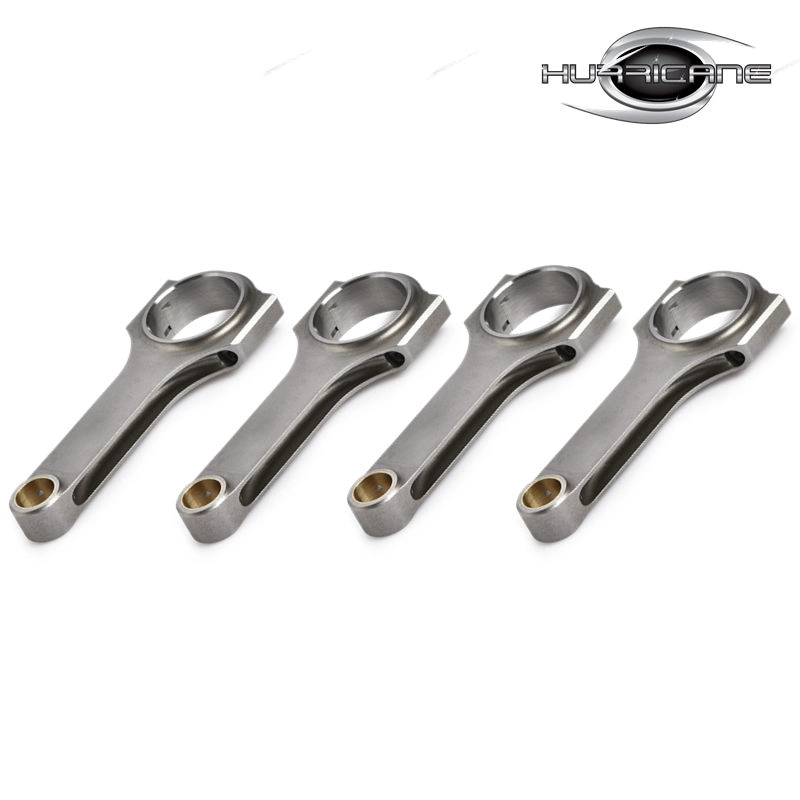

Mitsubishi 4G63 H-Beam Connecting Rods (Set of 4) ,150mm C/C length , 22mm Pin

  • Competitive Price
  • Quality Assurance
  • MOQ：80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Product Details
Brand: Hurricane
Engine: Mitsubishi 4G63
Part Type: Connecting Rods
Center to Center Length: 150.01mm/5.906"
Big End Bore Diameter: 48.00mm/1.890"
Big End Width: 26.37mm/1.038"
Small End Bore Diameter: 22.00mm /0.866"
Small End Width: 26.37mm/1.038"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 578g/piece
Advertised Horsepower Rating: 550hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Mitsubishi 4G63 Connecting Rods Desciripition


Mitsubishi H beam connecting rods machined from high strength 4340 chromoly steel ,H-beam design to save weight and increase strength . Each rod bronzed wrist pin bushings , magnafluxed, polished and Shot-peened for superior strength and durability, capable of handling over 550 hp .



Note:  This is our shot peen steel shot ball,  when hurricace factory produce performance mitsubishi connecting rods,  we are strict to select steel shot.  We will only use the cleanest shot ball which has the most suitable size. The result is our rods surface is very bright and smooth. To understand more about our appearance treatment progress, please check our news page: Connecting rods Shot Peening and Mirco-Polishing, Special A-level appearance



Mitsubishi 150mm length connecting rods for 4G63 engine is a hot item. Each set is balance weighted within +/-1g, Lighter and Stronger than OEM Mitsubishi Conrods, They are performance replacement connecting rod for all Mitsubishi EVO 4G63 models.




We also produce 4G63 rods with different specs and different designs. please check products at below:

Much more, Hurricane can also offer BILLET 4340 CRANKSHAFTS for Mitsubishi 4G63 engine, check it now:  88MM STROKE Mitsubishi 4G63 Billet crankshaft-Hurricane Speed&Performance

Any inquiry, please feel free to contact us, our skilled staff will get back to you within 24 hours.
