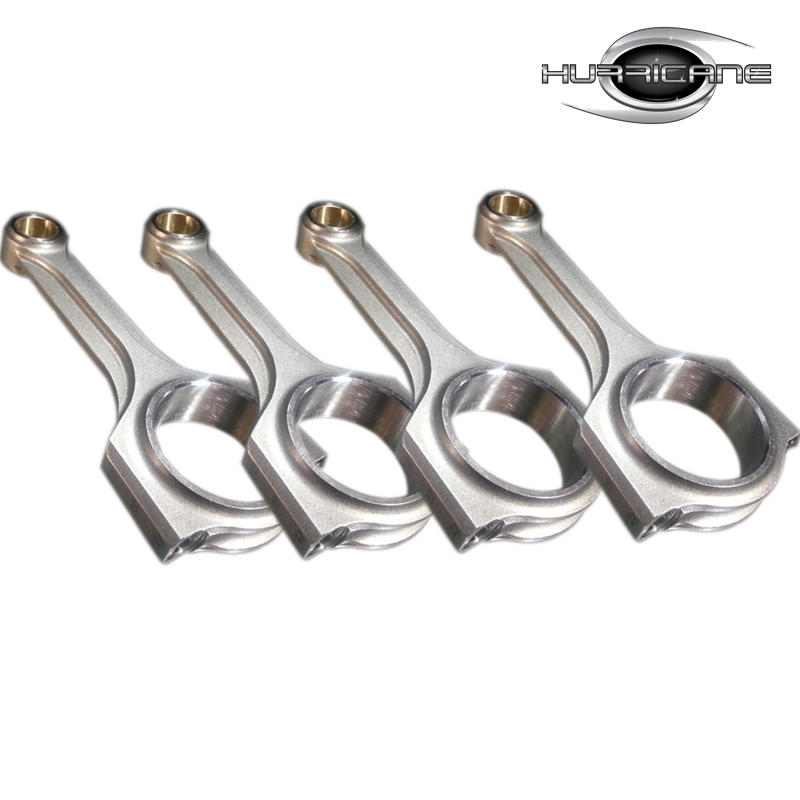

Hurricane Opel 1,6L 16V Turbo Z16LER Z16LER Z16LET Conrods

Hurricane Opel 1,6L 16V Turbo Z16LER Z16LER Z16LET Conrods

  • Material: Forged 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms: T/T , Paypal , Western Union
  • Keywords: For Opel X-beam forged 4340 Steel Connecting Rods
  •           Conrods 129,75mm/19mm Opel Z16LET Z16LEL Z16LER Z16LEH 1.6T 16V
  •           OPEL 1.6 TURBO Z16LET / LEL / LER / LEH 129.75mm Rods in China
  •           Opel Vauxhall Corsa VXR Z16LER Z16 1.6 Conrods Con Rod
  •           Engine Parts - Z16LET / Z16LEL / Z16LER / A16LEx by hurricanerods.com

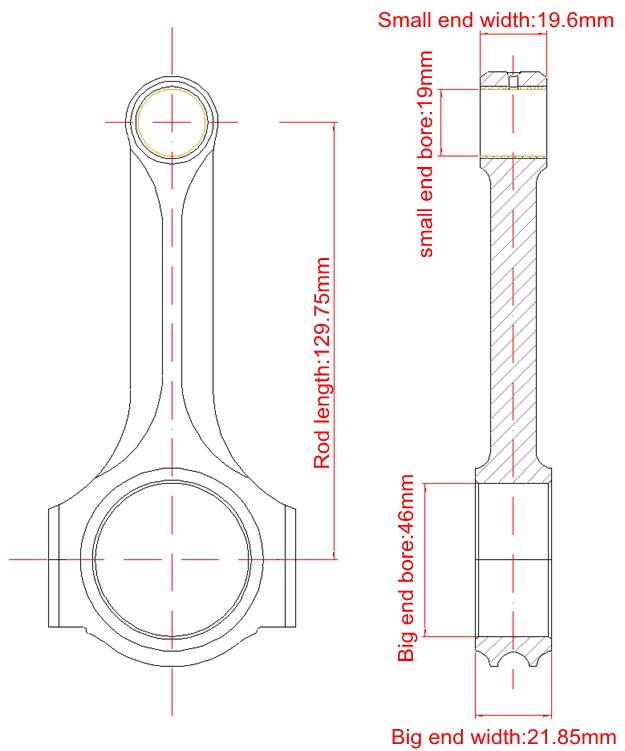

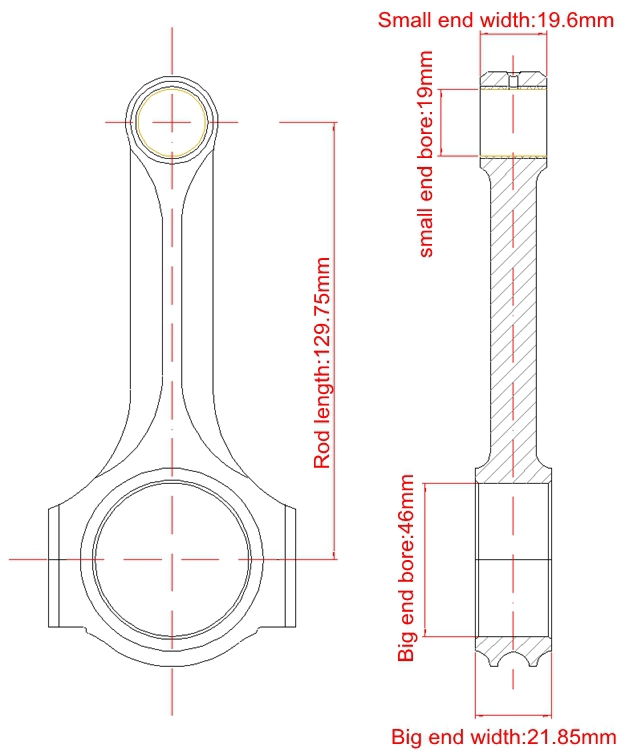

Conrods 129,75mm/19mm Opel Z16LET Z16LEL Z16LER Z16LEH 1.6T 16V rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 129.75mm/5.108"
 Big End Bore Diameter: 46mm/1.811"
 Big End Width: 21.85mm/0.860"
 Small End Bore Diameter: 19mm/0.748"
 Small End Width: 19.6mm /0.772"
 Beam Style: X-beam

Opel Vauxhall Corsa VXR Z16LER Z16 1.6 Conrods Con Rod Features


 Connecting Rod Bolt Diameter  5/16"
 Approximate Connecting Rod Weight  ~g
 Advertised Horsepower Rating  800hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Engine Parts - Z16LET / Z16LEL / Z16LER / A16LEx Connecting Rods by hurricanerods.com Description


The company Hurricane Speed and Performance has been known for high performance forged connecting rods since 2000. Have ourselves engineers rely on many years of experience and know-how, especially in motorsport.

Hurricane Speed and Performance uses high quality Steel 4340/40CrNiMoA to make performance Z16LET / Z16LEL / Z16LER / A16LEx con rods. The material HRC:34-38, heat treatment:860ºC~880ºC, and high strength.


Related links to:

Additional information:
- Crankshaft stroke: 81.5mm
- Compaction to: 8.5: 1
- Dome Volume: -3,5cm³
- Compression height: 28mm
- Piston pin diameter: 19mm
- Rod length: 129.7mm
Please tell us when ordering your connecting rods
