Honda L15A Fit/Jazz 139mm X-beam Connecting Rods

Honda L15A Fit/Jazz 139mm X-beam Connecting Rods

  • Forged 4340 steel
  • Fully CNC Machine
  • Competitive Price
  • MOQ: 100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union

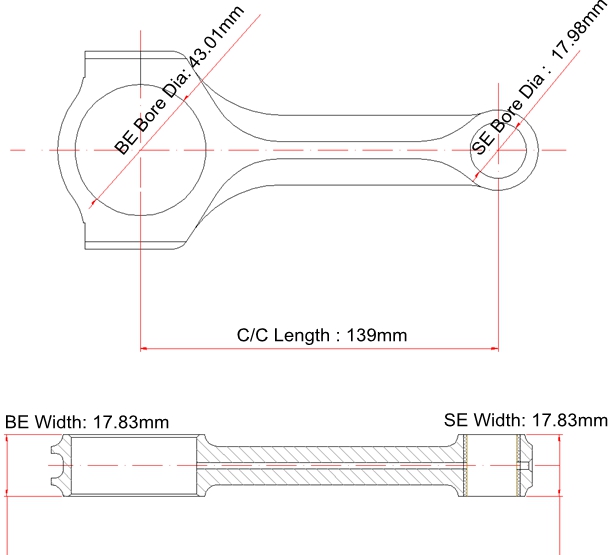

Honda L15A JAZZ 139mm X-beam Conrods Main Dimensions

 Brand: Hurricane
 Center to Center Length: 139mm/5.472"
 Big End Bore Diameter: 43.01mm/1.693"
 Big End Width: 17.83mm/0.702"
 Small End Bore Diameter: 17.98mm /0.708"
 Small End Width:17.83mm/0.702"
 Beam Style: X-beam

Honda L15A JAZZ 139mm X-beam Conrods Features

 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXX
 Advertised Horsepower Rating  600hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished

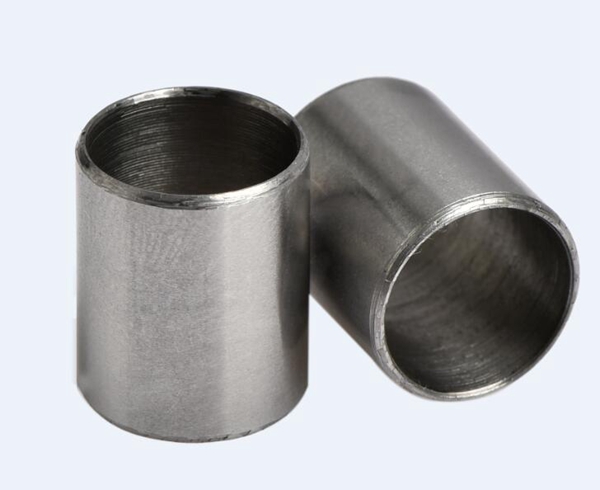

 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Private Label  Yes, accept

Additional Description :


1). MOQ: 100pcs per model .

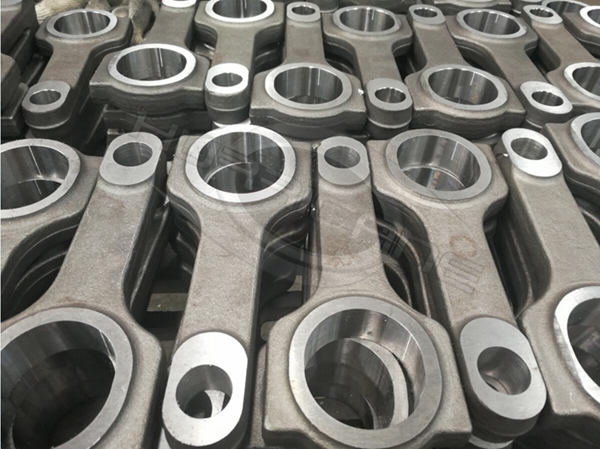

2). CNC Machined from premium 4340 forged steel forgings .




3). Each forging is X-rayed, sonic tested and magnafluxed.


4). Heat treated to HRC 34-38.


5). High quality dowels installed in cap for precision alignment.



6). Finished to withstand 600hp on 4cyl engines .


7). Custom Connecting Rods Sizes or design are acceptable.Welcome todownload and fill out theform and mail to us directly via marketing@hurricane-rod.com.cn.


8). Fits for standard ARP 2000 bolts.

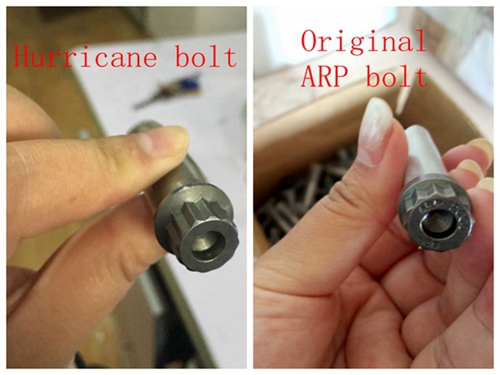

Hurricane Connecting Rods Bolts vs Genuine ARP2000 Bolts Picture

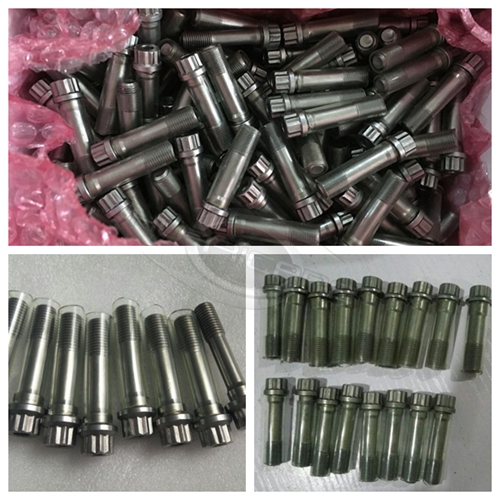

Hurricane bolts picture 

PS: Hurricane connecting rods bolts can be provided separately , please confirm details with us before ordering .


 Honda L15A FIT/JAZZ H-beam and I-beam connecting rods are available too , welcome to send us inquiry if any interest .
