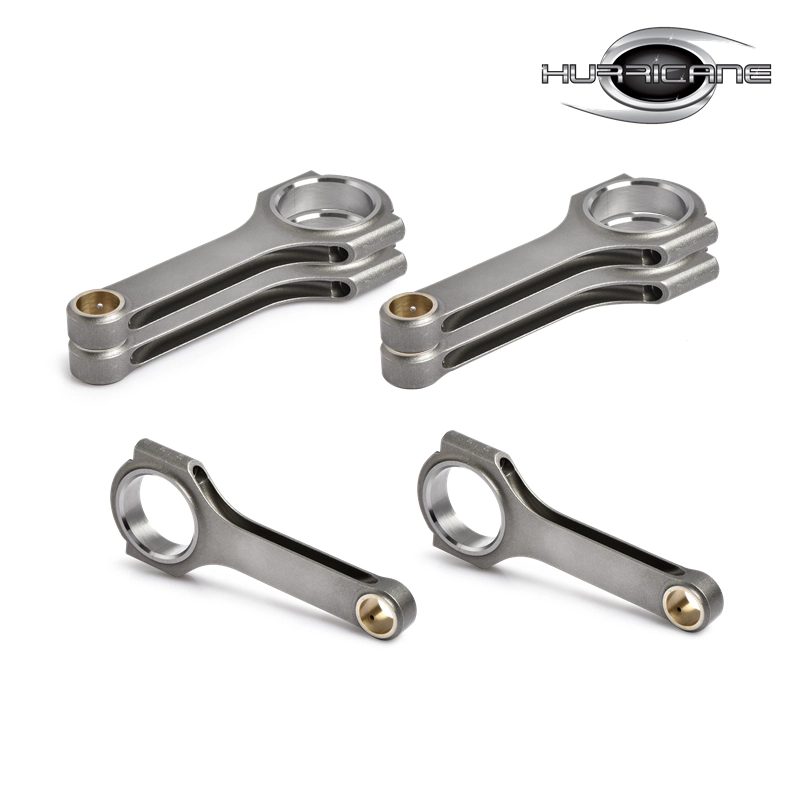

H-beam 4340 steel 4340 Chrome-Moly Connecting Rod for Honda J37 (J37A1/2/3/4/5)

H-beam 4340 steel 4340 Chrome-Moly Connecting Rod for Honda J37 (J37A1/2/3/4/5)

  • Engine Model: Honda J37 (J37A1/2/3/4/5)
  • Material: Forged 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Custom forged connecting rods. - Honda J37 engine
  •            Engine - Internals - Connecting Rods - Honda - J-Series
  •            Honda H-beam Connecting Rods
  •            Honda J37 Connecting Rod Wholesale, Rod Suppliers - Hurricanerods.com

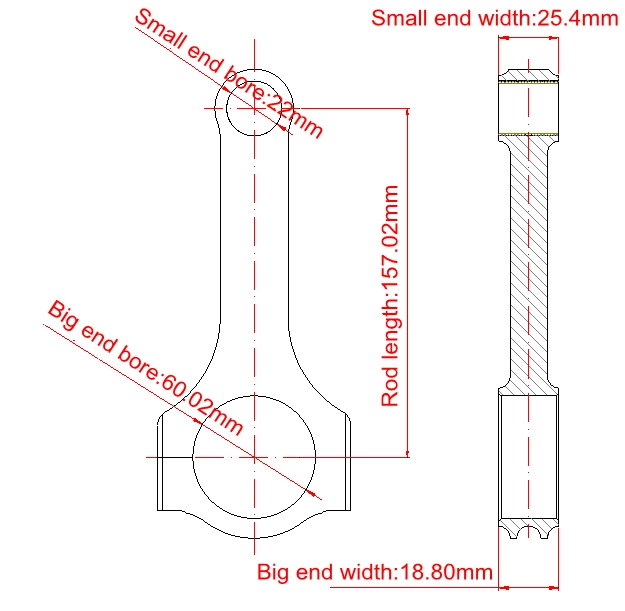

Honda J37 engine forged Connecting rods Main Sizes


 Brand: Hurricane*

 Center to Center Length: 157.02mm/6.182"
 Big End Bore Diameter: 60.02mm/2.363"
 Big End Width:18.80mm/0.740"
 Small End Bore Diameter:22.01mm/0.866"
 Small End Width:  25.4mm/1.000"
 Beam Style: H-beam

Engine - Internals - Connecting Rods - Honda - J-Series J37 Features


 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  595g
 Advertised Horsepower Rating  800hp
 Quantity  Sold as 6 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Custom design Yes, accept

Honda J37 Connecting Rod Wholesale Description


Hurricane Speed and Performance began making and exporting high performance racing connecting rod ssince 2000 in Chengdu ,China. After 19 years' hard-working, Chengdu Hurricane Speed and Performance Co., Ltd., has grown to be a professional high-quality connecting rods manufacturer in automotive aftermarket parts industry and provides products and service for many customers around the world. All Hurricane connecting rods are made from high tensile and fatigue resistance 4340 steel material, designed and evaluated by 3D software , 100% Computer Controlled Numeric(CNC) machined, polished and shot peened to meet high technical standard.



J37

The J37 uses a die-cast aluminum block with aluminum cylinder liners. Primarily due to the cylinder liners being made from aluminum instead of cast-iron the engine weighs less than the J35Z engines. The intake manifold is made from a cast magnesium alloy. Applications:

J37A1
2007-2009 Acura MDX

J37A2
2009-2013 Acura MDX

J37A2
2009-2012 Acura RL

J37A4
2009-2014 Acura TL SH-AWD

J37A5
2010-2013 Acura ZDX
