H-Beam Connecting Rods 6PCS For Toyota Supra 7MGTE 7M-GTE Engines ,151.89mm CC LengthH-Beam Connecting Rods 6PCS For Toyota Supra 7MGTE 7M-GTE Engines ,151.89mm CC LengthH-Beam Connecting Rods 6PCS For Toyota Supra 7MGTE 7M-GTE Engines ,151.89mm CC Length

H-Beam Connecting Rods 6PCS For Toyota Supra 7MGTE 7M-GTE Engines ,151.89mm CC Length

  • Competitive Price
  • Quality Assurance
  • Material : 4340 steel
  • MOQ:80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane*
Engine: Toyota / Lexus 7MGTE 7M-GTE
Part Type: Connecting Rods
Center to Center Length: 151.89mm/5.980"
Big End Bore Diameter: 55.02mm/2.166"
Big End Width: 24.82mm/0.977"
Small End Bore Diameter: 22.00mm /0.866"
Small End Width: 24.82mm/0.977"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 660g/piece
Advertised Horsepower Rating: 900hp
Quantity: Sold as 6 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Toyota Supra 7MGTE Engines H-Beam Connecting Rods Descirpition

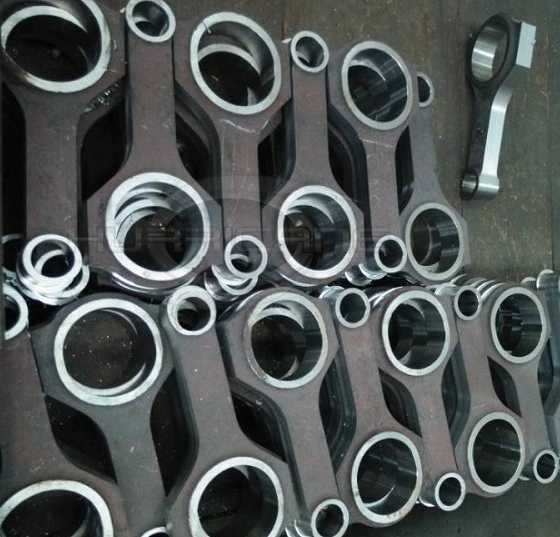

Toyota 7MGTE H beam connecting rods made from high tensile forged aircraft 4340 steel  , the 4340 steel have high toughness and strength in the heat treated condition, so they can provide enough strength.

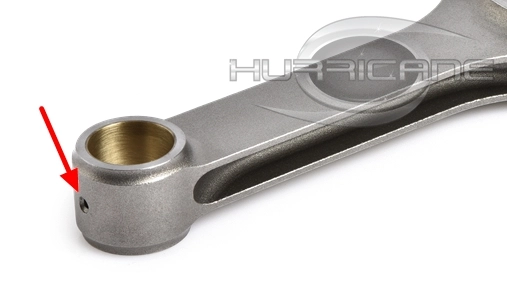

All these H-Beam Connecting Rods for Toyota Supra 7MGTE Engines are 100% machined for high strength and reliability in Hurricane factory, they are shot peened by advanced equipment for high fatigue life, and to meet high quality standard, all the rods will be inspected in per process to guarantee the dimensions are controled well. They are installed with high quality bronze bushing in the small end bore, and a oil hole drilled in the top of small ends to provide better lubrication.



Toyota Supra 7mgte Forged High Performance Connecting Rods use ARP2000 3/8 connecting rods bolts, Hurricane can offer replace conrods bolts, please check more details at: Hurricane Performance Replacement Connecting rods bolts Size: 3/8 x 1.600" inch
Hurricane factory also offer I beam design for Toyota 7M-GTE engine, please check: Toyota Supra 7MGTE Engines I-Beam Connecting Rods

No matter H beam or I beam design, This kind of connecting rods will fits Toyota / Lexus Supra MK3 86-92 MA70, Soarer 86-91 MZ20/MZ21 7M-GTE engines, Overall, these 7MGTE H-beam connecting rods can hold approx 900 HP, any interest for Hurricane conrods, please feel free contact us . 

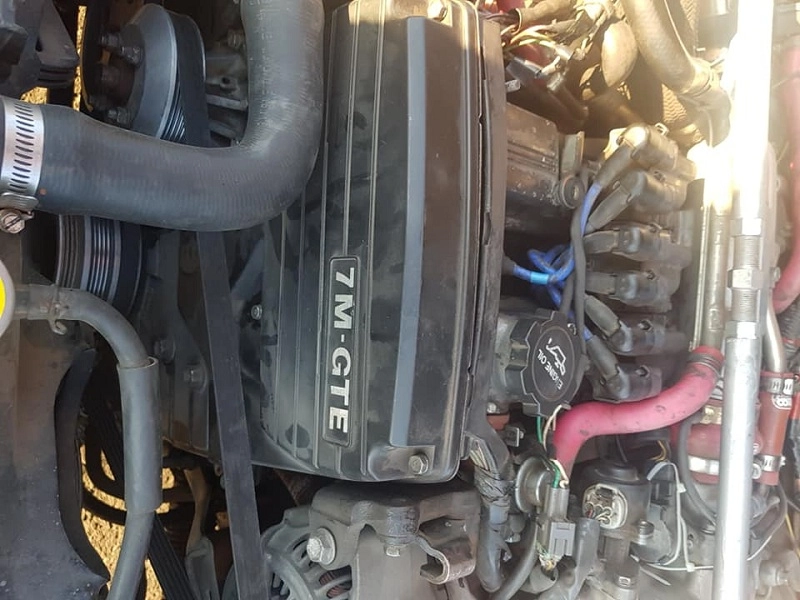

Toyota 7MGTE Engine Picture


Note: Picture from Facebook.
