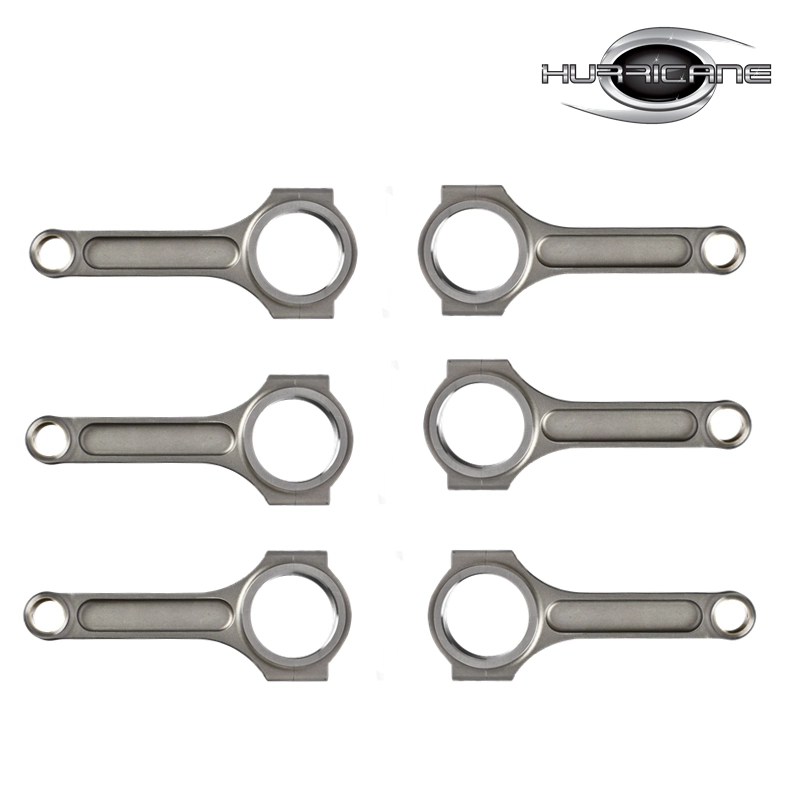

Toyota Supra 7MGTE Engines I-Beam Connecting Rods

Toyota Supra 7MGTE Engines I-Beam Connecting Rods

  • Material: 4340 Steel
  • Bolts: 3/8"
  • Competitive Price
  • High Performance
  • MOQ: 100 pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms: T/T, Paypal, Western Union
  • Keywords: Toyota racing connecting rod
  •           Toyota 7MGTE Connecting Rods
  •           Toyota Supra 7MGTE Steel Rods
  •           Forged Connecting Rods For Toyota 7MGTE Engine
  •           6x I-Beam connecting rods for Toyota 7MGTE Engine

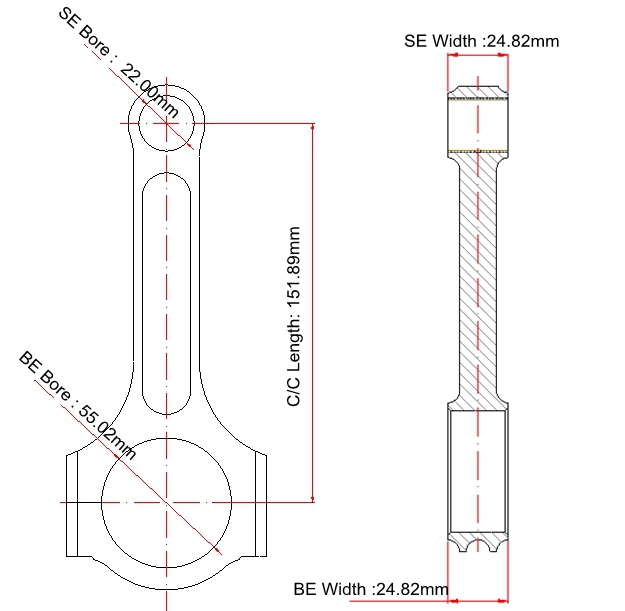

Toyota 7MGTE Connecting Rods Main Sizes

 Brand: Hurricane*
 Center to Center Length: 151.89mm/5.980"
 Big End Bore Diameter: 55.02mm/2.166"
 Big End Width: 24.82mm/0.977"
 Small End Bore Diameter: 22.00mm /0.866"
 Small End Width: 24.82mm/0.977"
 Beam Style: I-beam

TOYOTA Connecting Rods For 7MGTE Engine Features

 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  1000hp
 Quantity  Sold as 6 pieces per set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes, Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes, available
 Custom design  Yes, accept

6x I-Beam connecting rods for Toyota 7MGTE Engine Description

Toyota Supra 7MGTE Steel Rods are engineered from high tensile 4340 forged steel and Heat-treated to Rockwell C34-38. The Toyota 7MGTE Connecting Rods are fully shot peened to relieve stress and End-to-end balanced in +/- 1 gram each set.

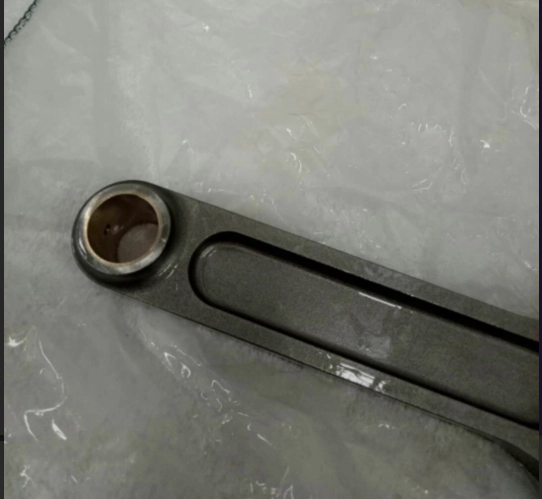

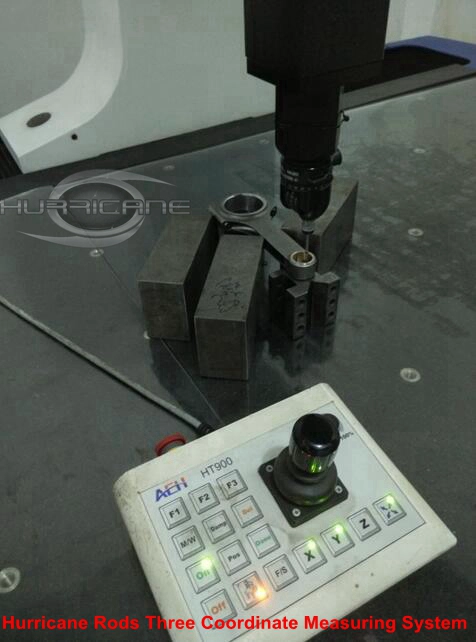

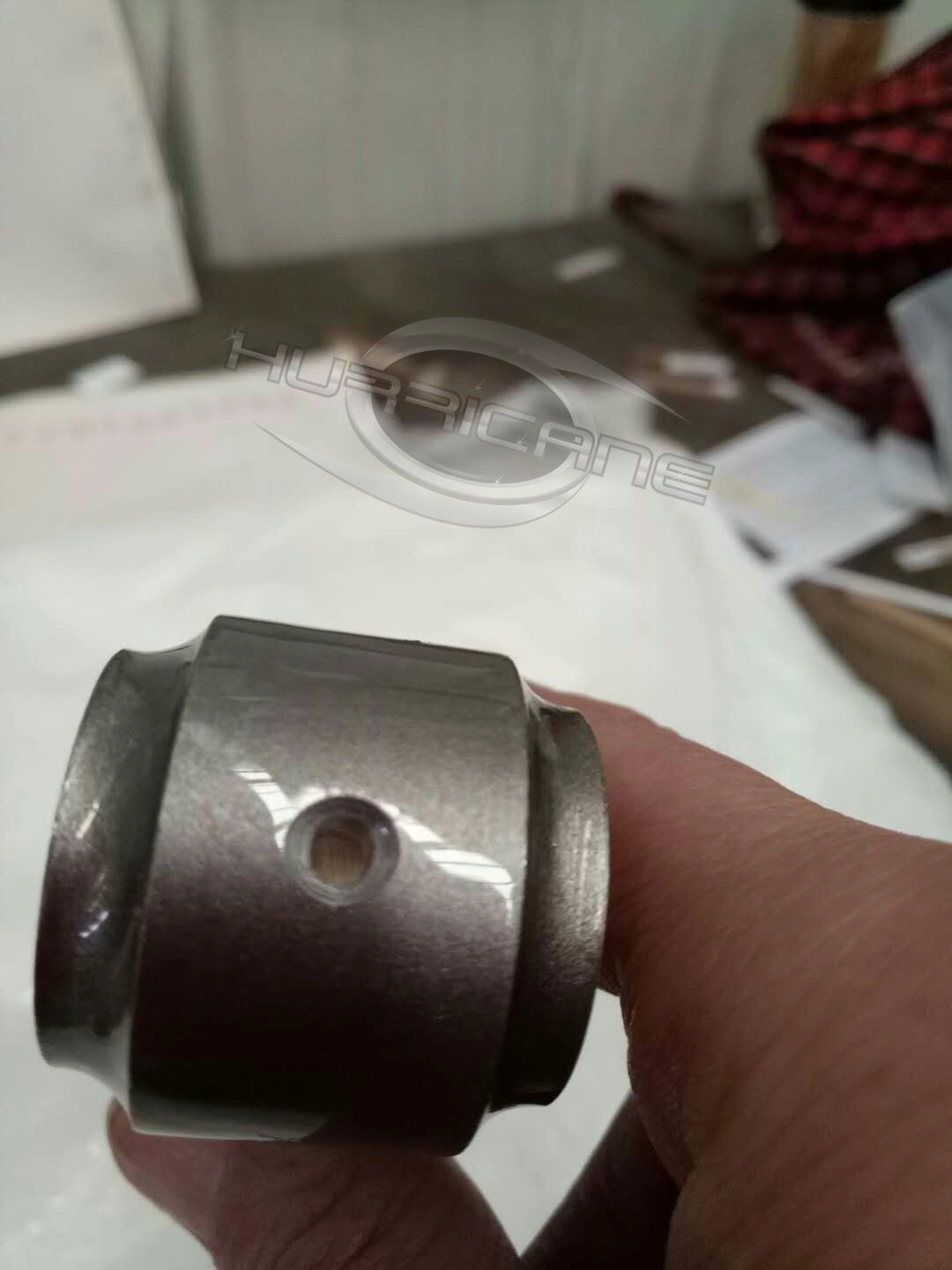

Forged Connecting Rods for Toyota 7MGTE engine bronze bushings are inserted for floating piston pin and they are assembled a tapered oil hole at the top of the small end. All Toyota racing connecting rods are Dimensionally Inspected.

  

7M-GE Applications:
1986–1992 Toyota Supra MkIII (MA70)
1989–1992 Toyota Cressida Mark II (MX83)
Toyota Chaser
Toyota Crown
Toyota Cressida 3.0i Twincam/3.0GLS (MX75) South Africa only

7M-GTE Applications:
1986–1992 Toyota Supra (MA70)[11]
1986–1991 Toyota Soarer (MZ20/MZ21)

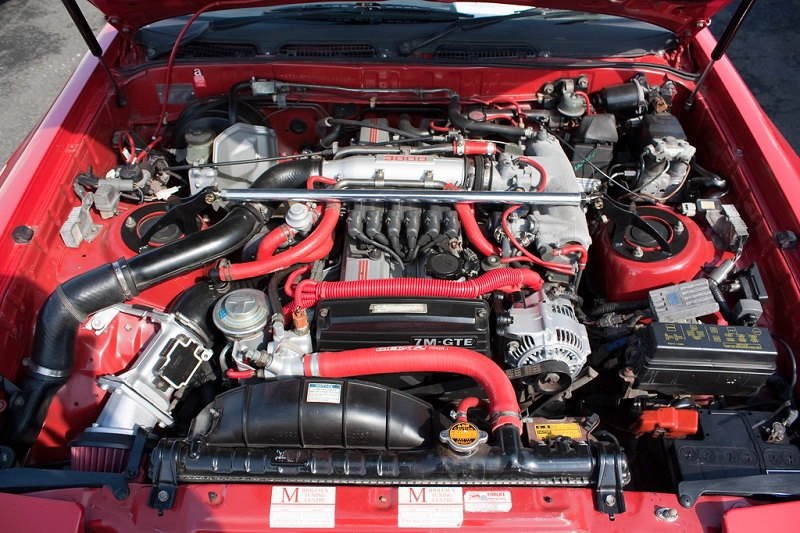

MK3 Supra 7M-GTE Engine


Note: Picture from Flickr.
