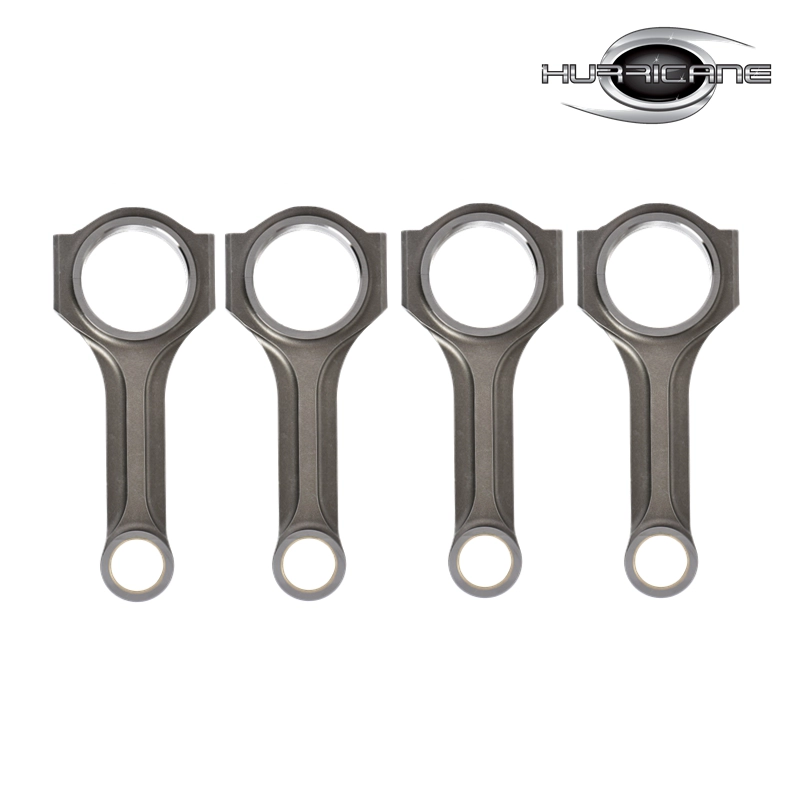

Forged X-Beam Steel Connecting Rod for Nissan SR20 136.3mm Set of 4

Forged X-Beam Steel Connecting Rod for Nissan SR20 136.3mm Set of 4

  • Material : Forged 4340 Steel
  • Bolts : 3/8"
  • 100% CNC Machined
  • MOQ: 100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union

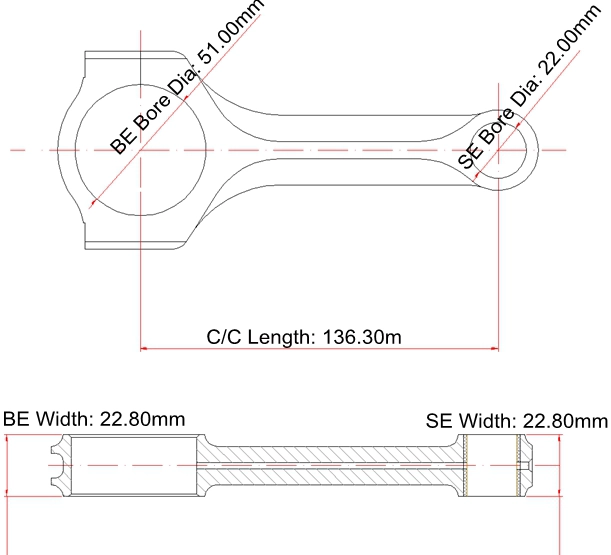

Nissan Sr20de 136.3mm X-beam Conrods Main Dimensions

 Brand: Hurricane
 Center to Center Length: 136.30mm/5.366"
 Big End Bore Diameter: 51.00mm/2.008"
 Big End Width: 22.80mm/0.898"
 Small End Bore Diameter: 22.00mm /0.866"
 Small End Width: 22.80mm/0.898"
 Beam Style: X-beam


Nissan Sr20de 136.3mm X-beam Conrods Features

 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  600hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Additional Description :

1). MOQ: 100pcs per model .

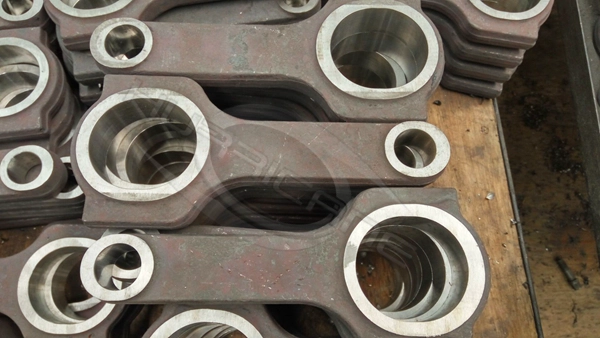

2). Machined from premium 4340 forged steel forgings .



3). Each forging is X-rayed, sonic tested and magnafluxed.

4). Fully shot peening to relieve stress and improve fatigue life .

5). Processed by advanced CNC machine .

6). High quality bronzed bushing inctalled for floating piston pin.

7). Each rods connected by quality dowel sleeves to achieve re-assembling .

8). Per rod finished and honed with tight tolerance for high durability .

9). Packaged in balanced per set: end to end +/- 1 gram .

10).They are fitting with genuine 3/8” ARP bolts.

11). X-beam design combines light weight and high strength.

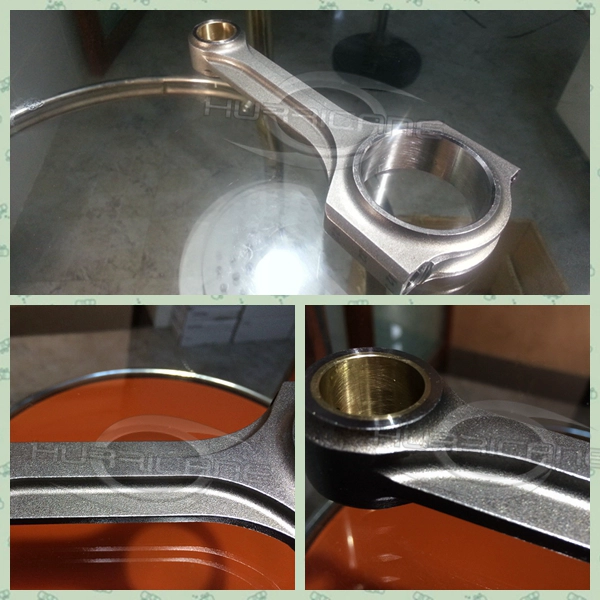

Hurricane Finished X-beam Connecting Rod Picture



Welcome to contact us if you have any further question !
