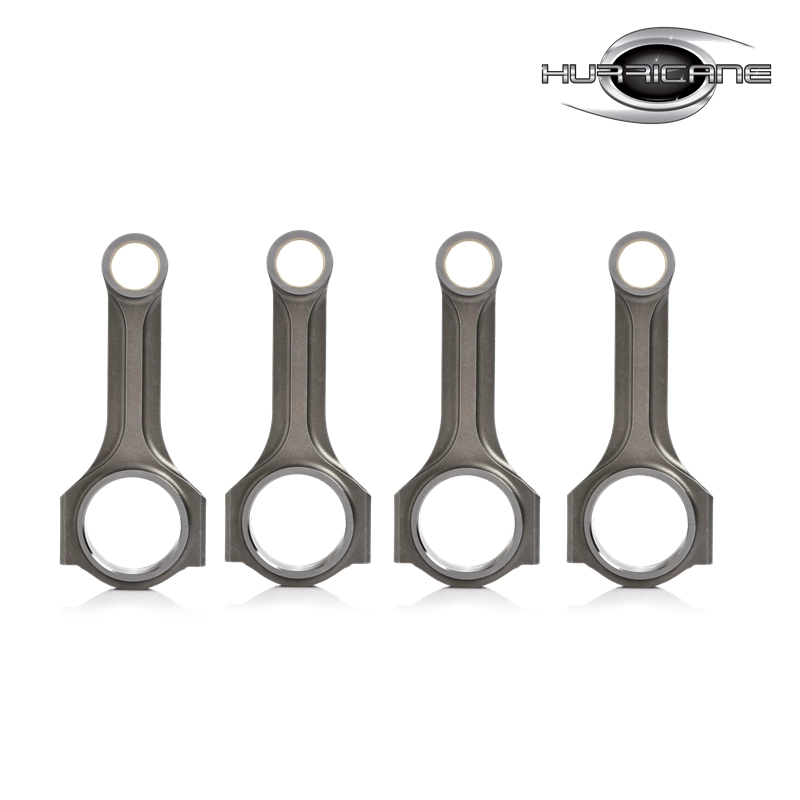

Forged 4340 Connecting Rod for Honda D16L ,138.66mm Rod Length

Forged 4340 Connecting Rod for Honda D16L ,138.66mm Rod Length

  • Forged Steel Connecting Rods
  • High Performance
  • Design: X-Beam;
  • Make: Honda;
  • Engine: D16L
  • MOQ:80pcs
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords: Honda connecting rods
  •           Performance conrod X beam
  •           Honda D16L Race Connecting Rods

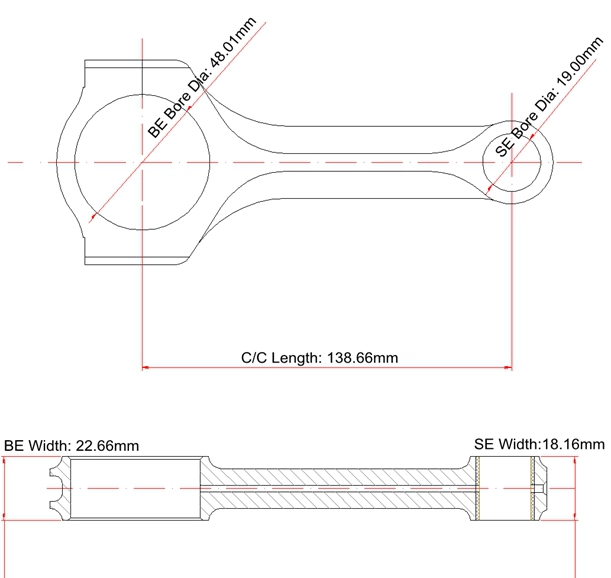

Honda D16L Connecting Rods Mian Dimensions


 Brand: Hurricane
 Center to Center Length: 138.66mm/5.459"
 Big End Bore Diameter: 48.01mm/1.890"
 Big End Width: 22.66mm/0.892"
 Small End Bore Diameter: 19.00mm /0.748"
 Small End Width: 18.16mm/0.715"
 Beam Style: X-beam

Honda D16L Connecting Rods Features


 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXX
 Advertised Horsepower Rating 600hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


Products Description :


1). CNC machined from 4340 EN24 aircraft chrome moly forged steel .


2). X-beam design for for greater strength and lighter weight .


3). All forging are X-rayed, sonic tested and magnafluxed .


4). Heat treated to HRC 34-38 .


5). Bronze bushings inserted in the small ends for floating piston pin .


6). Computer Optimized Design to secure enough strength .


7). Fully Machined and Shot Peened .




8).Packed in balanced sets +/- 1 gram .



Hurricane also produces I-beam and H-beam connecting rods for Honda D16L performance enginers , you can click the link to view more :

4340 Chrome-Moly Connecting rod H-beam for Honda D16L


Any further question, please don’t hesitate to contact us .
