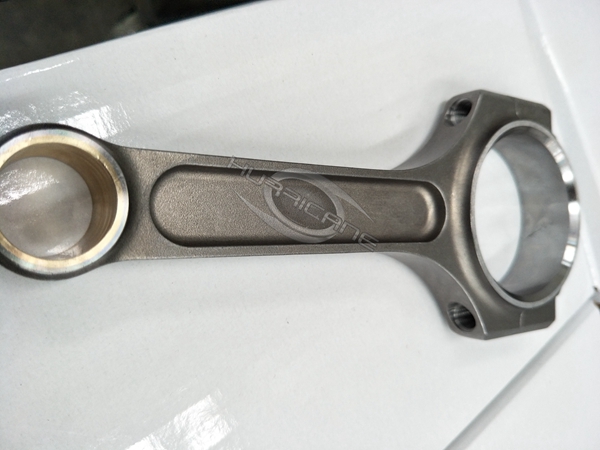

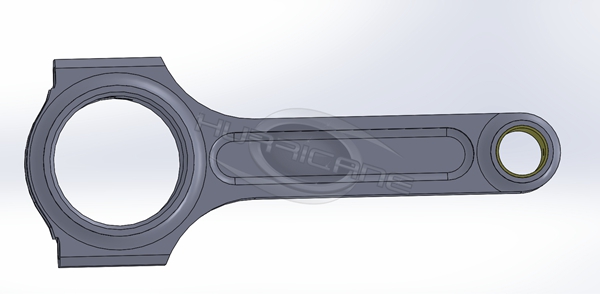

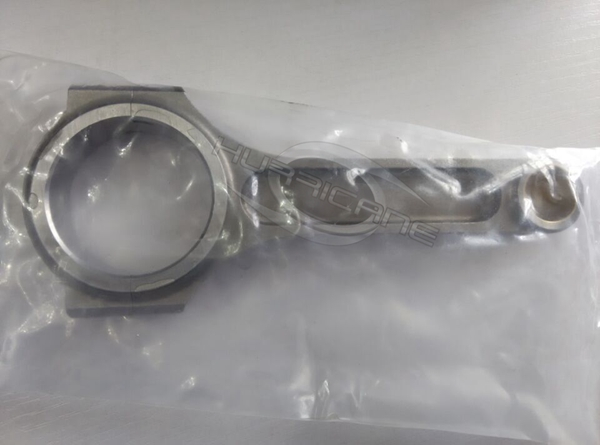

I-Beam Connecting Rods (4 PCS) For Honda D16L Engine, 5.459" Rod Length

Forged Steel Connecting Rods

Design: I-Beam;

Make: Honda;

Engine: D16L

MOQ:80pcs

Delivery Time: If the goods are in stock , the delivery time is 1-3 days.

If the goods are not in stock , the delivery time is 90-95 days .

Payment Terms : T/T , Paypal , Western Union

Keywords: Honda connecting rods

Performance conrod I beam

High quality honda d16l connecting rods

Display Parameters Contact Now

Product Details

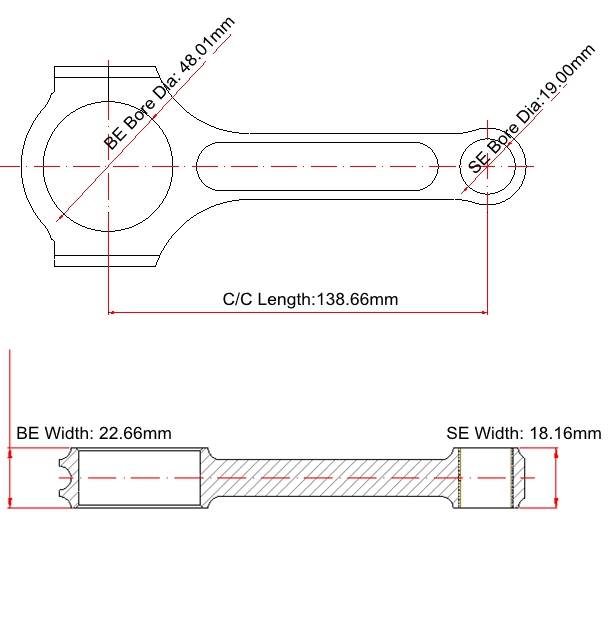

Honda D16L Connecting Rods Mian Dimensions

Brand: Hurricane
Center to Center Length: 138.66mm/5.459"
Big End Bore Diameter: 48.01mm/1.890"
Big End Width: 22.66mm/0.892"
Small End Bore Diameter: 19.00mm /0.748"
Small End Width: 18.16mm/0.715"
Beam Style: I-beam

Honda D16L Connecting Rods Features

Connecting Rod Bolt Diameter	3/8"
Approximate Connecting Rod Weight	XXX
Advertised Horsepower Rating	700hp
Quantity	Sold as 4 pieces /set
Material	Forged 4340 steel
Connecting Rod Finish	Shot-peened, Polished
Pin	Bronze wrist pin bushings
Wrist Pin Style	Floating
Cap Retention Style	Cap screw
Weight Matched Set	Yes ,Balanced +/- 1g
Magnafluxed	Yes
Private Label	Yes ,available
Custom design	Yes, accept

Products Description :

1). Per D16L I-Beam connecting rods are forged from high quality 4340 (En24) steel.

2). I-Beam Shape for extra rigidity, per rod designed, manufactured and tested to meet high quality standard .

3). All surfaces polished and shot peened for more fatigue strength.

4). Magnaflux Inspected and Dimensionally Inspected .

5).100% CNC machined for optimum reliability .

6). Optimal balancing for weight matched sets ± 1gram.

For more I-beam beam style for Hurricane connecting rods ,you can click the link to view more :

Hurricane Connecting Rod Features - Various Beam Designs

Any further question, please don’t hesitate to contact us .
