Chrysler Mopar 426 Hemi H Beam Connecting Rods with 174.24mm C/C lengthChrysler Mopar 426 Hemi H Beam Connecting Rods with 174.24mm C/C lengthChrysler Mopar 426 Hemi H Beam Connecting Rods with 174.24mm C/C length

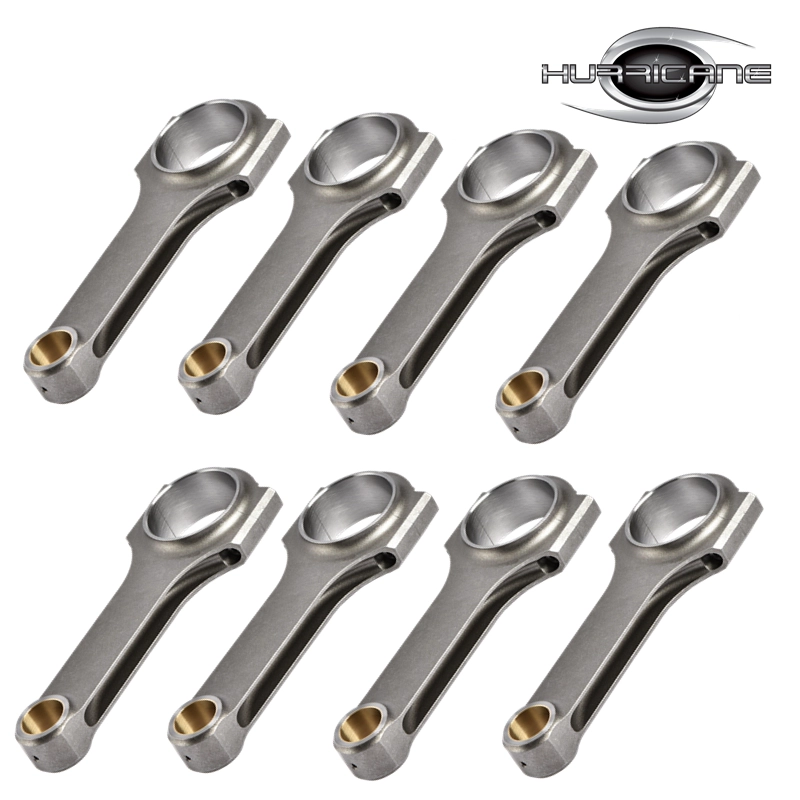

Chrysler Mopar 426 Hemi H Beam Connecting Rods with 174.24mm C/C length

  • Competitive Price
  • Quality Assurance
  • Forged 4340 Steel
  • H-beam Style
  • High Strength
  • MOQ:80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 80-55 days .
  • Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane*
Engine: Chrysler Mopar Hemi 426
Part Type: Connecting Rods
Center to Center Length: 174.24mm/6.860"

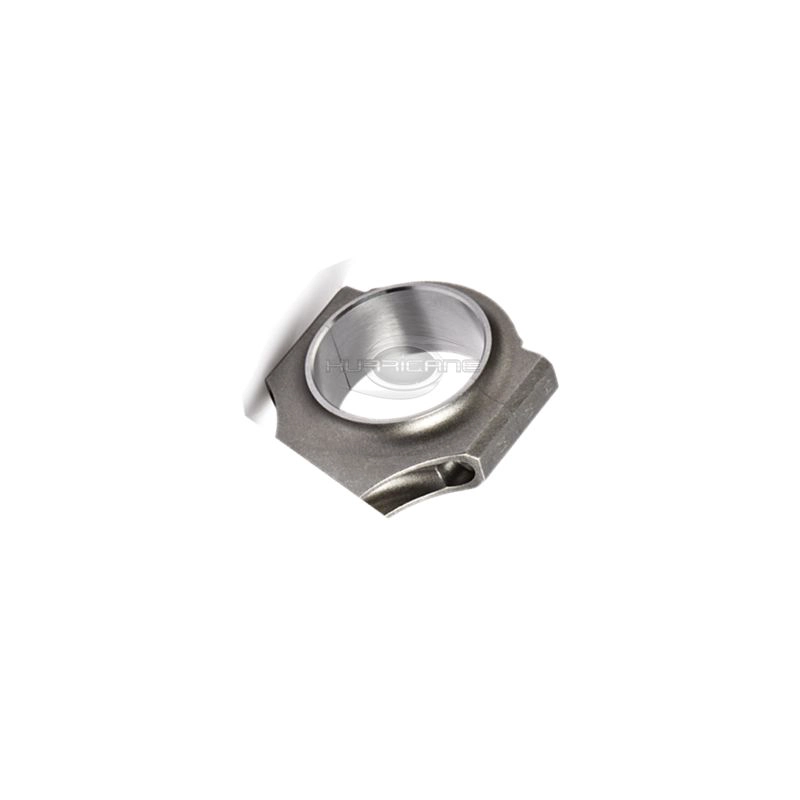

Big End Bore Diameter: 60.33mm/2.375"
Big End Width: 25.58mm/1.007"
Small End Bore Diameter: 26.162mm /1.030"
Small End Width: 25.50mm/1.007"
Beam Style: H-beam

Connecting Rod Bolt Diameter: 7/16"
Advertised Horsepower Rating: 1200hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished

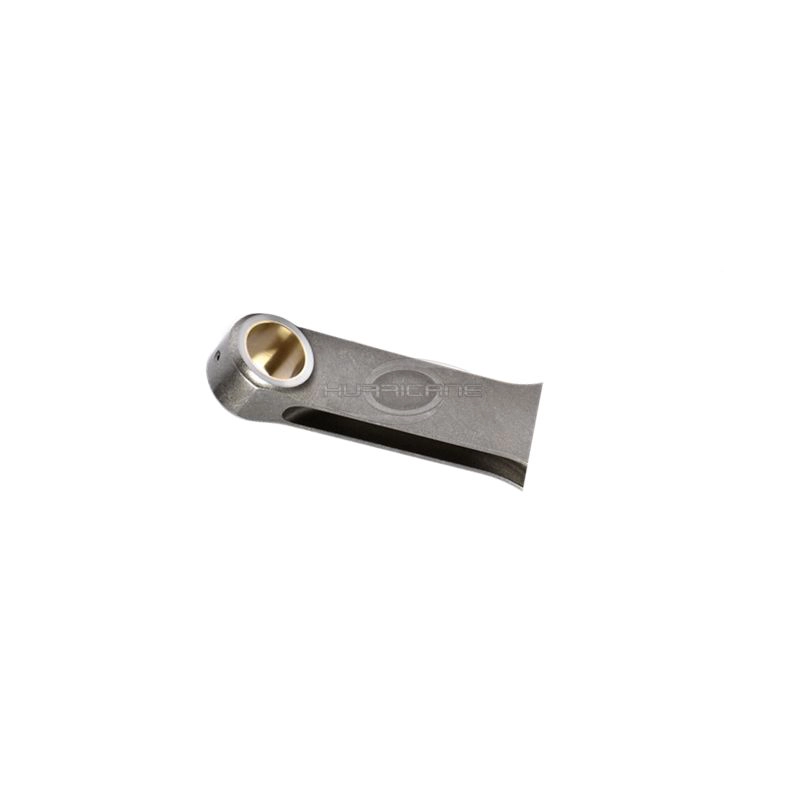

Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

These forged H-Beam connecting rod suit for high performance Chrysler Mopar Hemi 426 applications, engineered from high tensile 4340 steel materialBronze wrist pin bushings are fitted in each rod to increase wear resistance. All rods are heat-treated, X-rayed, sonic-tested, magnafluxed for high strength , all the rods are 100% CNC machined at Hurricane factory to meet high quality standard . And at same price , compared to other rods sold in market , you can see clearly the Hurricane rods finished better . 

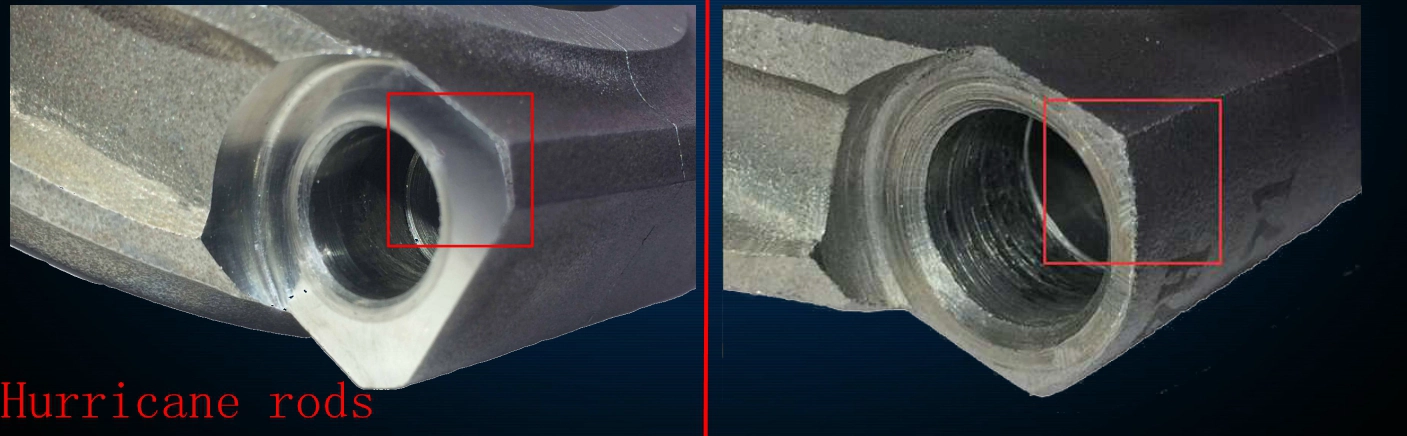

1. Compare- Shoulder Edges

Per Chrysler Mopar Hemi 426 H-beam connecting rod finished with 3x45° edges in the shoulder with CNC machine, then you can see all burrs removed fully ( the left one ) . 

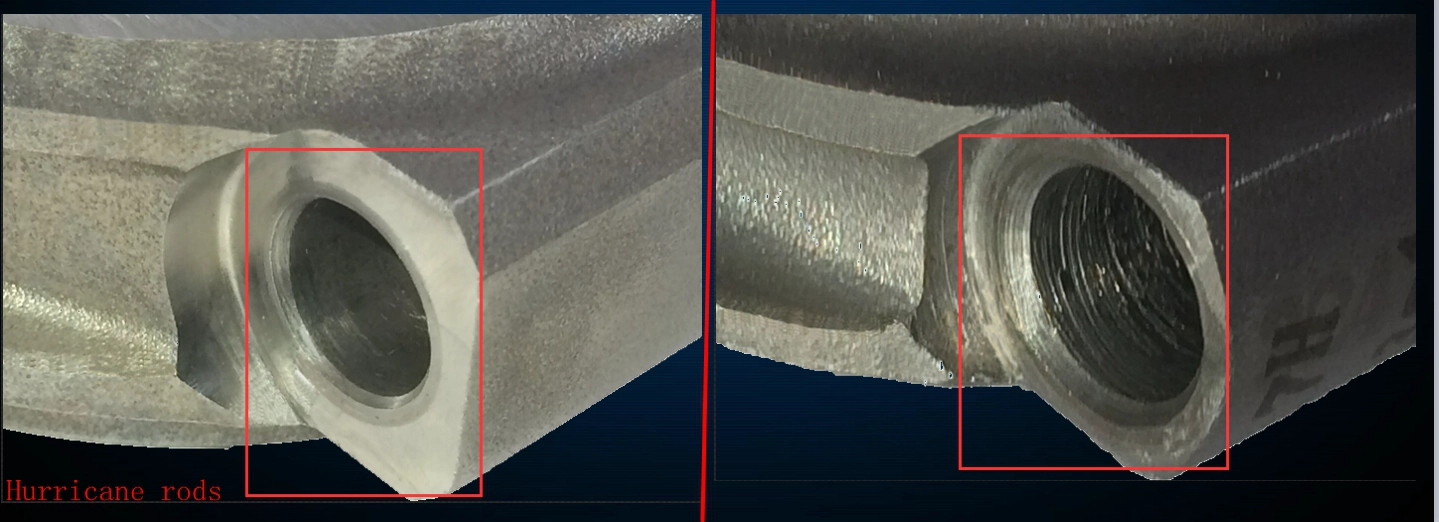

2. Compare-Bolt Seat

You can see the roof `s arch of Hurricane rods ( the left one ) is mellow and full , then it will provide more strength . 

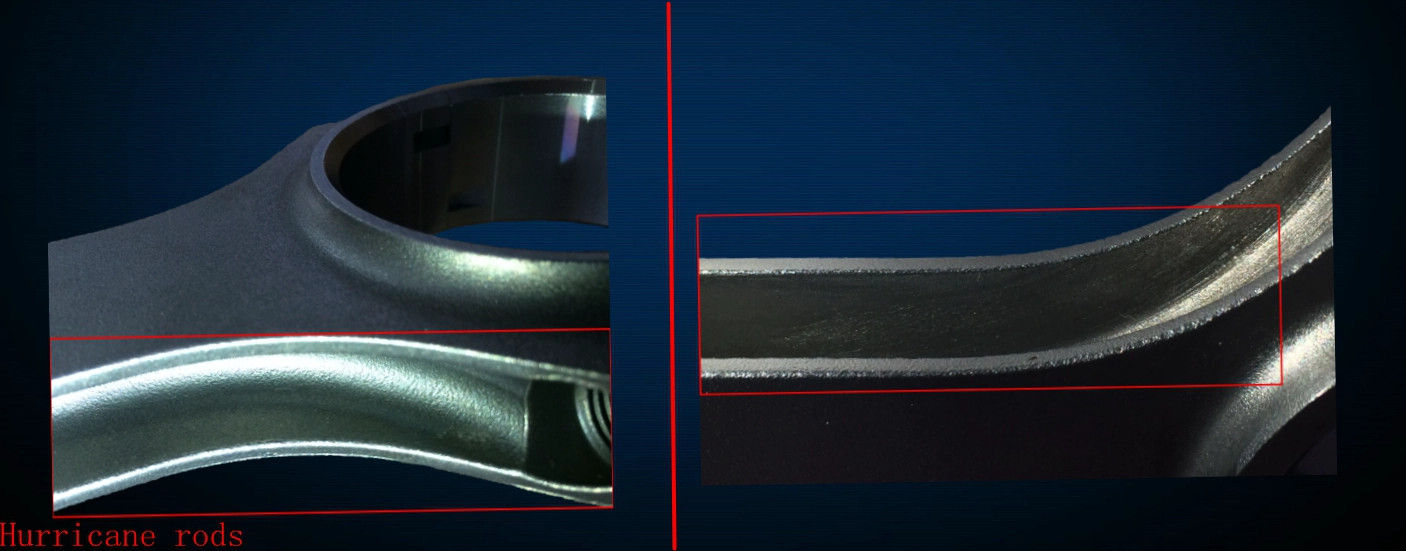

3. Compare-Beam Cut

Hurricane rods ( the left one ) beam  is very smooth and is hard to see the tool vestige.



Hurricane also supply forges rods for different Chrysler engines ,includes:

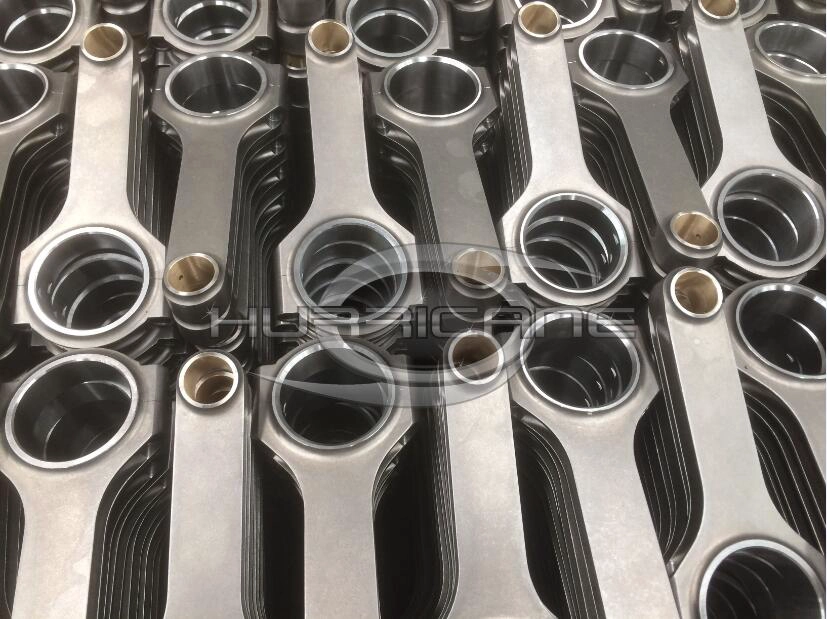

Chrysler Connecting Rods Picture :



Welcome to contact us for more details if any interest . 
Chengdu hurricane speed and performance co., ltd
