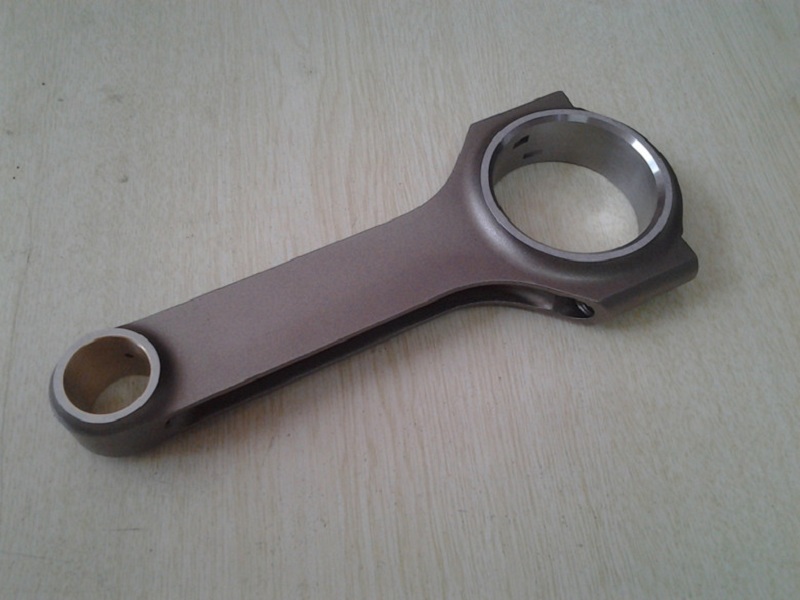

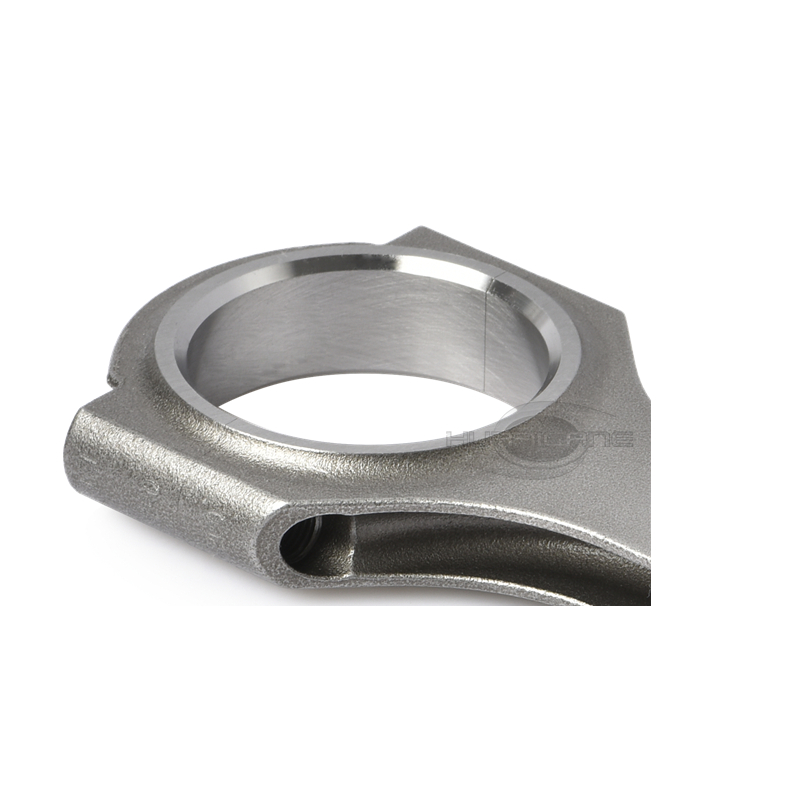

Forged Steel Chrysler BIG BLOCK 7.2L/440 6.760 H beam connecting rods

Forged 4340 Steel
Fully CNC Machine
Competitive Price
Quality Assurance
MOQ：80pieces
Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
If the goods are not in stock , the delivery time is 60-65 days .
Payment Terms : T/T , Paypal , Western Union

Brand: Hurricane
Engine: Chrysler BIG BLOCK 7.2L/440
Part Type: Connecting Rods
Center to Center Length: 171.7mm/6.760"
Big End Bore Diameter: 63.505mm/2.500"
Big End Width: 25.6mm/1.008"
Small End Bore Diameter: 25.146mm /0.990"
Small End Width: 28.70mm/1.130"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 7/16"
Approximate Connecting Rod Weight: 780g/piece
Advertised Horsepower Rating: 1000hp
Quantity: Sold as 8 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Chrysler 440 6.760" Connecting Rods Descripition

Forged 4340 H beam connecting rods for Chrysler BB 6.760" are special CNC machined to ensure smooth connection and free of sharp edge, significantly improved strength. they are balance weighted in set of 8 and can reach 1000 horsepower.

6.760" Forged H-Beam Connecting Rod Mopar RB-Series Features

·High Tensile 4340 Forged Material
·Precision Sized and Balanced
·Dowelled Cap for Precision Fit

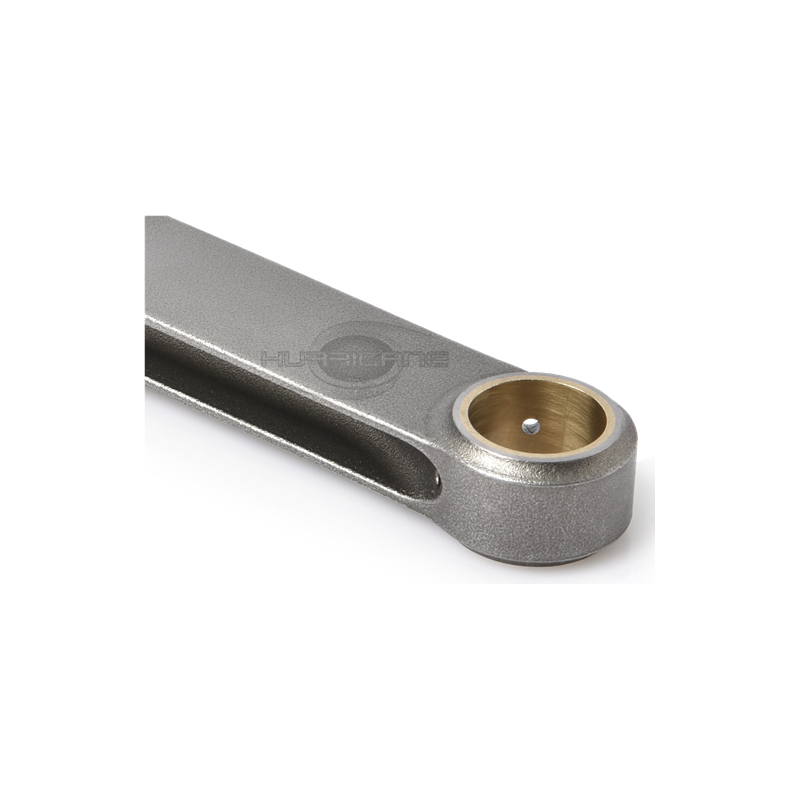

·Silicon Bronze Bushing
·Hurricane Replacement 7/16 Cap Screws
·Ribbed Cap
·shot peened for higher fatigue strength
·All big and small ends are honed by SUNNEN honing machine

If you did not find the performance chrysler connecting rod you need, please contact us for assistance. Hurricane also offer a complete line of Small and Big-Block Chevy, Small and Big-Block Ford, and many more in both the I-Beam and H-Beam designs.

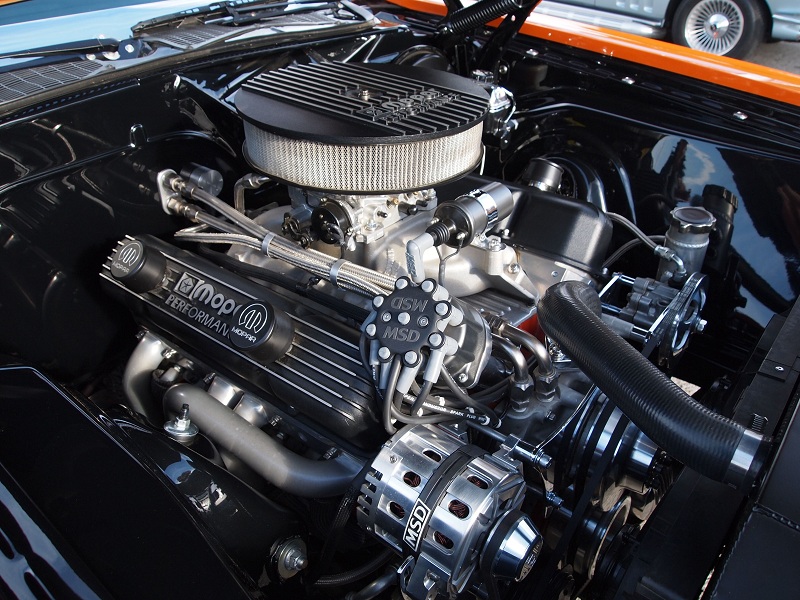

Mopar 440 Engine Picture

Note: Picture from Pinterest.
