BMW M3 S14 2.3L 2.5L I-Beam Connecting Rods 144x52x22mm

BMW M3 S14 2.3L 2.5L I-Beam Connecting Rods 144x52x22mm

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80 pieces, 20 sets
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : BMW M3/S14 performance connecting rods
  •            BMW M3 S14 2.3L & 2.5L I-Beam Connecting Rods
  •            Connecting Rods - BMW - M3/S14B23 S14/B25
  •            Connecting Rod for BMW E30 M3 S14 Engine 144mm Length
  •            Connecting rods kit 144mm for BMW M3 E30 - 2.3 2.5 S14B23 S14B25

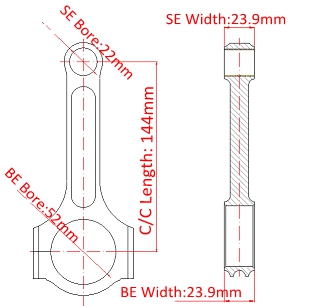

BMW M3/S14 Performance Connecting Rods Main Sizes

 Brand: Hurricane
 Center to Center Length: 144mm/5.670"
 Big End Bore Diameter: 52.00mm/2.047"
 Big End Width: 23.9mm/0.941"
 Small End Bore Diameter: 22mm /0.866"
 Small End Width: 23.9mm/0.941"
 Beam Style: I-beam

BMW M3 S14 2.3L & 2.5L I-Beam Connecting Rods Features

 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx gram
 Advertised Horsepower Rating  800hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Connecting Rods - BMW - M3/S14B23 S14/B25 Detailed Description

BMW M3/S14 performance connecting rods are produced from 4340 forgings and Magnaflux Inspected guarantees that the consistency of the forged material meets our high-quality standard. Connecting Rods - BMW - M3/S14B23 S14/B25 are fully CNC machined for great strength and Shot Peened for improved fatigue life.  BMW M3 S14 2.3L & 2.5L I-Beam Connecting Rods could support 800 Horsepower engine.

Except I beam, Hurricane factory also offer H beam and X beam Connecting Rod for BMW E30 M3 S14 Engine 144mm Length

Connecting Rods Kit 144mm for BMW M3 E30 - 2.3 2.5 S14B23 S14B25 Packing Details:

1. Clean
2. Optimal balancing for weight matched sets of ± 1gram
3. Put rods into rust-proof oil
4. Remove extra oil on rods
5. Packing with rust proof paper first
6. Put them into plastic bag and seal
7. Put every set into white box, and use paper card separate rods
8. Use Carton If shipping by Air-express, use Iron Box if shipping by Sea.

If you have any question about hurricane performance connecting rods, welcome to contact  hurricane team.  Your message are highly welcomed.

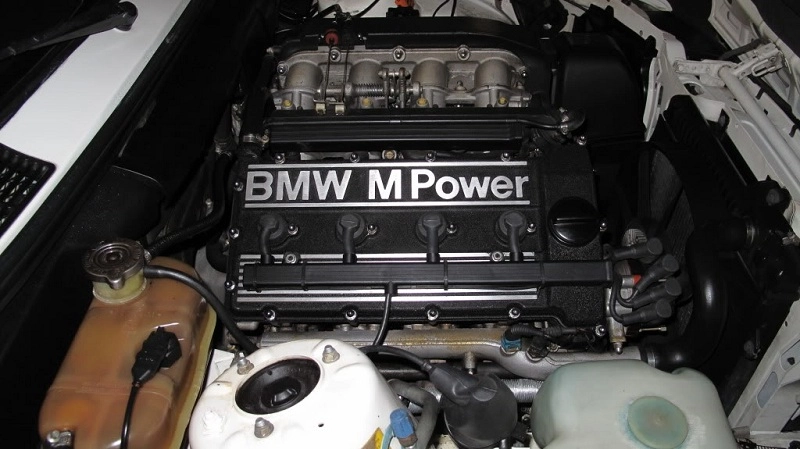

BMW S14 Engine

Note:Picture from Wikipedia.
