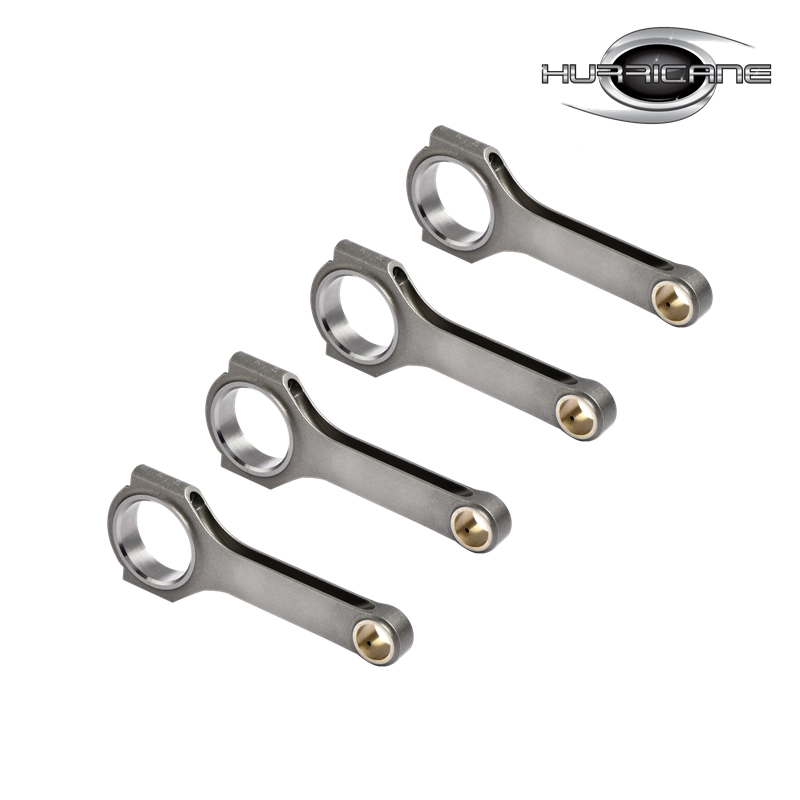

H-Beam Connecting Rod for BMW E30 M3 S14 Engine 144mm Length 2.0 2.3L

  • Competitive Price
  • Quality Assurance
  • MOQ：80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Product Details
Brand: Hurricane
Engine: BMW E30 M3 S14  2.3L
Part Type: Connecting Rods
Center to Center Length: 144mm/5.670"
Big End Bore Diameter: 52.00mm/2.047"
Big End Width: 23.9mm/0.941"
Small End Bore Diameter: 22mm /0.866"
Small End Width: 23.9mm/0.941"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 560g/piece
Advertised Horsepower Rating: 750hp
Quantity: Sold as 4 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

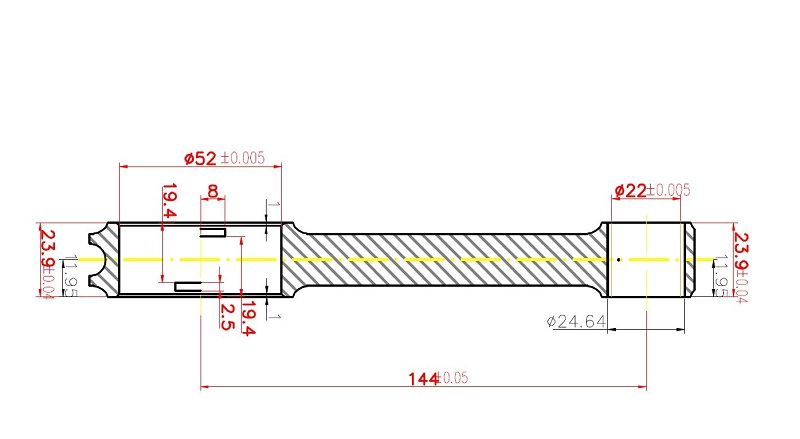

BMW E30 M3 S14 Forged Connecting Rod Main Dimension Drawing



BMW M3 E30 - 2.3 2.5 (S14B23, S14B25) conrods Descripition

Each 144mm S14 conrod is forged from Premium 4340 steel, Hurricane connecting rods come standard with 3/8 rod bolts for superior strength. Bearing bore tolerances are held to +/- 0.005mm. Bronze bushings allow for a full-floating pin. All Hurricane factory BMW E30 connecting rods are honed in-house and sizes are held to some of the tightest accepted tolerances in the industry. Rods are weight-matched into sets and boxed, with the rotating, reciprocating and total weights noted for convenient use in the balancing process.


Note: H-Beam Connecting Rod for BMW E30 M3 S14 Polishing machine progress at Hurricane factory.

4340 Chromoly Lightweight Connecting Rods by Hurricane Machine. Simply put, there is not a better rod on the market. Overall, the clean,windage reducing design and strength of these 144mm BMW performance forged conrods set has proven to be extremely popular with M3 racers, and their consistent high quality and excellent finish has resulted in many satisfied customers. (Weight ~560 grams each).

If you do not find what you need through our website or have any question of our product, please feel free to contact hurricane team and tell us your requirement.

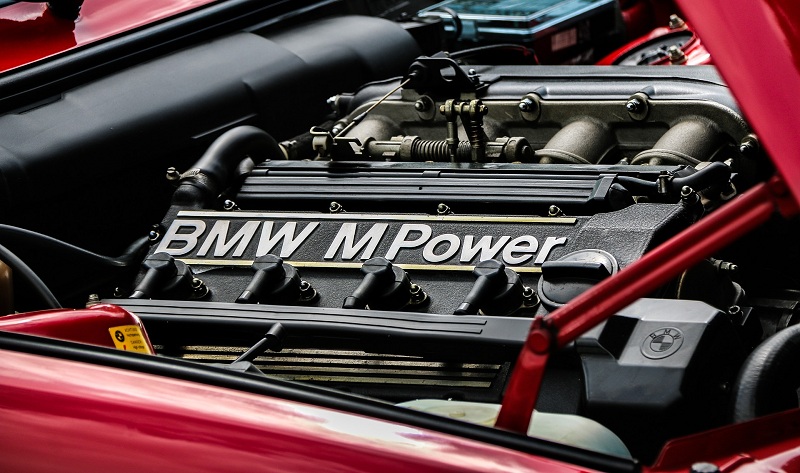

BMW  M Power Engine Picture
