6.300" SBC Chevy Forged I-Beam Connecting Rods

6.300" SBC Chevy Forged I-Beam Connecting Rods

  • Application: Chevy Small Block V8
  • Material : 40CrNiMoA(4340) Forged Steel
  • Bolts : 7/16"
  • Beam Style : I-beam
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Chevrolet Connecting Rods
  •            SBC 6.300" I-beam con rods
  •           GM LS 4340 Racing Connecting Rods

Chevy Small Block V8 Connecting Rods Main Sizes

 Brand: Hurricane
 Center to Center Length: 160.02mm/6.300"
 Big End Bore Diameter: 56.512mm/2.225"
 Big End Width: 23.86mm/0.939"
 Small End Bore Diameter: 23.561mm /0.928"
 Small End Width: 26.95mm/1.061"
 Beam Style: I-beam

Chevy Small Block V8 Connecting Rods Features

 Connecting Rod Bolt Diameter  7/16 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  1000+ hp
 Quantity  Sold as 8 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


Additional Description:

- Designed and engineered from high tensile 4340 Chrome Moly Steel

- Made as I-beam style for superior strength

- Polished and Shot Peening for improved fatigue life

- Magnaflux Inspection to meet high quality standard

- 100% X-rayed, sonic tested and magnafluxed to insure quality

- Fully processed by advanced CNC machining for extreme durability

- Optimal balancing for weight matched sets +/- 1gram

- All big and small ends are finished with honing machine to achieve superior tolerances

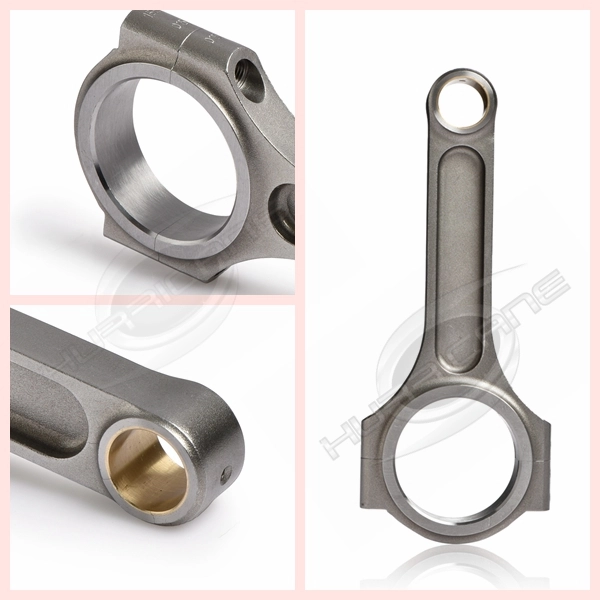

Finished I-beam 4340 Forged Steel Connecting Rods :

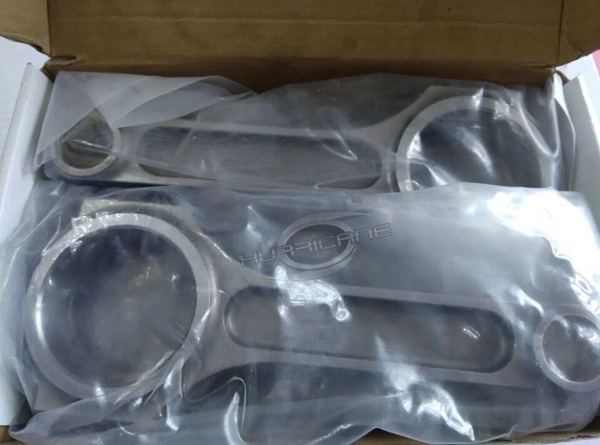

Hurricane connecting rods packing pictures :





Any further question for shipping , please feel free contact us .
