China 4340 connecting rod for Porsche 911 2.4L-2.7L Set of 6 Rod Length 5.031 manufacturer

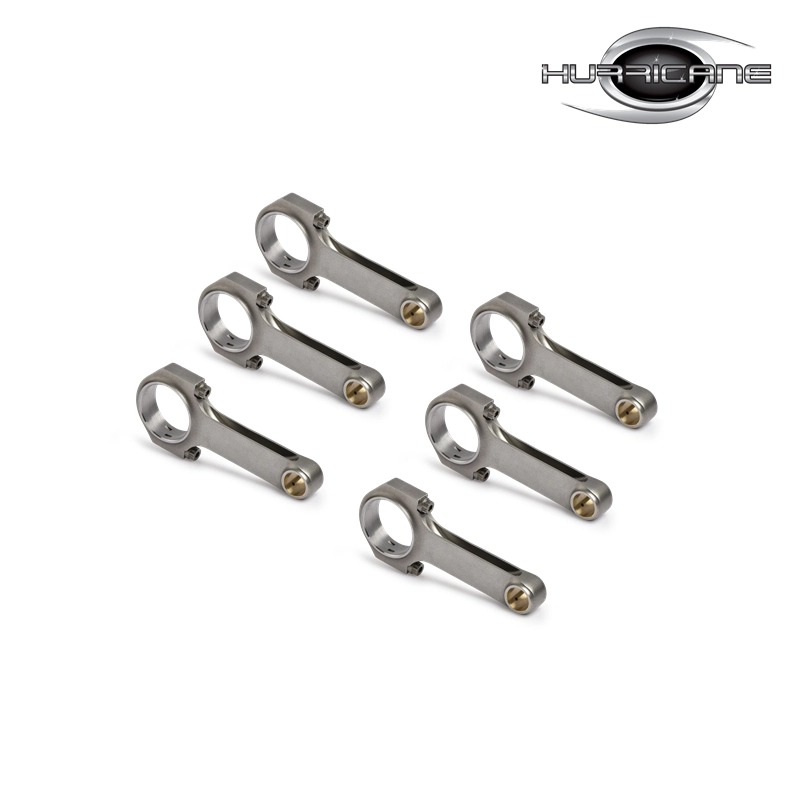

4340 connecting rod for Porsche 911 2.4L-2.7L Set of 6 Rod Length 5.031

  • Material: forged 4340 Steel
  • Design:H beam
  • Competitive Price
  • Quality Assurance
  • MOQ: 100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms: T/T or Paypal
  • Keywords: Porsche 911 hurricane Connecting Rod
  •           4340 Forged CONN RODS PORSCHE 911
  •           Hurricane Speed and Performance - Manufacturer in Connecting Rod
  •           High quality and high performance Porsche connecting rods
  •           Forged Connecting Rods - Custom connecting rod
  • Product Details

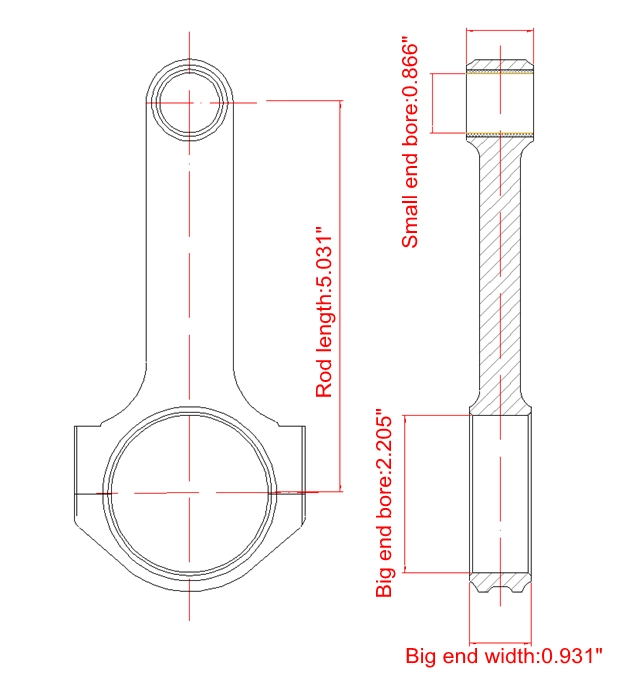

Porsche 911 Hurricane Connecting Rods Main Sizes


 Brand: Hurricane*
 Center to Center Length: 127.79mm/5.301"
 Big End Bore Diameter: 56.007mm/2.205"
 Big End Width: 23.65mm/0.931"
 Small End Bore Diameter: 22.00mm /0.866"
 Small End Width: ~
 Beam Style: H-beam

Porsche 911 2.4-2.7L set of 6 Connecting Rods More Details


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  ~
 Advertised Horsepower Rating  600hp
 Package  6 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

4340 Forged CONN RODS PORSCHE 911 Connecting Rods Features

● Forged 4340/EN24 chrome moly forging;

● Full CNC machined;
● Heat-treated to hardness: 34-38;
● Full coverage shotpeened;

● End-to-end balanced in sets.
● Aluminum bronze wrist pin bushings (standard);
Besides common features, more features could be come true:
● EDM pressure-fed oiling to pin (available at extra cost).
● Custom Pin diameters and center-to-center rod lengths can be ordered at no additional cost.
● Aluminum or 300M;
● Rifle Drilling (special oiling).


 Engine Series  Length  BE bore  BE width  PE bore
 944 & 944 turbo 5.906"  2.165" 1.132"  0.945"
 928  5.906"   2.165" 0.856" 0.945"
 911 2.0-2.2L 5.118"   2.401"  0.856"  0.866"
 911 2.4-2.7L  5.031"   2.205" 0.931"  0.866"
 911 3.0L  5.031"   2.205 0.856"  0.866"
 911 3.2-3.3-3.6-3.8L  5.000"   2.283"  0.856"  0.905"
 993  5.000"   2.283" 0.743"  0.905"
 996  5.710"  2.205" 0.795"  0.866"
 924  5.670"  2.032" 1.098"  0.945"
 914 1.7-1.8L 5.000"   2.276"  1.011  0.945"
 914 2.0L 5.160"   2.079"  1.011" 0.945"

The above list is a sampling of our most popular rods for Porsche engines. It is by no means a complete listing. Keep in mind that we are geared for the production of custom sizes in all engine series. If you need, please feel free to contact us on Live Chat or Email to Marketing@hurricane-rod.com.cn.



Hot Tags : Hurricane connecting rod Forged Aircraft 4340 Steel conrods HUR70-001Z5031 Porsche 911 connecting rod
