China Porsche 944 4340 forged custom connecting rods - Hurricane Speed&Performance manufacturer

Porsche 944 4340 forged custom connecting rods - Hurricane Speed&Performance

  • Material: forged 4340 Steel
  • Design:H beam
  • Competitive Price
  • Quality Assurance
  • MOQ:100 pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms: T/T , Paypal , Western Union
  • Keywords: porsche 944 turbo connecting rods
  •                 porsche 944 for sale
  •                 porsche 944 connecting rod length
  •                 Steel Connecting Rods for Porsche 944
  •                 Custom connecting rods
  • Product Details

Porsche 944 Custom Connecting Rods Main Sizes


 Brand: Hurricane*
 Center to Center Length: 150.01mm/5.906"
 Big End Bore Diameter: 55.01mm/2.165"
 Big End Width: 28.75mm/1.132"
 Small End Bore Diameter: 24.00mm /0.945"
 Small End Width: 25.40mm/1.000"
 Beam Style: H-beam

Porsche 944 Custom Connecting Rods More Details


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  ~
 Advertised Horsepower Rating  600hp
 Package  4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Steel Connecting Rods for Porsche 944 Features

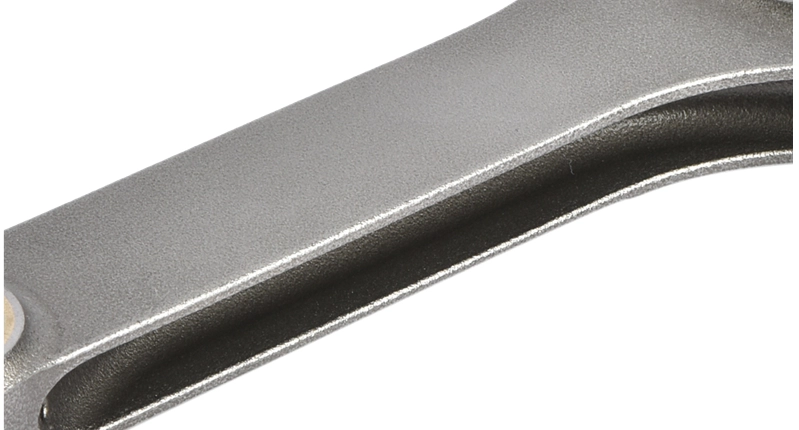

1. H-BEAM SHAPE

H-Beam design providing extended rigidity under vertical load. The best selling option when it comes to forged connecting rods.

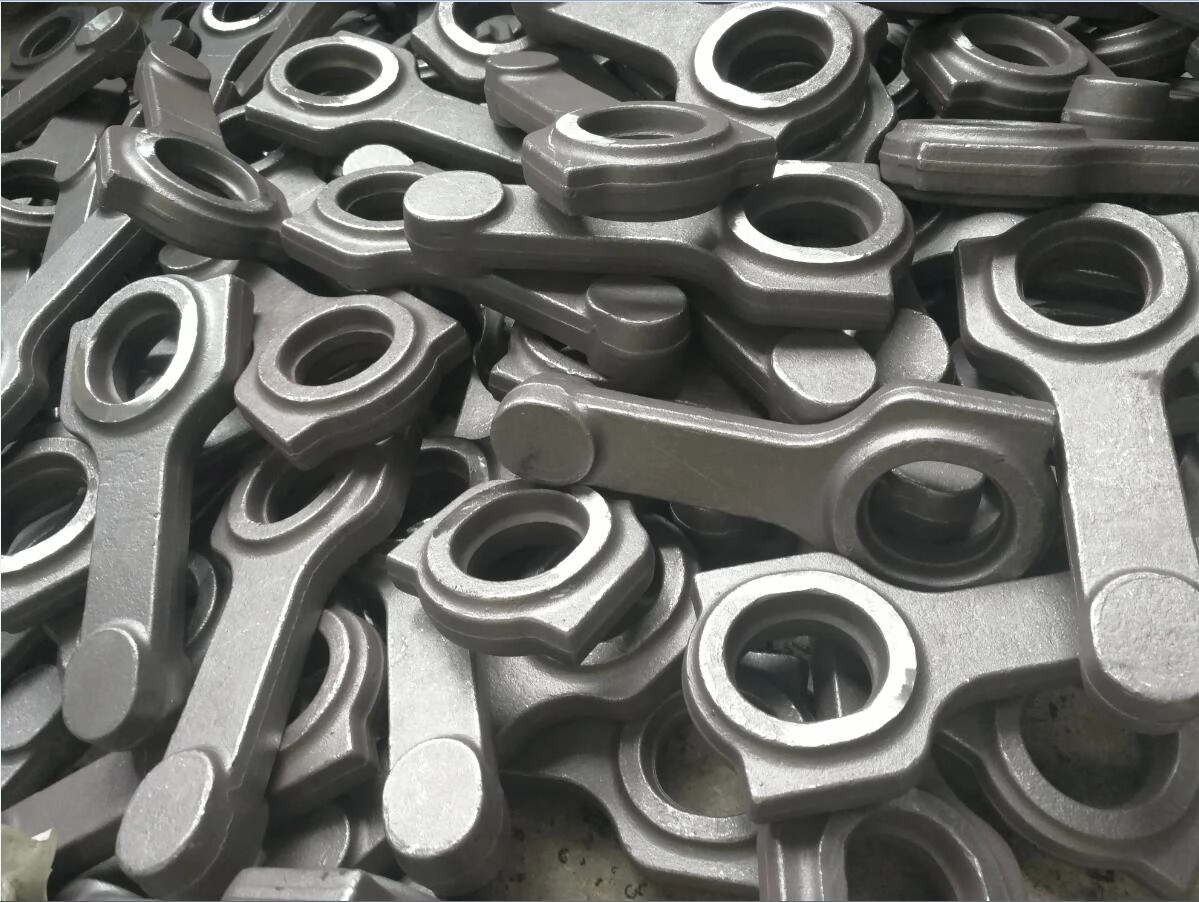

2. Custom connecting rods Material: 4340 forged steel/40CrNiMoA/EN24. Heat treatment: HRC34-38 with temperature:860℃~880℃

Chemical Composition(%)
 C  SI Mn   P  S  W Ni   Cr Cu  Mo   V  TI AI
0.4   0.28  0.72  0.014 0.009  0.01  1.71  0.75   0.09 0.22   0.01  0.01  0.009


This is a std custom connecting rods for Prosche. If you need custom youslef rods, please kindly finish "Hurricane Client Custom Form" online.


Custom porsche rods, such as:


 Engine Series  Length  BE bore  BE width  PE bore
 944 & 944 turbo 5.906"  2.165" 1.132"  0.945"
 928  5.906"   2.165" 0.856" 0.945"
 911 2.0-2.2L 5.118"   2.401"  0.856"  0.866"
 911 2.4-2.7L  5.031"   2.205" 0.931"  0.866"
 911 3.0L  5.031"   2.205 0.856"  0.866"
 911 3.2-3.3-3.6-3.8L  5.000"   2.283"  0.856"  0.905"
 993  5.000"   2.283" 0.743"  0.905"
 996  5.710"  2.205" 0.795"  0.866"
 924  5.670"  2.032" 1.098"  0.945"
 914 1.7-1.8L 5.000"   2.276"  1.011  0.945"
 914 2.0L 5.160"   2.079"  1.011" 0.945"


Note:Picture from Autotrader, Inc
