4340 Forged Steel 6.000" H-beam Connecting rods set for Nissan RB304340 Forged Steel 6.000" H-beam Connecting rods set for Nissan RB304340 Forged Steel 6.000" H-beam Connecting rods set for Nissan RB30

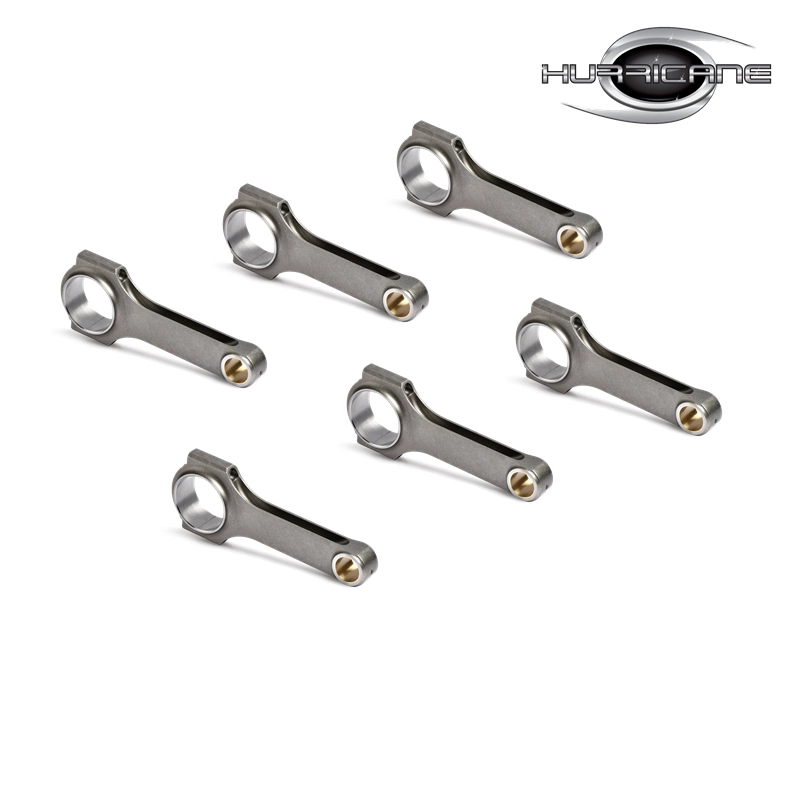

4340 Forged Steel 6.000" H-beam Connecting rods set for Nissan RB30

  • Competitive Price
  • Quality Assurance
  • MOQ:80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •                  If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
Brand: Hurricane
Engine: Nissan RB30ET (SOHC), RB30DET (DOHC) and RB30
Part Type: Connecting Rods
Center to Center Length: 152.4mm/6.000"
Big End Bore Diameter: 52.85mm/2.081"
Big End Width: 21.86mm/0.861"
Small End Bore Diameter: 22mm /0.866"
Small End Width: 21.76mm/0.857"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 570g/piece
Advertised Horsepower Rating: 900hp
Quantity: Sold as 6 pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept

Hurricane Nissan RB30 H beam 152.4mm conrods Descripition


Please check hurricane Nissan RB30 connecting rods main dimensions, tolearance and bearing tag sizes at below drawing.



Nissan Performance 6.000" 152.4mm connecting rods are direct fits all Nissan / Holden RB30 engines. There is no machining of any sort required. They suit RB30ET (SOHC), RB30DET (DOHC) and RB30 engines. each rod is bronze bushed for full floating applications. Pin end oil holes provides additional lubrication and cooling. H beam design can handle higher compressive loads. It is also affordable for customers who have a limited budget.

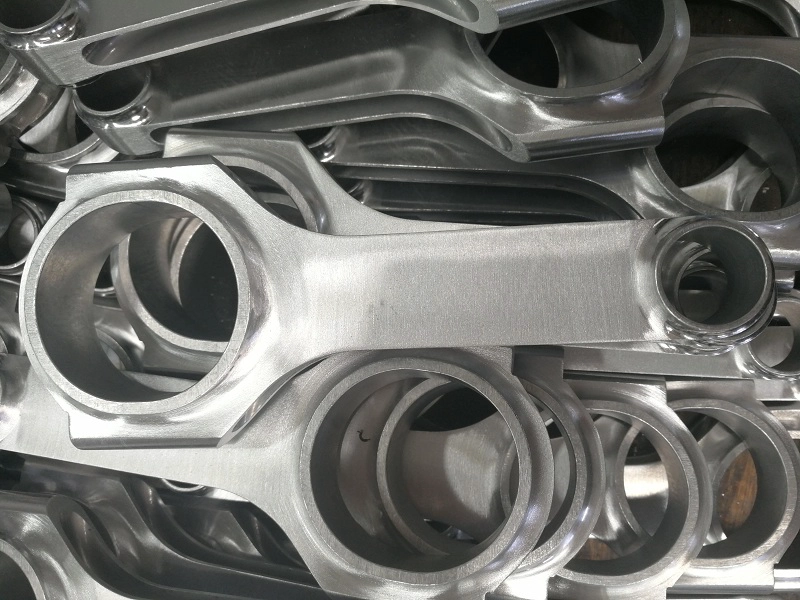

Hurricane finished performance conrods are manufactured using the Grade Tested (X-Ray & Sonic) 4340 Steel ONE Piece Forging, 100% CNC finished, Mirco Polished and Shot Peen with Hardness Treated (38-42HRC). Those progresses leaves tough and beautiful shinny appearance on conrods surface.  You can check more details at our News Page: Connecting rods Shot Peening and Mirco-Polishing, Special A-level appearance



Except H beam, Hurricane can also offer I beam design for your Honden / Nissan Firged conrods needs.

If you have any other concern or questions to our product, please feel free contact us, all emails will get responsed with 24 to 48 hours.




Nissan Skyline Car Picture
