Brand: Hurricane Engine: BMW E36 M50B25 M50B28Part Type: Connecting RodsCenter to Center Length: 135mm/5.315"Big End Bore Diameter: 48mm/1.890"Big End Width: 21.79mm/0.858"Small End Bore Diameter: 22mm /0.866"Small End Width: 21.79mm/0.858"Beam Style: H-beam
-Connecting-Rods-Custom-conneting-rods.jpg.webp "China Honda / Acura K Series (K20 & K24) Connecting Rods - Custom conneting rods manufacturer")
Brand: Hurricane Engine: Honda K24Part Type: Connecting RodsCenter to Center Length: 151.99mm/5.984"Big End Bore Diameter: 51.006mm/2.008"Big End Width: 19.8mm/0.780"Small End Bore Diameter: 22.015mm /0.867"Small End Width: 19.8mm/0.780"Beam Style: H-beam
Brand: Hurricane Engine: BMW N54B30 N54Part Type: Connecting RodsCenter to Center Length: 145mm/5.709"Big End Bore Diameter: 53.6mm/2.110"Big End Width: 20.86mm/0.821"Small End Bore Diameter: 22mm /0.866"Small End Width: 20.90mm/0.823"Beam Style: H-beam
Brand: Hurricane Engine: Honda Acura RSX 2.0 VTEC K20 K20A K20A2Part Type: Connecting RodsCenter to Center Length: 138.98mm/5.472"Big End Bore Diameter: 51mm/2.008"Big End Width: 19.8mm/0.7795"Small End Bore Diameter: 22mm /0.8661"Small End Width: 19.8mm/0.7795"Beam Style: H-beam
Hurricane factory manufactured in a wide variety of strokes with either VW or Chevy journals to fit your exact engine configuration. All of hurricane ...
With many years experience of designing, developing , engineering and manufacturing in the connecting rods fields, Hurricane has ability to handle different customers needs on connecting rods designs . Except connecting rods shoulder and small end, Hurricane also can build various connecting rods beam style .
Main rods includes Chevy,Ford, Harley Davidson, VW & Audi, Opel, Honda, Nissan,Subaru, Mitsubishi, Toyota, Isuzu, Suzuki, Mazda, Buick, BMW, Chrysler & Dodge, Fiat
Here in the following process of pictures are the 13 major operations undertaken in the production of Hurricane Speed&Performance:
Forging and billet as two different manufacturing processes to make high performance connecting rods, both can produce strong finished produc
Honda / Acura J35 Connecting Rods Features:
1. Manufactured from high strength 4340 Chrome Moly Steel
2. Designed and fully processed by CNC machine
3. Three std design for various application: H-beam, I-beam and X-beam
4.100% X-rayed, sonic tested and magnafluxed to insure quality
5. All big and small ends are finished with honing machine
6. Small ends came with Alum/Sil Bronze bushing(QAL10-3-1.5) suitable for the floating piston pin
7. All surfaces shot peened and stress relieved
8. Packaged in balanced per set: end to end +/- 1 gram

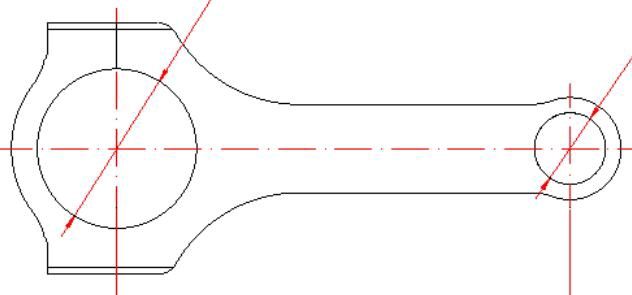

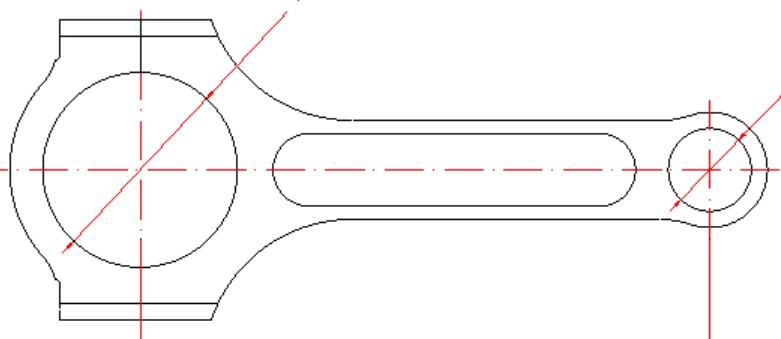

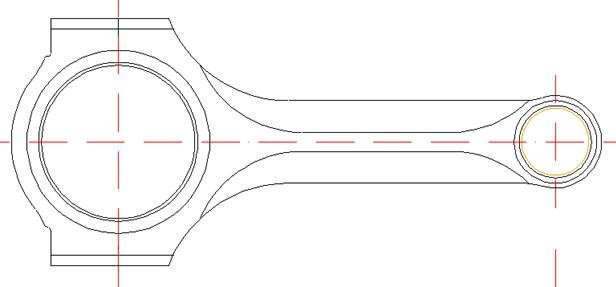

At present, three kinds of design can be made and provided for you directly, link:
| Engine model | Beam style |
Package | Full specs link | Design art |
| Honda/Acura J35 158.5×22mm |
H-beam | 6pcs/set | High performance Honda J35 forged 4340 rods 6.240" length |  |
| Honda/Acura J35 158.5×22mm | I-beam | 6pcs/set |
Forged 4340 Steel connecting rod set for Honda J35,158.5mm rod length |  |
| Honda/Acura J35 158.5×22mm | X-beam | 6pcs/set | Hurricanerods.com 4340 Chrome-Moly Connecting Rods for Honda J35 W/ Arp2000 |  |
Application:
J35A1
1999 - 2001 Honda Odyssey
J35A3
2001 - 2002 Acura MDX
2004 - 2007 Saturn Vue L66
J35A4
2002 - 2004 Honda Odyssey
2003 - 2004 Honda Pilot
J35A6
2005+ Honda Odyssey Van, LX, EX
2005 Honda Pilot
J35A7 - Variable Cylinder Management Piston Oil Jets
2005+ Honda Odyssey EX-L, Touring
2007+ Honda Inspire
J35A8
2005 - 2008 Acura RL
2007 - 2008 Acura TL Type-S
J35A9
2006 - 2008 Honda Ridgeline
2006 - 2008 Honda Pilot (VTM-4-equipped models)
Among Honda / Acura, J series connecting rods are our best-seller list. Besides them, all Acura & Honda Rods before we made are here, p;ease kindly explore as if you want. If not, please contact us online or by email: marketing@hurricane-rod.com.cn.
