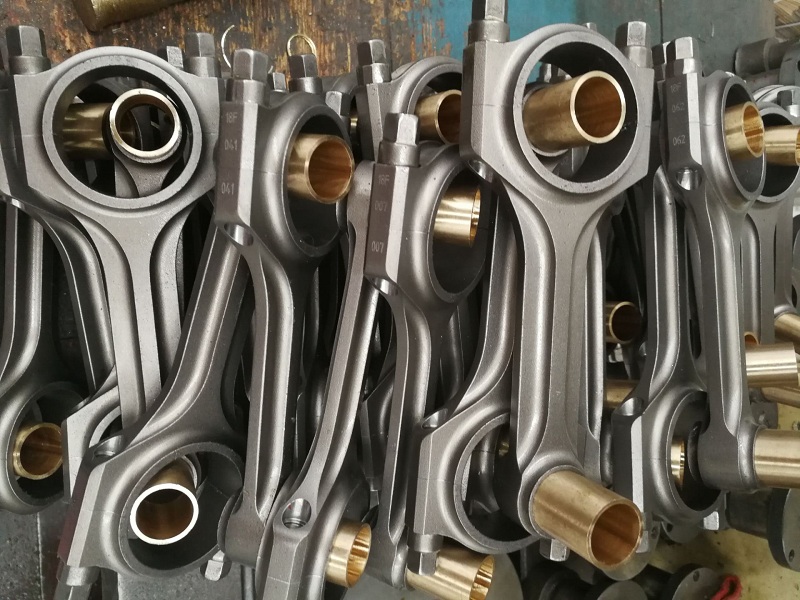

X beam Forged Steel 139.5mm Connecting Rods For 5 Cylinder Volvo  850 C70 B5234

X beam Forged Steel 139.5mm Connecting Rods For 5 Cylinder Volvo 850 C70 B5234

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80 pieces, 16 sets
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords : Forged Connecting Rod for Volvo B5 139.5mm
  •            Volvo B5 5 Cylinder 139.5mm connecting rods
  •            139.5mm Forged X Beam Connecting Rods Volvo B5254
  •            Performance conrods for Volvo 850 C70 T5 2.3L B5234T
  •            Volvo 850 T5 C70 V70 2.3L 4340 Forged Steel X-Beam Connecting Rods 139.5mm

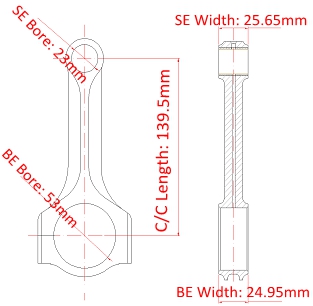

Forged Connecting Rod for Volvo B5 139.5mm Main Sizes


 Brand: Hurricane
 Center to Center Length: 139.5mm/5.492"
 Big End Bore Diameter: 53.00mm/2.087"
 Big End Width: 24.95mm/0.982"
 Small End Bore Diameter: 23mm /0.906"
 Small End Width: 25.65mm/1.010"
 Beam Style: X-beam

Volvo B5 5 Cylinder 139.5mm connecting rods Features


 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx gram per piece
 Advertised Horsepower Rating  850 HP
 Quantity  Sold as 5 pieces per set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes Balanced +/- 1g per set
 Magnafluxed  Yes
 Private Label  Yes, available
 Custom design  Yes, accept


Performance conrods for Volvo 850 C70 T5 2.3L B5234T Description


Volvo B5 5 Cylinder 139.5mm connecting rods are forged from SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing. 139.5mm Forged X Beam Connecting Rods Volvo B5254 are designed to support 850 horsepower.



Hurricane Volvo 850 T5 C70 V70 2.3L 4340 Forged Steel X-Beam Connecting Rods 139.5mm are ready for install bushings.


Performance conrods for Volvo 850 C70 T5 2.3L B5234T Additional machining processes

1. Dowel sleeves for perfect fit and accurate re-assembling

2. Multi Stage Heat Treatment for maximum strength, dimensional stability, and fatigue life

3. Uniform machine peeningfor greater strength

4. Dimensionally Inspected

5. Optimal balancing for weight matched sets of ± 1gram


KIT CONTENTS

Five (5) pieces performance conrods for Volvo 850 C70 T5 2.3L B5234T, 23mm wrist pin
Ten (10) pieces Hurricane 3/8" Connecting Rod Bolts

Thanks for checking hurricane products, lease feel free to email us with your inquiry and requirement..

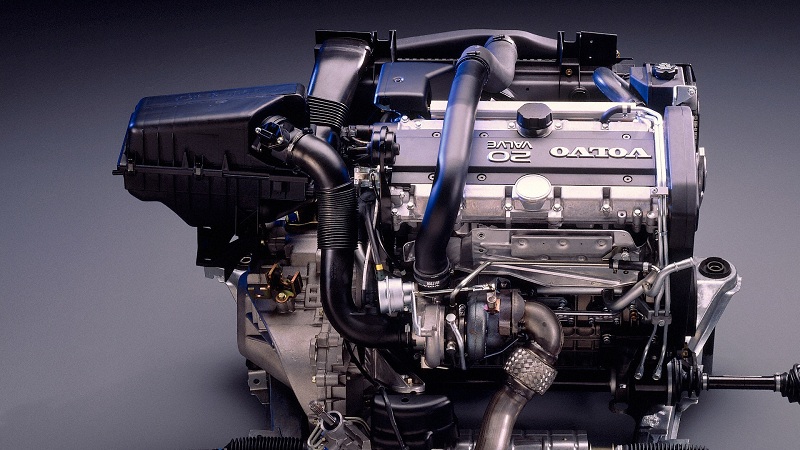

Volvo 850 Engine 



Note:Picture from Motor1.
