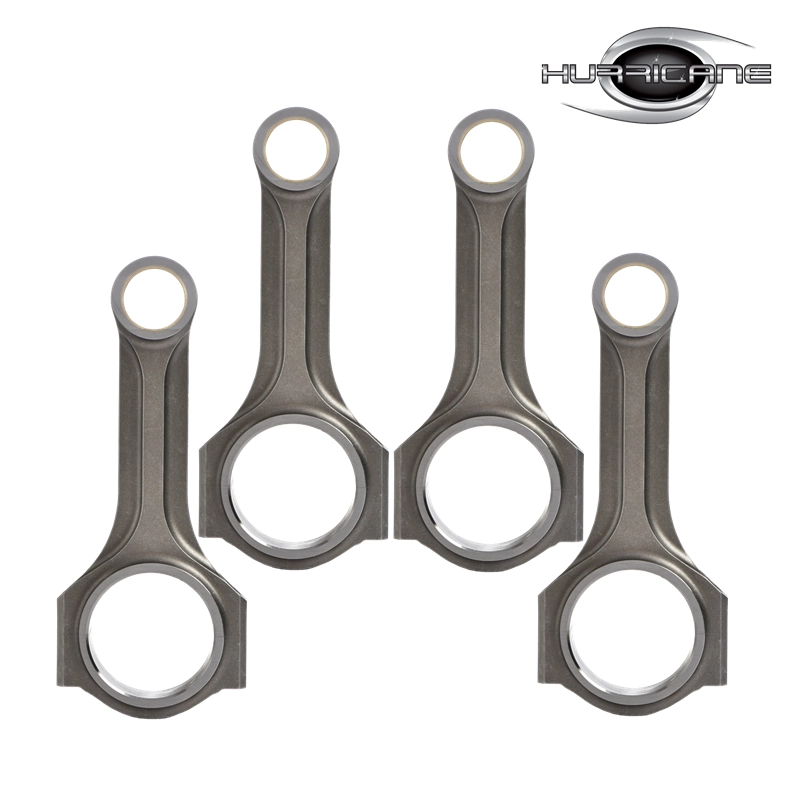

X Beam Forged Connecting Rod For Mazda 3 MZR 1.6L Race Engine

X Beam Forged Connecting Rod For Mazda 3 MZR 1.6L Race Engine

  • Material : 4340 Forged Steel
  • 100% CNC Machined
  • Bolts Threads: 3/8"
  • Competitive Price
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :    Mazda MZR 1.6L Connecting Rods
  •               Mazda MZR Racing Conrods

Mazda MZR 1.6L X-beam Connecting Rods Main Sizes

 Brand: Hurricane *
 Center to Center Length: 135mm/5.315"
 Big End Bore Diameter: 51mm/2.008"
 Big End Width: 21.87mm/0.861"
 Small End Bore Diameter: 19mm /0.748"
 Small End Width: 21.87mm/0.861"
 Beam Style: X-beam

Mazda MZR 1.6L X-beamConnecting Rods Features

 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXXg
 Advertised Horsepower Rating  600hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

Additional Description :

1. Precision-machined and fully inspected at Hurricane factory .

2. Each rod bronze wrist pin bushings installed for increased wear resistance .

3. Oil hole finished at their small ends to provide additional lubrication and cooling .

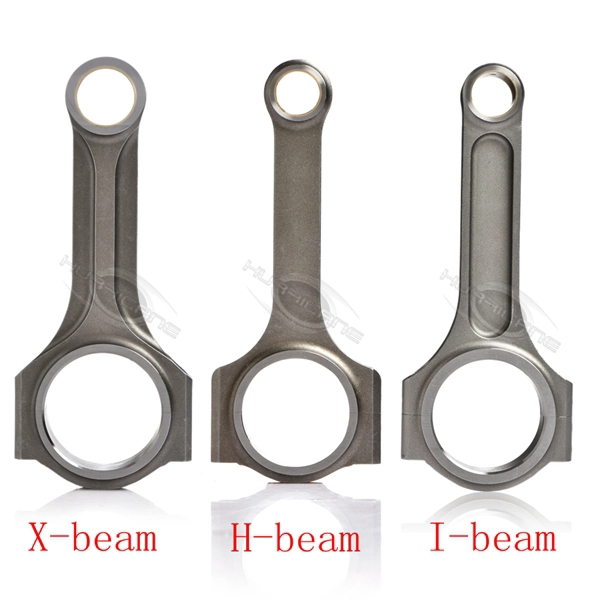

4. Various design is available, X-beam, H-beam , I-beam....

5. Heat-treated to 34-38HRC .

6. Lasering private label service provided .

7. Suits for Standard ARP 2000 rod bolts .

8. Custom service is available .

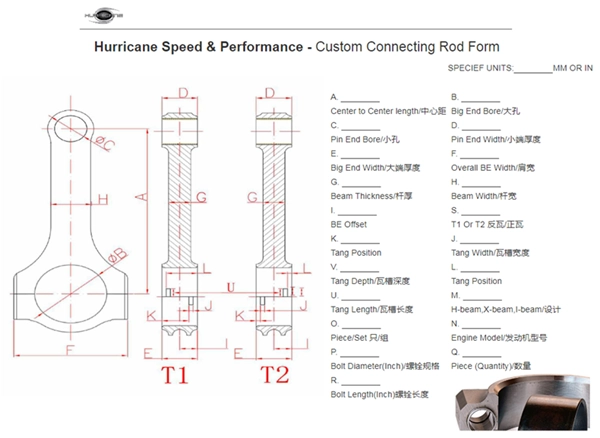

The Process Of Custom Conrods

If we OEM your style of connecting rod ,  please follow the steps as below: 

1). Providing detailed drawing , detailed dimenisons or sample , then we make detailed quotation .

2). If you agree our quote , then we start to design drawing .

3). Each other confirm the drawing and deal order details .

4). All details confirmed , 30% deposit required , then we make sample for you to test if necessary.

5). After the goods prepared , balance before shipping , and shipment arranged once payment is received .

Please feel free to contact us  and discuss more if any further question . 
