VW VR5 forged 4340 steel I-beam connecting rods
- Material : 4340 Steel
- Fully CNC machine
- Valid lead time
- Competitive Price
- Quality Assurance
- MOQ: 80pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 90-95 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords : VR5 Connecting Rods
- Forged 4340 steel rods
- I-beam performance rods for VR5 engine
- 164mm steel rods for VW engine
- Forged Conrods for V5 20V Turbo AQN, AZX

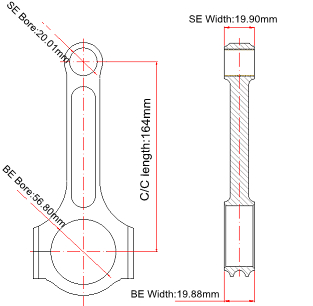

VW VR5 I-beam Connecting Rods Main Sizes
Brand: Hurricane | |
Center to Center Length: 164mm/6.457" | |
Big End Bore Diameter: 56.80mm/2.236" | |
Big End Width: 19.88mm/0.783" | |
Small End Bore Diameter: 20.01mm /0.788" | |
Small End Width: 19.90mm/0.783" | |
Beam Style: I-beam |
VW VR5 Connecting Rods Features
Connecting Rod Bolt Diameter | 5/16 " |
Approximate Connecting Rod Weight | xxxg |
Advertised Horsepower Rating | 1000hp |
Quantity | Sold as 5 pieces /set |
Material | Forged 4340 steel |
Connecting Rod Finish | Shot-peened, Polished |
Pin | Bronze wrist pin bushings |
Wrist Pin Style | Floating |
Cap Retention Style | Cap screw |
Weight Matched Set | Yes ,Balanced +/- 1g |
Magnafluxed | Yes |
Private Label | Yes ,available |
Custom design | Yes, accept |
VW VR5 Connecting Rods Description
Hurricane Speed and Performace is proud to make the highest quality connecting rods available for VW&Audi applications, at a reasonable price. This is accomplished through careful design with professional designers who have experience over 20years, machining, and strict quality control processes. With many of sets of VW and Audi connecting rods export to all over the world. We will become your best choice on performance rods supplier.
Rods Features
Forgings from 4340 Chrome Moly Steel
Heat Treatment for maximum strength, dimensional stability, and fatigue life.
Fully Machined and Shot Peened
I-beam Design
Tolerances as tight as +0.005
Use standard ARP2000 Rod or L19 Bolts
Magnaflux Inspected
Dimensionally Inspected
Packed in balanced sets within 2g
All this at a price point that yields market leading value
Combination tested to over 1000HP+
Rifle Drilling if necessary
All of our Forged 4340 steel rods are available in a rifle drilled option. Rifle drilling will put a small pathway through the center of the rod from the bearing to the wrist pin. This pathway allows pressurized oil from the rod bearing to feed extra oil to the wrist pin itself, causing less wear and friction between the rod and piston and increasing the life of the internals. We highly recommend this option in high horsepower and increased rev applications.
More features about Hurricane rods, please kindly explore here:
1. Hurricane Connecting Rods Features - 1
2. Hurricane Connecting Rods Features - 2
Rods Features
Forgings from 4340 Chrome Moly Steel
Heat Treatment for maximum strength, dimensional stability, and fatigue life.
Fully Machined and Shot Peened
I-beam Design
Tolerances as tight as +0.005
Use standard ARP2000 Rod or L19 Bolts
Magnaflux Inspected
Dimensionally Inspected
Packed in balanced sets within 2g
All this at a price point that yields market leading value
Combination tested to over 1000HP+
Rifle Drilling if necessary
All of our Forged 4340 steel rods are available in a rifle drilled option. Rifle drilling will put a small pathway through the center of the rod from the bearing to the wrist pin. This pathway allows pressurized oil from the rod bearing to feed extra oil to the wrist pin itself, causing less wear and friction between the rod and piston and increasing the life of the internals. We highly recommend this option in high horsepower and increased rev applications.
More features about Hurricane rods, please kindly explore here:
1. Hurricane Connecting Rods Features - 1
2. Hurricane Connecting Rods Features - 2
