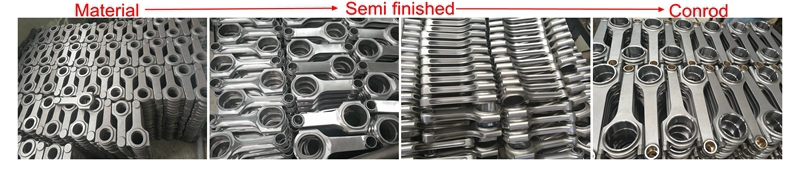

Hurricane High Performance connecting rods - Process of machining rods

Main rods includes Chevy,Ford, Harley Davidson, VW & Audi, Opel, Honda, Nissan,Subaru, Mitsubishi, Toyota, Isuzu, Suzuki, Mazda, Buick, BMW, Chrysler & Dodge, Fiat
Here in the following process of pictures are the 13 major operations undertaken in the production of Hurricane Speed&Performance:

Hurricane Factory VW Air Cooled Forged Steel Crankshaft Info

Hurricane factory manufactured in a wide variety of strokes with either VW or Chevy journals to fit your exact engine configuration. All of hurricane ...

Hurricane Connecting Rod Features - Various Beam Designs

With many years experience of designing, developing , engineering and manufacturing in the connecting rods fields, Hurricane has ability to handle different customers needs on connecting rods designs . Except connecting rods shoulder and small end, Hurricane also can build various connecting rods beam style .

4340 STEEL, TITANIUM AND ALUMINUM CONNECTING RODS

Weight. Strength. Balance. When it comes to rod selection, which is more important? Through advances in technology and automation, it is now possible to provide three kinds of connecting rods in one factory (Hurricane Speed and Performance), 4340 steel, Titanium and Aluminum.
Certifications
Contact us
Hurricane is manufacturer of high performance automotive engine parts. We specialize in the rotating assembly and related components; crankshafts, rods and pistons. All our products are developed and produced in our factory on advanced CNC machinery. Our staff of engineers and skilled craftsmen are dedicated to giving your company the edge in both quality and price. Browse our website or arrange a factory tour by emailing: marketing@hurricane-rod.com.cn . Contact Now

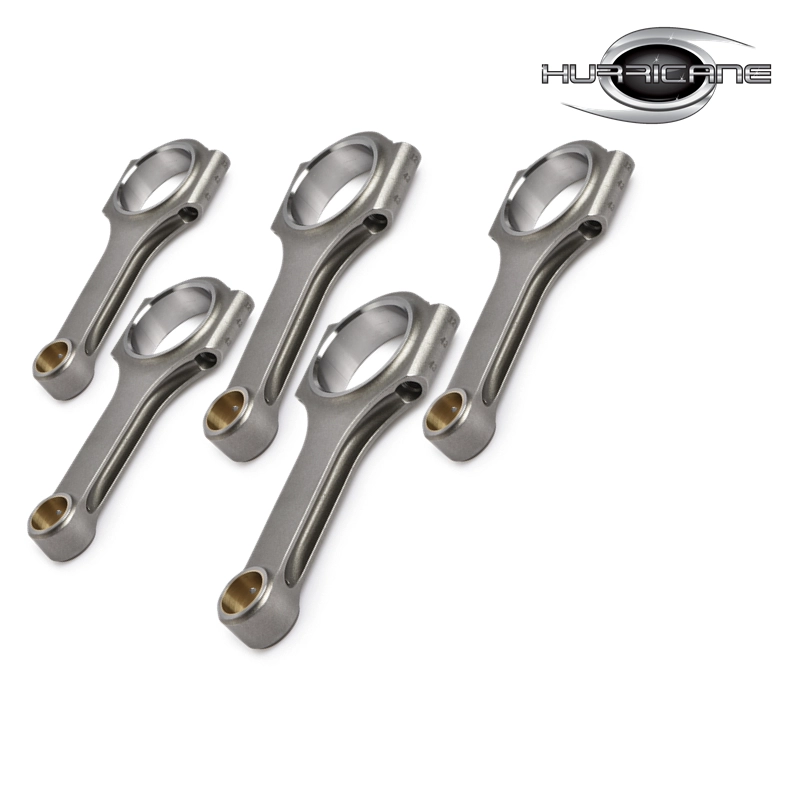

VW Golf / Jetta - 2.3 VR5 (AGZ, AQN) H-beam connecting rods

VW Golf / Jetta - 2.3 VR5 (AGZ, AQN) H-beam connecting rods

  • Forged 4340 Steel
  • Fully CNC machine
  • Competitive Price
  • Valid lead time
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  Connecting rod Seat VW 2.3 V5 / AGZ / AQN
  •             Competition forged conrod VW Golf V5 - Hurricane Speed and Performance
  •             VW Seat AUDI 2.3 20v Vr5 V5 Golf PASSAT (std) Con Rod
  •             VW 2.3 VR5 Hurricane H-Beam Con-Rods
  •             Forged 4340 steel 164 x 20mm Forged Rods for VR5 Suppliers

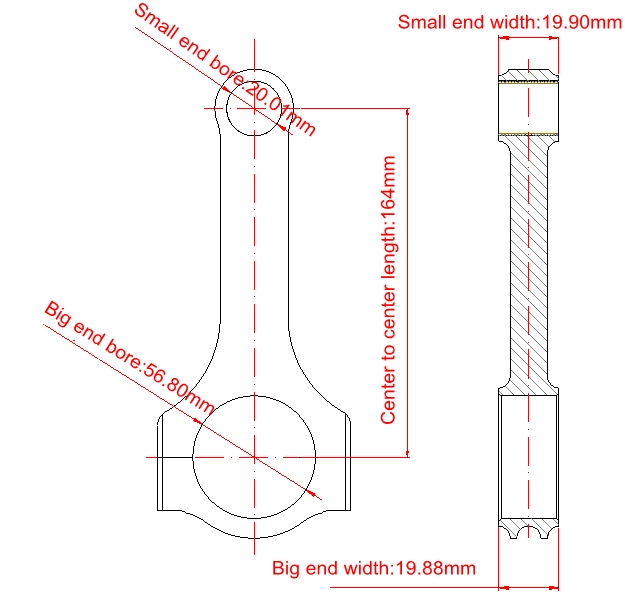

Connecting rod Seat VW 2.3 V5 / AGZ / AQN Main Sizes


 Brand: Hurricane
 Center to Center Length: 164mm/6.457"
 Big End Bore Diameter: 56.80mm/2.236"
 Big End Width: 19.88mm/0.783"
 Small End Bore Diameter: 20.01mm /0.788"
 Small End Width: 19.90mm/0.783"
 Beam Style: H-beam

VW Seat AUDI 2.3 20v Vr5 V5 Golf PASSAT (std) Con Rod Features


 Connecting Rod Bolt Diameter  5/16 "
 Approximate Connecting Rod Weight  xxxg
 Advertised Horsepower Rating  600hp
 Quantity  Sold as 5 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

VW 2.3 VR5 Hurricane H-Beam Con-Rods Description


Hurricane Speed and Performance is proud to manufacture the highest quality connecting rods available for all kinds of applications, at a reasonable price. This is accomplished through careful design, manufacturing, and quality control processes. With hundreds and hundreds of sets of various connecting rods, especially VW and Audi rods.
The material specification and treatment is equally important to producing a quality connecting rod with a high strength toweight ratio.  Our steel rods feature 4340 Chrome Moly steel for the highest possible fatigue life. The material is multi-stage heat treated to ensure the highest possible fatigue strength as well as gooddimensional stability. This feature ensures that our big ends stay round for a lifetime of bearing trouble free service.Following this pattern of high quality, ARP 2000 rod bolts are standard in all of our applications, which you could purchase with the best price from distributor or USA directly.



Features

One-piece Forgings from 4340 Chrome Moly Steel
Multi Stage Heat Treat for maximum strength, dimensional stability, and fatigue life.
Fully Machined and Shot Peened
H beam Design
Assemble standard ARP2000 Rod Bolts
Computer Optimized Design
Dimensionally Inspected
Packed in balanced sets +/- 1 gram.
All this at a price point that yields market leading value
Combination tested to over 600HP+
