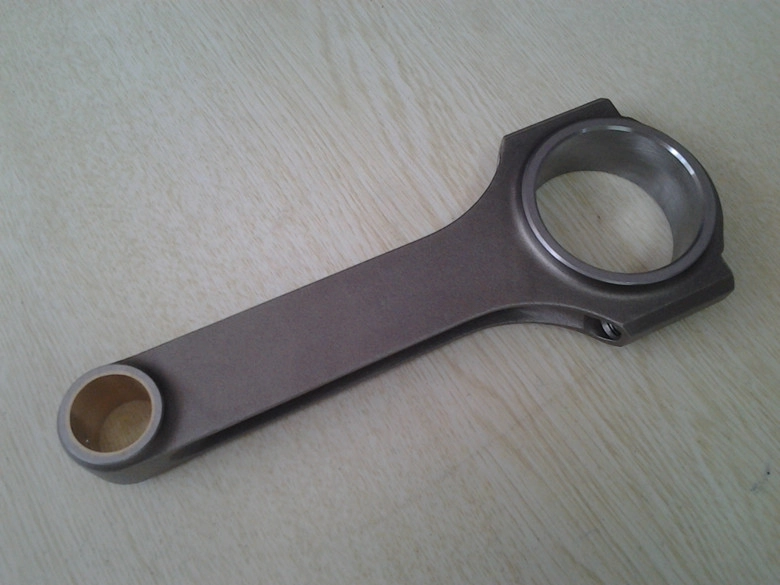

VW 2.8L 2.9L 3.2L R32 Golf MK3 VR6 164X20 I beam Forged Connecting Rods

VW 2.8L 2.9L 3.2L R32 Golf MK3 VR6 164X20 I beam Forged Connecting Rods

  • Material : 4340 Steel
  • Copper bush : QAL10-3-1.5
  • Dowel : 40Cr
  • Bolts : 3/8" or 5/16"
  • Competitive Price
  • Quality Assurance
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :  VR6 Connecting Rods
  •               Audi VW VR6 Connecting Rods 164mm
  •               forged 4340 Connecting Rods for VW VR6
  •               VW 3.2L R32, VR6 2.8L & 2.9L Connecting Rods
  •               164 x 20mm Forged Rods VR6


VW 3.2L R32 VR6 I beam Connecting Rods Main Sizes


 Brand: Hurricane
 Center to Center Length: 164mm/6.457"
 Big End Bore Diameter: 56.80mm/2.236"
 Big End Width: 19.88mm/0.783"
 Small End Bore Diameter: 20.01mm /0.788"
 Small End Width: 19.90mm/0.783"
 Beam Style: I-beam

Audi VW VR6 Connecting Rods Features


 Connecting Rod Bolt Diameter  3/8 " or 5/16 "
 Approximate Connecting Rod Weight  xxxg
 Advertised Horsepower Rating  1000hp
 Quantity  Sold as 6 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

VW VR6 2.8L & 2.9L Connecting Rods Description

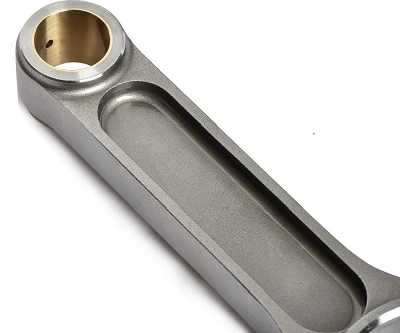

Forged 4340 Connecting Rods for VW VR6 are profiled for stroker clearance.I beam connecting rods are the common used as performance rods, I beam VW VR6 connecting rods are popular for track race engine builders, The side beam of the rods provide a good combination of light weight, tensile and compressive strength. to handle higher horsepower loads, the VR6 connecting rods are CNC machined to improve strength.




For added durability, Hurricane race spec Series Cap Screw Fasteners are used to secure the heavy-duty 2-rib doweled rod caps.  the 164 x 20mm Forged Rods VR6 can use both 3/8" and 5/16" connecting rods bolts,  Hurricane race spec 5/16-1.500" bolts torque is 45N*m,  Hurricane race spec 3/8-1.600" bolts torque is 75N*m. Our connecting rod bolts PSI could reach 211,829. you can check the test report at our certification page.

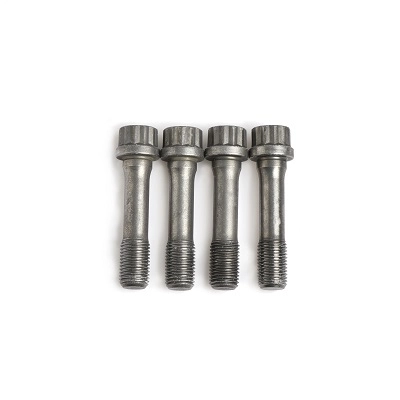

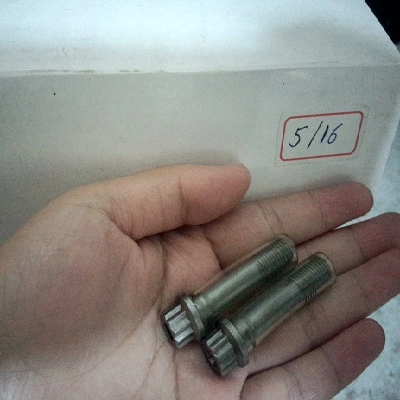

Note: hurricane 3/8 race spec connecting rod bolts.                                  Note: Hurricane 5/16 race spec connecting rod bolts.



Hurricane also have H beam design for VW 2.8L 2.9L 3.2L R32 Golf MK3 VR6 engine application. click here to view H-Beam Connecting Rods (6 PCS) for VW VR6 Engine 6.457"(164 mm) Rod Length




Hurricane also offer other kind of design, please view our news page for more details and useful informations.

Custom connecting rod are acceptable at Hurricane, If you do not find what you want through our website, please feel free to contact us, Together we can build the connecting rods for your dream car.
