Toyota 22R 22RE X-Beam 4340 Forged Chrome-moly Steel Connecting Rods

Toyota 22R 22RE X-Beam 4340 Forged Chrome-moly Steel Connecting Rods

  • Material: forged 4340 Steel
  • 100% CNC Machine
  • Toyota 22RE Engine
  • X-beam Design
  • Superior strength
  • MOQ: 100pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 90-95 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :Toyota 22RE Connecting Rod
  •           Toyota 22RE X-Beam forged connecting rods
  •           Toyota 22re Connecting Rod Set 147.80mm CC Length

Toyota 22RE X-beam Connecting Rods Main Sizes

 Brand: Hurricane         
 Center to Center Length: 147.80mm/5.820"
 Big End Bore Diameter: 56mm/2.205"
 Big End Width: 27.74mm/1.092"
 Small End Bore Diameter: 21.97mm /0.865"
 Small End Width: 27.74mm/1.092"
 Beam Style: X-beam

Toyota 22RE X-beam Connecting Rods Features

 Connecting Rod Bolt Diameter  3/8"
 Approximate Connecting Rod Weight  XXX
 Advertised Horsepower Rating  700hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept


Products Description :

1. Made from premium 4340 Chrome Moly Steel

2. Designed for high horsepower engines

3. Fully finished and processed by CNC machine

4. 2-Piece forging for greater strength

5. Packaged in balanced per set: end to end +/- 1 gram

6. Heat treated to HRC 34-38

7. Shot Peened for improved fatigue life

8. All forging are X-rayed, sonic tested and magnafluxed

9. Come with high quality bronzed bushing and dowels

10. All big and small ends are finished with SUNNEN honing machine

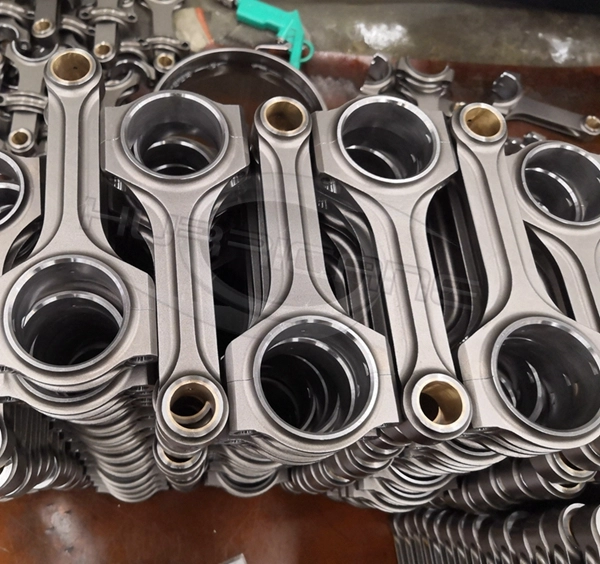

Toyota 22RE Finished X-beam Connecting Rods Picture

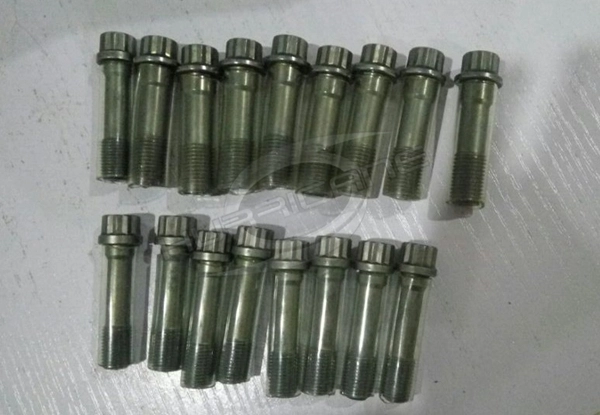

Hurricane Connecting Rods Bolts Picture 



So far , Hurricane customers spread in more than 25 countries , include America, Canada , Australia ,Germany, France, Italy , UK , Sweden ,Polan , Greece, Ireland ,Norway, Spain, Malaysia ,Thailand.... 



If  you can not find the connecting rod which you need on our website , please feel free send email tomarketing@hurricane-rod.com.cn or leave massage for us online .
