Set of 6, BMW 92mm forged piston, 22mm wrist pin

Fast Shipping Low Price Guarantee

Tech Advice Easy Returns

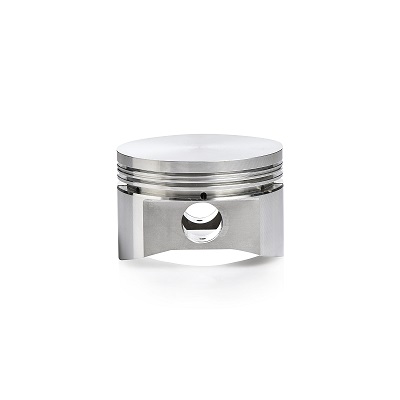

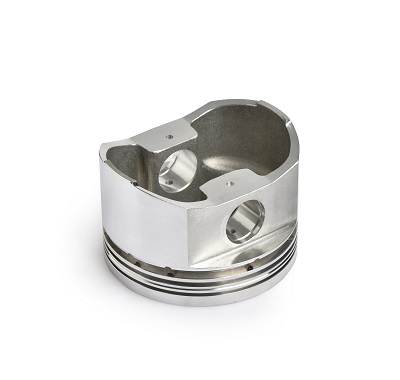

Forged Pistons, Hurricane, Flat, 92MM Bore BMW

Set of 6

Part Number: BMW-00301

Estimated lead time: 35-45days

Display Parameters Contact Now

Product Details

Brand: Hurricane
Part Number: BMW-00301
Engine model: BMW
Material: 4032
Bore: 3.622 in/ 92mm
Total Height: 2.386 in/ 60.6mm
Pin Diameter: 0.866 in/ 22mm
Compression Height: 1.378 in/ 35mm
Weight:380g
Piston Style: Flat top

Wrist Pin Included: No
Piston Ring: 1.50mm x 2.00mm x 4.00mm

Piston Rings Included: No
Quantity: Sold as a set of 6

bmw forged piston description

Hurricane Forged Aluminum Racing Pistons for BMW are made from 4032 forgings.

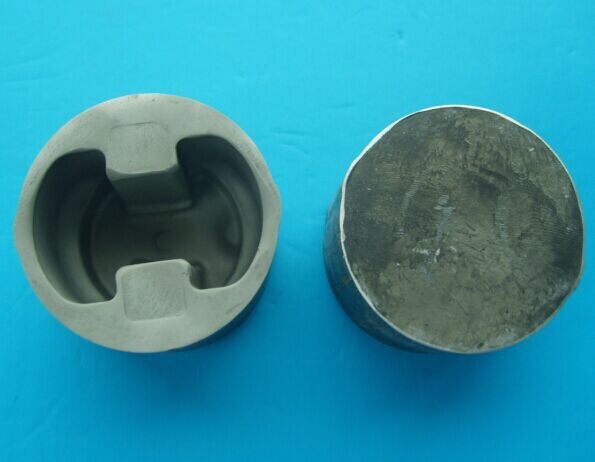

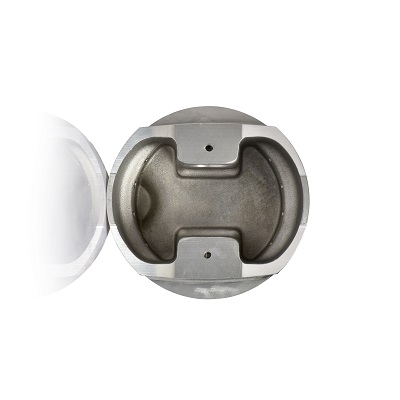

Although The piston inner side is forging surface not finish machining, we still make it very smooth.

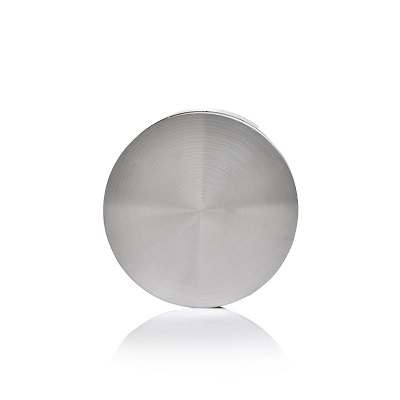

This BMW 92mm piston top are designed to flat to achieve a higher CR.

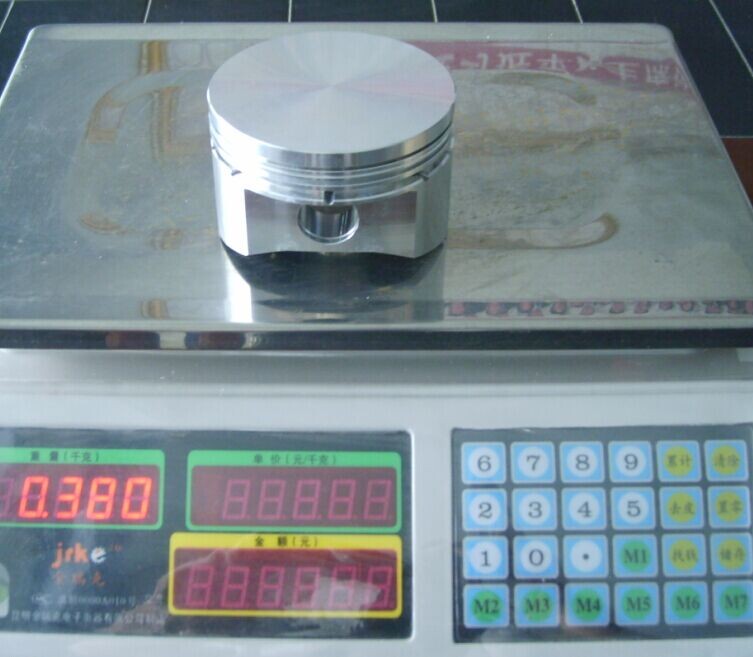

92mm forged piston Weight

Note: The BMW forged piston are 380g per piece, light weight designed for high end application.

Hot Tags : Hurricane pistons Custom pistons HUR2-003H3622 BMW forged piston flat piston custom forged piston Forged Aluminum Racing Pistons
