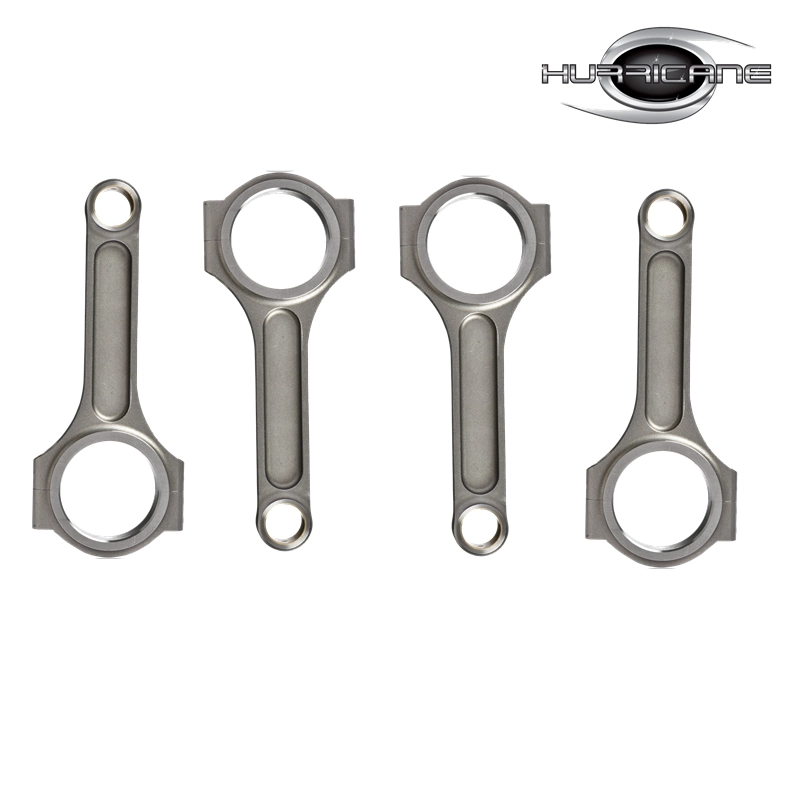

Set of 4, I beam Connecting rods For Honda F20B
- Material: Forged 4340 Steel
- Copper bush: QAL10-3-1.5
- Dowel: 40Cr
- Bolts: 3/8"
- Competitive Price
- Quality Assurance
- MOQ: 80 pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal , Western Union
- Keywords: F20B I beam rod set
- Honda F20B Rods
- Honda F-Series conrods
- Forged Honda F20B 5.709 Conrod
- Hurricane Honda performance conrods factory
- Product Details

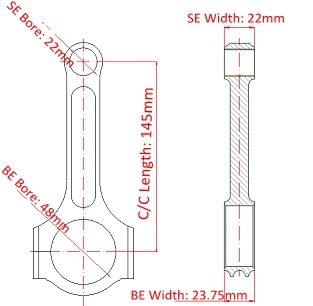

Honda F20B Rods Main Sizes
| Brand: Hurricane |  |
| Center to Center Length: 145mm/5.709" | |
| Big End Bore Diameter: 48.00mm/1.890" | |
| Big End Width: 23.75mm/0.935" | |
| Small End Bore Diameter: 22.00mm /0.866" | |
| Small End Width: 22.00mm /0.866" | |
| Beam Style: I-beam |
Forged Honda F20B 5.709 Conrod Features
| Connecting Rod Bolt Diameter | 3/8" |
| Approximate Connecting Rod Weight | ~ |
| Advertised Horsepower Rating | 750hp |
| Quantity | Sold as 4 pieces /set |
| Material | Forged 4340 steel |
| Connecting Rod Finish | Shot-peened, Polished |
| Pin | Bronze wrist pin bushings |
| Wrist Pin Style | Floating |
| Cap Retention Style | Cap screw |
| Weight Matched Set | Yes ,Balanced +/- 1g |
| Magnafluxed | Yes |
| Private Label | Yes ,available |
| Custom design | Yes, accept |
F20B I beam Rod Set Descripition
Hurricane Honda F20B I beam connecting rods are manufactured using the highest quality one piece 4340 forged steel forgings and have been designed to high horsepower applications. Our Forged Honda F20B 5.709 Conrod will be checked by ARP rod bolts and installed with silicone bronze wrist pin bushes to ensure reliability. These connecting rods are capable of 185 horsepower per rod. Hurricane factory can offer various Honda F-series conrods, like F20C, F22, F22C and F23.

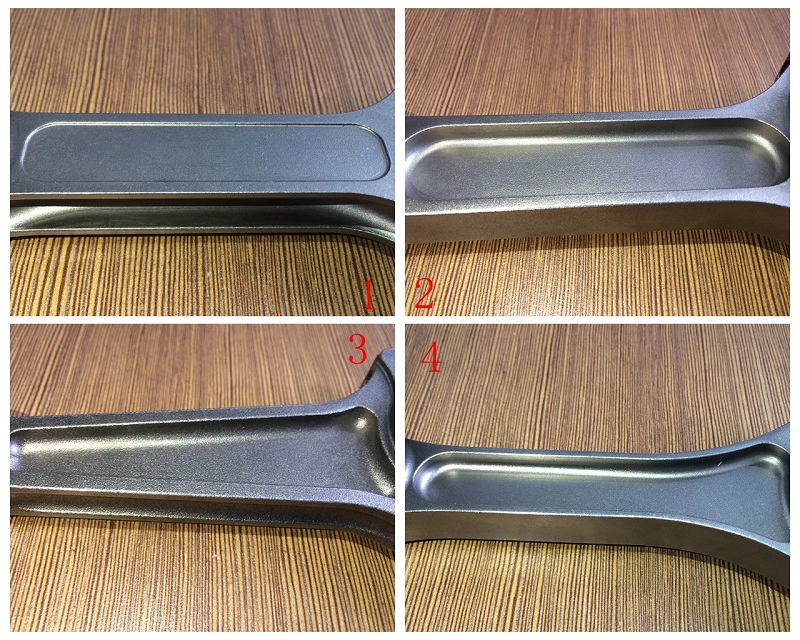

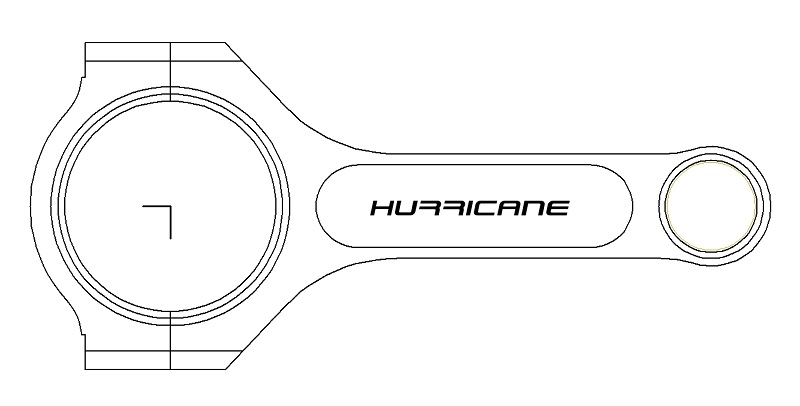

Hurricane also could offer various kinds of beam design, just show some of our I beam design picture at below, for more info, please check: Hurricane Connecting Rod Features - Various Beam Designs
All of our hurricane connecting rods could laser-etched “Hurricane” logo or customer logo for authenticity, if you need any futher info, welcome to contact hurricane team..

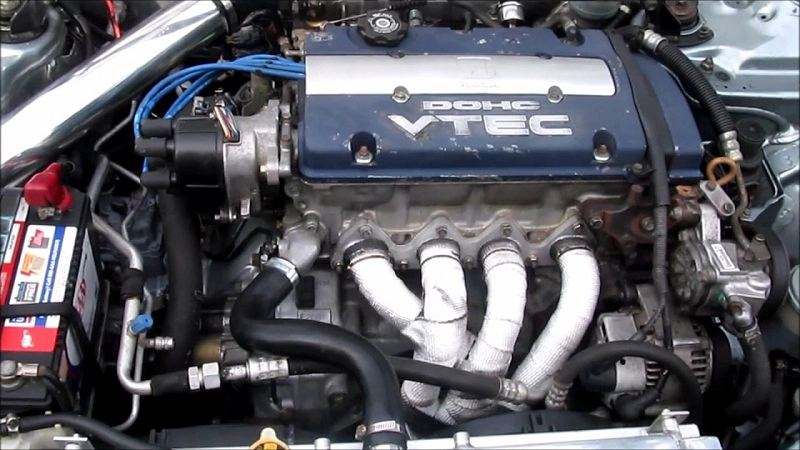

1995 Honda Accord F20B Engine Picture
Note: picture from Youtube
