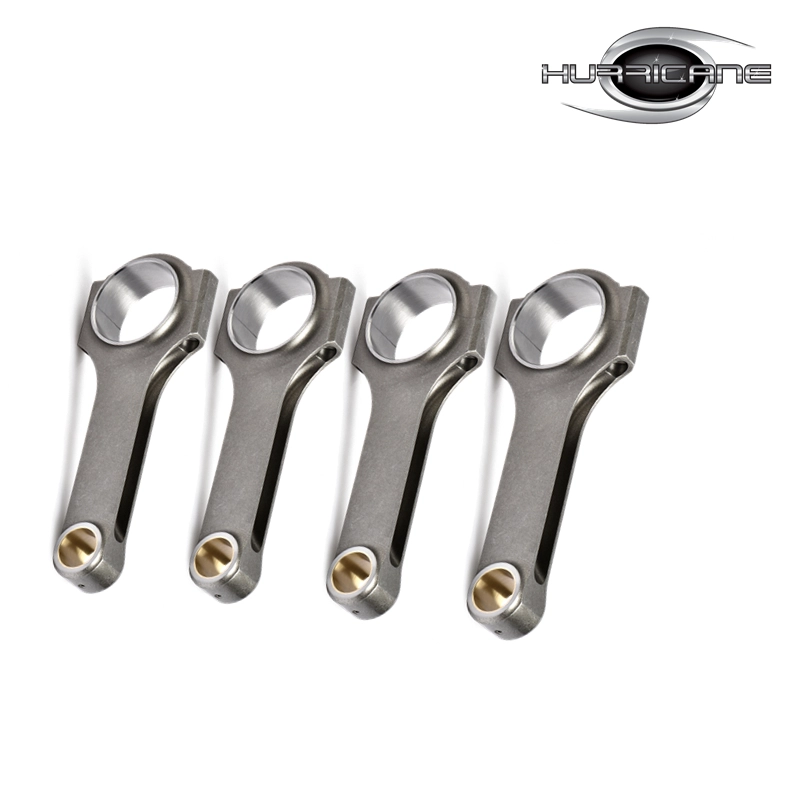

Set of 4, H-beam Honda D17A Civic connecting rod for sale
- Forging 4340 steel
- Fully CNC machine
- Weight matched to +/- 1 grams
- Neutral package
- Competitive Price
- Quality Assurance
- MOQ:100pieces
- Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
- If the goods are not in stock , the delivery time is 60-65 days .
- Payment Terms : T/T , Paypal
- Keywords:D17A Connecting Rods
- 4340 Chrome-Moly Connecting Rods
- Steel Connecting Rod Honda Civic D17A, D17
- 2001–2005 Honda Civic (Japan, Canada)
Brand: Hurricane
Engine: HONDA / ACURA D17A Civic
Part Type: Connecting Rods
Center to Center Length: 137.01mm/5.394"
Big End Bore Diameter: 48.01mm/1.890"
Big End Width: 19.81mm/0.780"
Small End Bore Diameter: 19mm /0.748"
Small End Width: 21.59mm/0.850"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 485g/piece
Advertised Horsepower Rating: 700hp
Quantity: Sold as 4pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
Engine: HONDA / ACURA D17A Civic
Part Type: Connecting Rods
Center to Center Length: 137.01mm/5.394"
Big End Bore Diameter: 48.01mm/1.890"
Big End Width: 19.81mm/0.780"
Small End Bore Diameter: 19mm /0.748"
Small End Width: 21.59mm/0.850"
Beam Style: H-beam
Connecting Rod Bolt Diameter: 3/8"
Approximate Connecting Rod Weight: 485g/piece
Advertised Horsepower Rating: 700hp
Quantity: Sold as 4pieces /set
Material: Forged 4340 steel
Connecting Rod Finish: Shot-peened, Polished
Pin: Bronze wrist pin bushings
Wrist Pin Style: Floating
Cap Retention Style: Cap screw
Weight Matched Set: Yes ,Balanced +/- 1g
Magnafluxed: Yes
Private Label: Yes ,available
Custom design: Yes, accept
D17A Engine
Found in:
2001–2005 Honda Civic (Japan, Canada)
Displacement : 1,668 cc (101.8 cu in)
Bore and Stroke: 75 × 94.4 mm (3.0 × 3.72 in)
Compression : 10.5:1
Power : (lean burn) 120 hp (85.8 kW, 120 ps) at 4,900 rpm; 140 hp (96.9 kW, 140 PS) at 6,750 rpm
Torque : 160 N⋅m (118 lb⋅ft) at 4,800 rpm
Rev-limiter : 7,200 rpm
Valvetrain : SOHC (4 valves per cylinder)
Fuel Control : OBD-2 MPFI
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/be/20180912142412051.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/96/20180912142704758.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/af/20180912143420474.jpg.webp)
Found in:
2001–2005 Honda Civic (Japan, Canada)
Displacement : 1,668 cc (101.8 cu in)
Bore and Stroke: 75 × 94.4 mm (3.0 × 3.72 in)
Compression : 10.5:1
Power : (lean burn) 120 hp (85.8 kW, 120 ps) at 4,900 rpm; 140 hp (96.9 kW, 140 PS) at 6,750 rpm
Torque : 160 N⋅m (118 lb⋅ft) at 4,800 rpm
Rev-limiter : 7,200 rpm
Valvetrain : SOHC (4 valves per cylinder)
Fuel Control : OBD-2 MPFI
Hurricane finished H-beam race rods fits 1.7L Honda Civic D17A engine. these rods are forged from high-strength 4340 alloy and rated to 500+ horsepower and through the test, shot-peen improved fatigue life and feature bronze wrist pin bushings. Weight matched to +/- 1 grams, Perfectly round big and small ends. Some parts of process show:

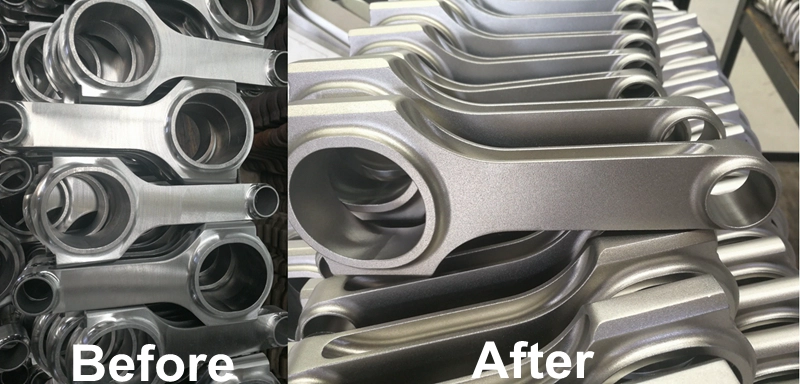

1. shot peening
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/be/20180912142412051.jpg.webp)

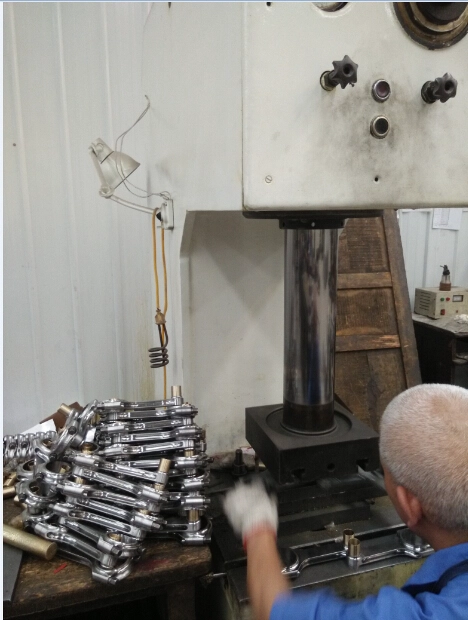

2. Press bronze wrist pin bushings
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/96/20180912142704758.jpg.webp)

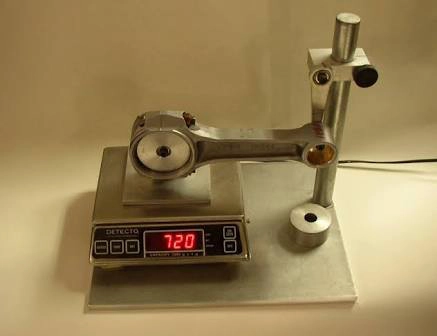

3. Measure big end pin weight
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/88/images/af/20180912143420474.jpg.webp)
Visit more Honda engine performance rods. You may also find The Rod FAQ and Rods custom pages helpful
