Set of 4, Chrysler Dodge SRT-4 I beam 5.945" connecting rods

Set of 4, Chrysler Dodge SRT-4 I beam 5.945" connecting rods

  • Vehicle: Chrysler Dodge SRT-4
  • Material : 40CrNiMoA (4340 Steel)
  • Bolts : 3/8"
  • Competitive Price
  • High Performance
  • I-beam shape
  • MOQ: 80pieces
  • Delivery Time: If the goods are in stock , the delivery time is 1-3 days.
  •              If the goods are not in stock , the delivery time is 60-65 days .
  • Payment Terms : T/T , Paypal , Western Union
  • Keywords :Connecting Rod Dodge Neon SRT-4
  •           SRT-4 / PT Cruiser performance conrods
  •           I beam Connecting Rods Dodge SRT-4
  •           Heavy Duty SRT-4 connecting rods
  •           Chrysler Dodge SRT-4 I beam 5.945" connecting rods

Connecting Rod Dodge Neon SRT-4 Main Sizes

 Brand: Hurricane*
 Center to Center Length: 151mm/5.945"
 Big End Bore Diameter: 53mm/2.087"
 Big End Width: 25.7mm/1.012"
 Small End Bore Diameter: 22.00mm/0.866"
 Small End Width: 25.7mm/1.012"
 Beam Style: I-beam


SRT-4 / PT Cruiser Performance Conrods Features

 Connecting Rod Bolt Diameter  3/8 "
 Approximate Connecting Rod Weight  xxx
 Advertised Horsepower Rating  750hp
 Quantity  Sold as 4 pieces /set
 Material  Forged 4340 steel
 Connecting Rod Finish  Shot-peened, Polished
 Pin  Bronze wrist pin bushings
 Wrist Pin Style  Floating
 Cap Retention Style  Cap screw
 Weight Matched Set  Yes ,Balanced +/- 1g
 Magnafluxed  Yes
 Private Label  Yes ,available
 Custom design  Yes, accept

I beam Connecting Rods Dodge SRT-4  Description

Hurricane is proud to offer our proprietary 750 HP Chrysler Dodge SRT-4 I beam 5.945" connecting rods. Hurricane connecting rods are forged from 4340 Chrome Moly steel and CNC machined to our strict tolerances.  We design our connecting rods using the latest Solidworks 3D and CAD software.  Each set of rods is sold in weight-matched sets within +/-1 grams.  This combination of stringent material selection, quality components, and precise tolerances ensures that you are offered one of the highest quality connecting rods on the market.



Note: Hurricane I beam connecting rods dodge srt-4 are ready for honing, every piece of Heavy Duty SRT-4 connecting rods will be honed to use size by Sunnen Honing Machine.

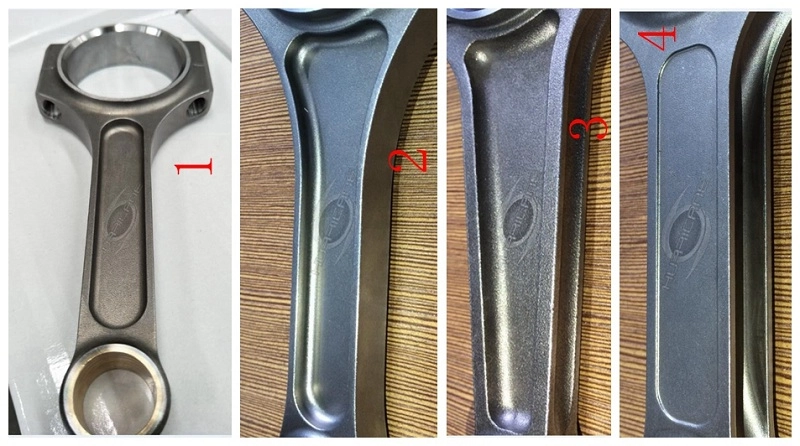

More I beam design choice, please view picture below or check: Hurricane Connecting Rod Features - Various Beam Designs



Any question or concerns, please feel free to contact Hurricane sales team at: marketing@hurricane-rod.com.cn

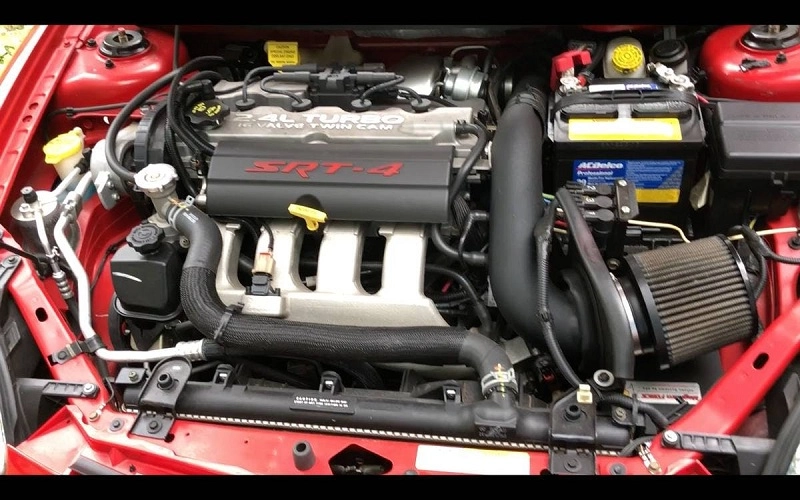

Dodge Neon SRT-4 Engine


Note:Picture from The Drive.
